Blister packing cutting machine

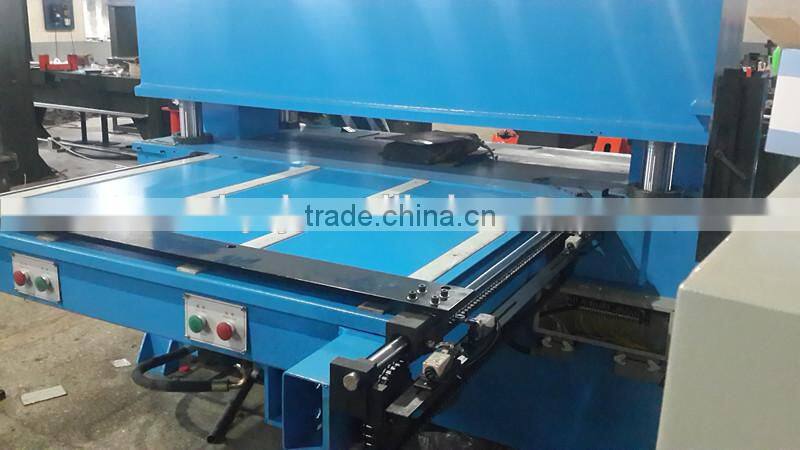

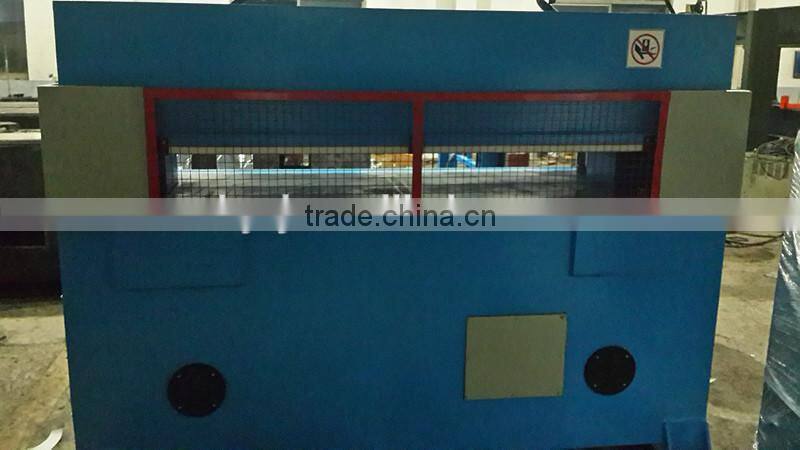

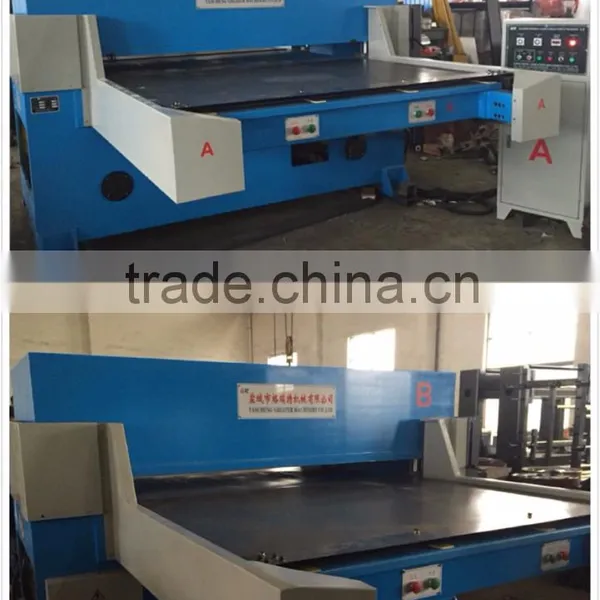

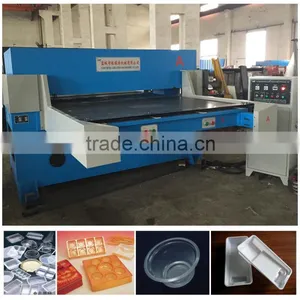

XCLP3-150 Auto-Feeding Precise 4-column Hydraulic Plane Cutting Machine
Usage and characteristics:

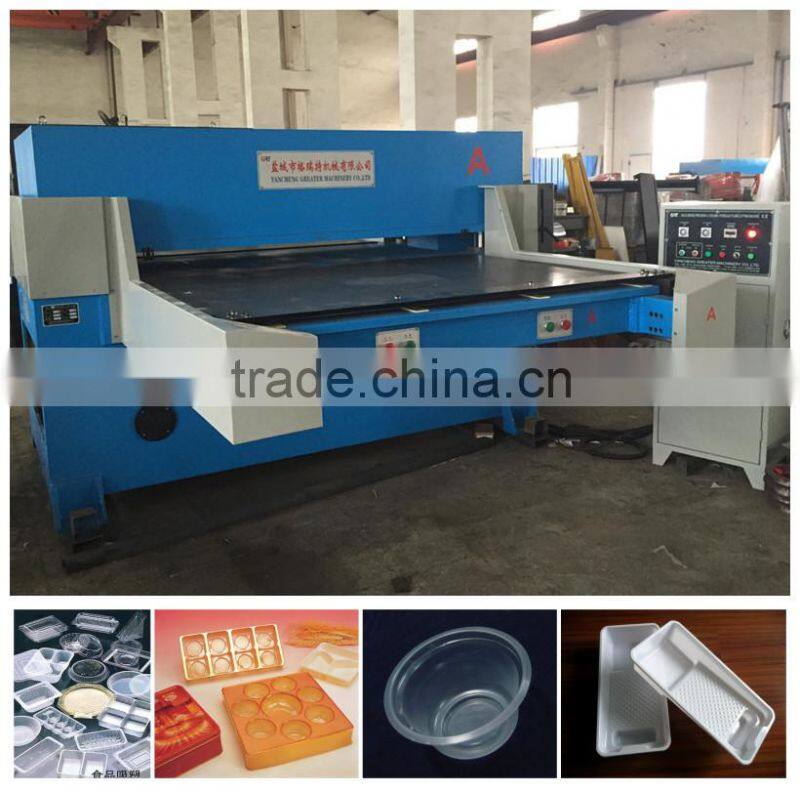

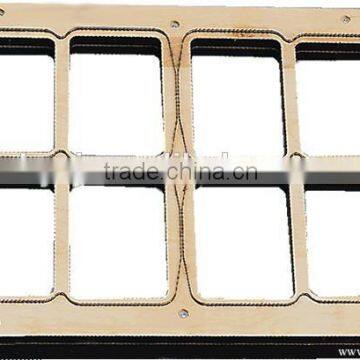

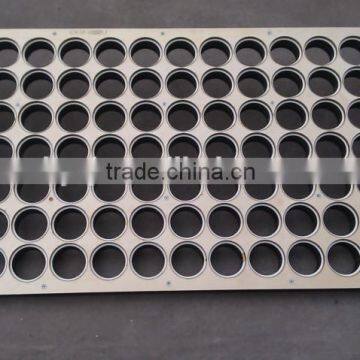

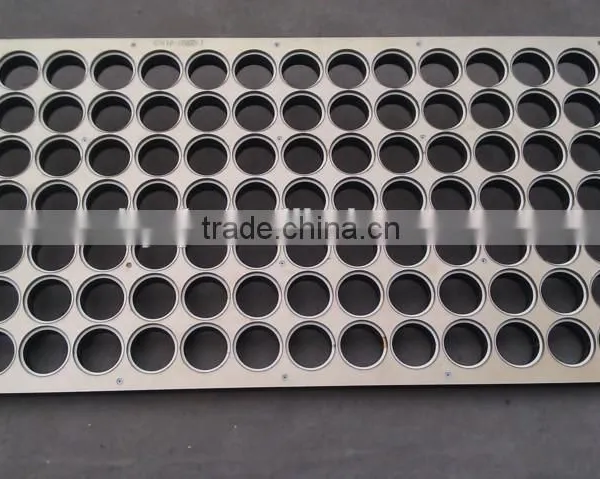

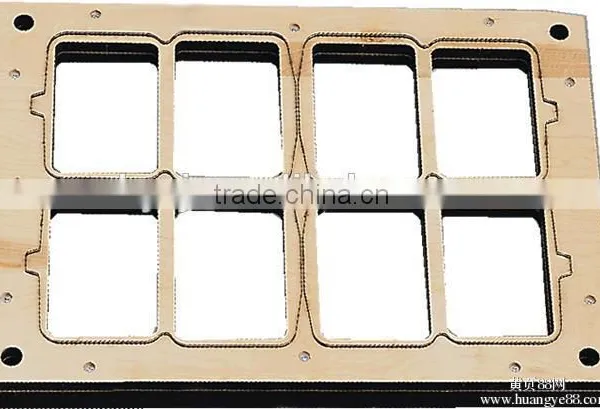

1. The machine is applicable for whole-broken or semi-broken operation of various

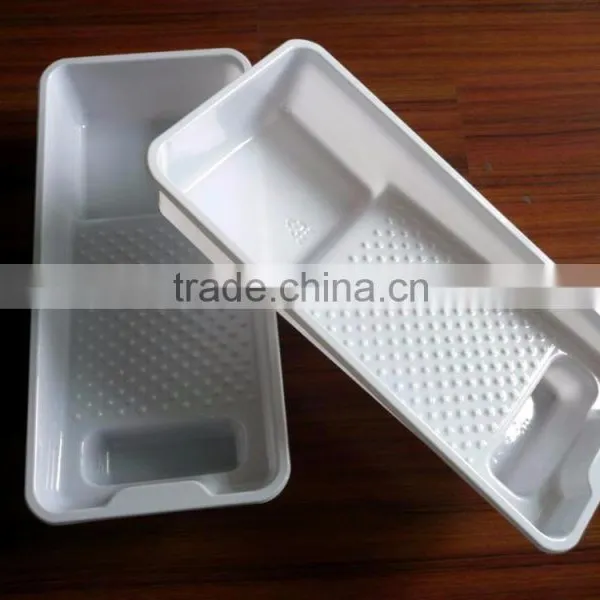

nonmetal slices materials by die cutter. For example: such industries as plastics
packing, pearl cotton packaging, rubber and printing etc.
2. "Mitsubishi" PLC controlled, with simple, prompt and accurate operation.

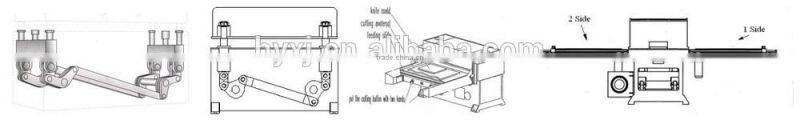

3. The main machine adopts double oil cylinder, double-crank connecting rod balancing,
four-column precise guiding mechanism, which can guarantee that the cutting
depth at every cutting position is same.
4. The pressing board carries out slow cutting when it presses downward to contact
the die cutter, which can make that there is no size error between the uppermost
layer and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees the service life
and precision of machine.

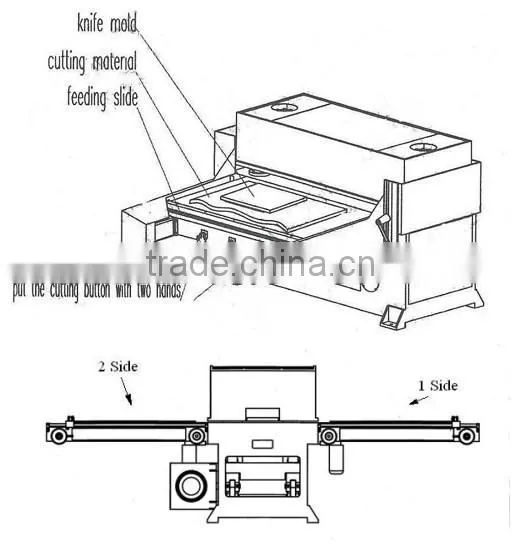

6. Single-side or double-side automatic feeding system can be allocated to enhance
the production efficiency of machine twice or thrice.

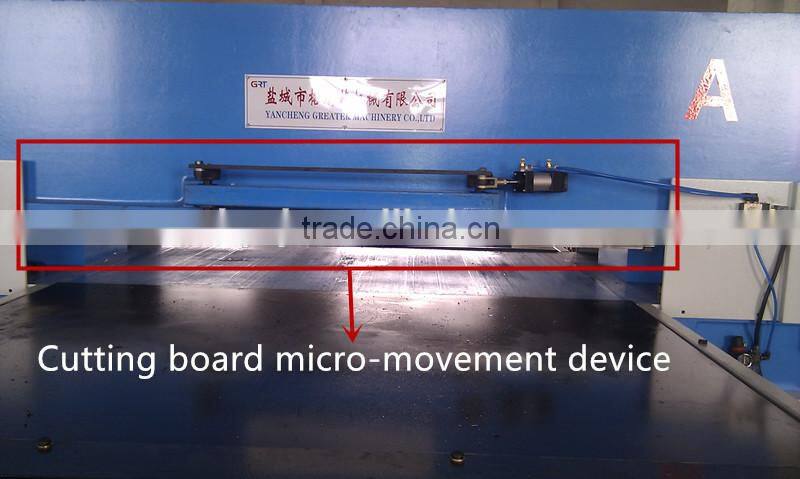

7. Cutting board micro-movement device can be allocated to evenly consume the cutting
board and save cost.
8. Die cutter pneumatic clamp device can be allocated to make the replacement of
die cutter convenient and prompt.
Optional:
1. Single-side and double-side automatic feeding systems;
2. Cutting board micro-movement device;
3. Die cutter pneumatic clamp device.
Main technical parameters:
Model |
XCLP3-40 |
XCLP3-50 |
XCLP3-60 |
XCLP3-80 |
XCLP3-100 |
XCLP3-150 |
XCLP3-200 |
|||||||||
Max cutting force |
40T |
50T |
60T |
80T |
100T |
150T |
200T |
|||||||||
Tension distance |
50-200mm/50-245mm |
|||||||||||||||
Cutting area(mm) |
1600×610
|
1600×800
|
1600×900
|
1600×900
|
1600×900
|
1600×1000
|
1600×1000 |
|||||||||
Motor power |
3KW |
4KW |
5.5KW |
7.5KW |
7.5KW |
11KW |
15KW |
|||||||||
Electric Supply Voltage |
3x440/415/400/380/220/200V, 50/60 Hz |
|||||||||||||||
Machine weight (KG) |
2000 |
3200 |
4200 |
5200 |
6600 |
7500 |
9500 |
|||||||||
REMARK:MY FACTORY CAN MAKE THE MACHINE ACCORDING YOUR ORDER,FOR EXAMPLE,THE CUTTING FORCE,CUTTING AREA,FEEDING DEVICE,SPECIAL STROKE ETC.
