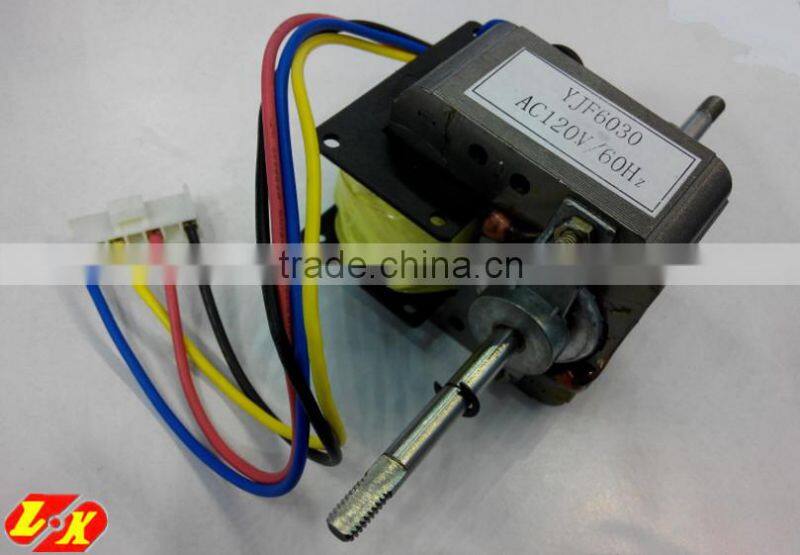

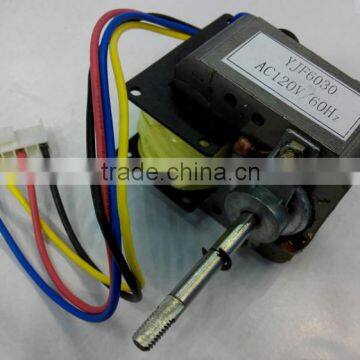

Customized Versions of YJF6030 shade pole motor CE UL Rohs PSE approved
1. Encoder possible.
2. Internal capacitors or varister.
3. Voltage and speed adjustment by winding change.
4. Modification of shaft length.
5. Modification of shaft configuration (flat, hole, knurling, rear shaft etc.)
6. Assembly of gears, vibrators, pulley, etc.
7. Ball bearing available.
8. Low-cogging torque design.
9.Sample free.
Product Description
Company Information
25 years experience and our company has obtained the International Quality Management System Authentication of ISO9001:2008, (CCC), ROSH, CE, UL, CSA, PSE, SAA approved.
More detail welcome to contact us:
1.Rated Voltage:AC 230V constant between motor terminals AC 230V
2.Operating Voltage Range:208-240V AC constant between motor terminal 208-240V
3.Direction of Roation:CW
4.Operating Temperature Range:-20°c—+80°c
5.Storage Temperature Range:-40°c—+100°c
Standard Test Conditons
1.Motor Positio:Motor to be held with shaft horizontally
2.Power Supply:Regulated power supply which assures unquestionable measurement
3.Direction of rotation:CW when view from output side
Electrical characteristics:
1.Rated load Current:1.3A±10%(with plastic fan)
2.Rated load Power300W±10%(with plastic fan)
3.Rated Load Speed:15000rpm±10%(with plastic fan)
4.Insulation Voltage:5 mA max.while AC2500V between motor terminal and motor metal housing 1 SEC
Mechanical Characteristics
1.External Appearance:No remarkable deformation or superfisal defects to be observed by visual check,fastened parts to be fixed firmly
2.Shatf End Play:0.5mm Max
3.Vibration:To be set up with mutual consent
Life Test
1.Continue running:Uninterrupted running
2.Stop Life Test:Test will be stopped after 60 days continue running and check the motor and the bushig to see any abnornal wearing.Motor life 10000 Hrs Min
