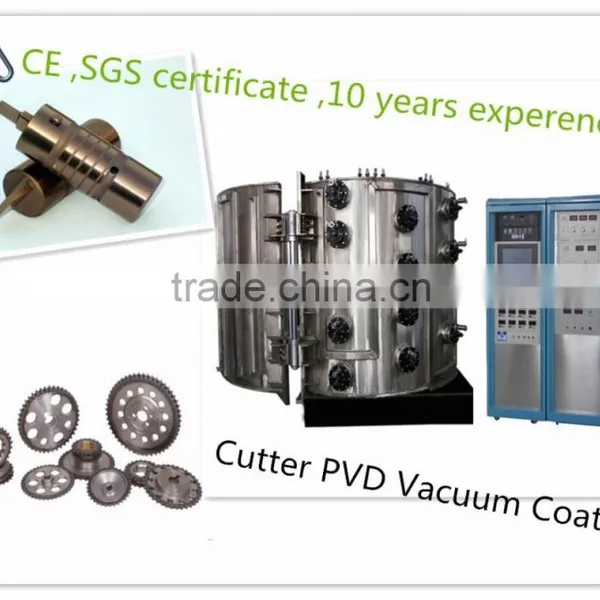

Help CenterCutter PVD Vacuum Coating Machine
Related Products
-
Aluminum ,Silver Vacuum Coating Mirror Manufacturing MachineNegotiableMOQ: 1 Set -
Vacuum Coating Machine for Ceramics,platicUS$ 50,000 - 85,000MOQ: 1 Set
-
Vacuum Roll Coating MachineUS$ 100,000 - 200,000MOQ: 1 Acre
-
Vacuum Magnetron Sputtering Coating MachineUS$ 1,000,000 - 2,000,000MOQ: 1 Acre
-
Electroplating Machine/vacuum Coating Machine/PVD Coating Machine/vacuum Metallizing MachineUS$ 850,000 - 850,000MOQ: 1 Set
This machine is widely used in household appliances, clocks, lamps, crafts, toys, light reflector, phone keypad outer covering and instrumentation, plastics, glass, ceramics, tiles and other decorative film and functional film. Our company's magnetron sputtering machine has many advantages such as good controllability and repeatability for film thickness; strong adhesion between substrate and film; making special material film and let different materials sputtering on products’ surface at the same time, then will make mixed film, compound film, TiN imitation gold film; high purity films etc.

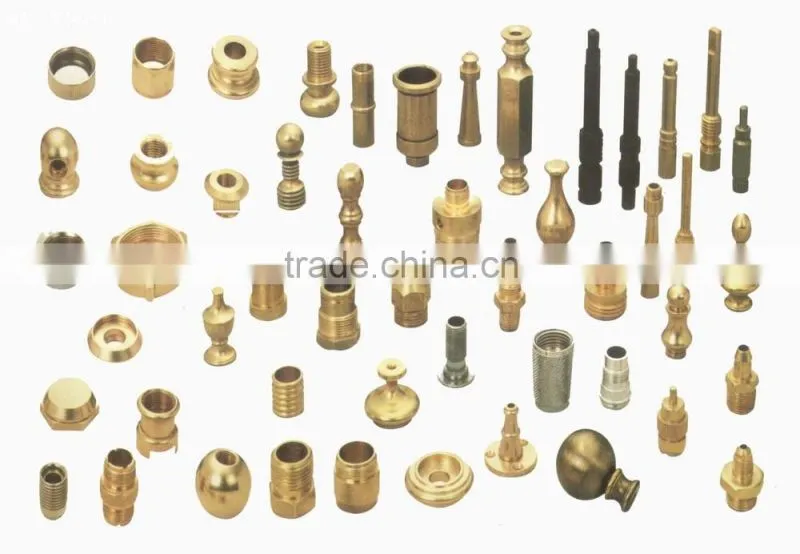

The workpiece can be three-dimensional motion, raising uniform of film. The whole automatic processing control. Can be coated TiN, TiC, TiCN, TiAlN, TiAlCN, TiCrN, TiCrCN, TiAlCrN, multilayer superhard film, used in Precision Mould industry (red bars the standard mold, mold, etc. ), tools industry (drill, hard alloy, milling cutter, broaches, head), automobile (piston, piston rings, alloy wheels, etc. ). New of Hollow cathode machine is particular apply to coating superhard film of broach and gear cutter.
High quality ,strong Plywood Cases packaging and transportation by sea.
Before-sales:
Our engineers are ready to provide custom made design and recommendation for each customer's case.
We provide professional consulting service for PVD coaters and lines.
We also have set up good relations with the suppliers of relative consumables and parts for your needs.
After-sales
We will send the engineers to your place for installation, fine tune and for operation training.
We will provide troubleshooting service .
The warranty period of the machine is one year.
We will contact you to ask for about the conditions of the machine in periodically.
We also provide the service for further extension on your existing machine.
Qingdao UBU Vacuum Equipments Corp., Ltd. is a professional engaged in various high vacuum Ion plating equipment manufacturing sales, vacuum unit vacuum pump sales, PVD coating process, vacuum equipment accessories sales and upgrading of old and new high-tech enterprises, the company can configure the multi-arc based on user demand target, rotating magnetic target IF twin sputtering target, unbalanced magnetron sputtering target and the arc column, large flat arc, multi-target can be achieved in a room and can be equipped with advanced computer automatic control system, the whole process is automatic control.
Hello sir/mis:
When you are going to send us an inquiry, in order to design the most appropriate machine for your project, please answer the following questions in your letter:
1. What is your product, its material and application
2. What is the possible max. dimension of your product
3. What is your desired productivity each batch.
4. What film do you want to coat on your products.
5. What environment do your products be used.
The answers to the above question will help us a lot on designing or do the recommendation.
Send Inquiry to This Supplier
