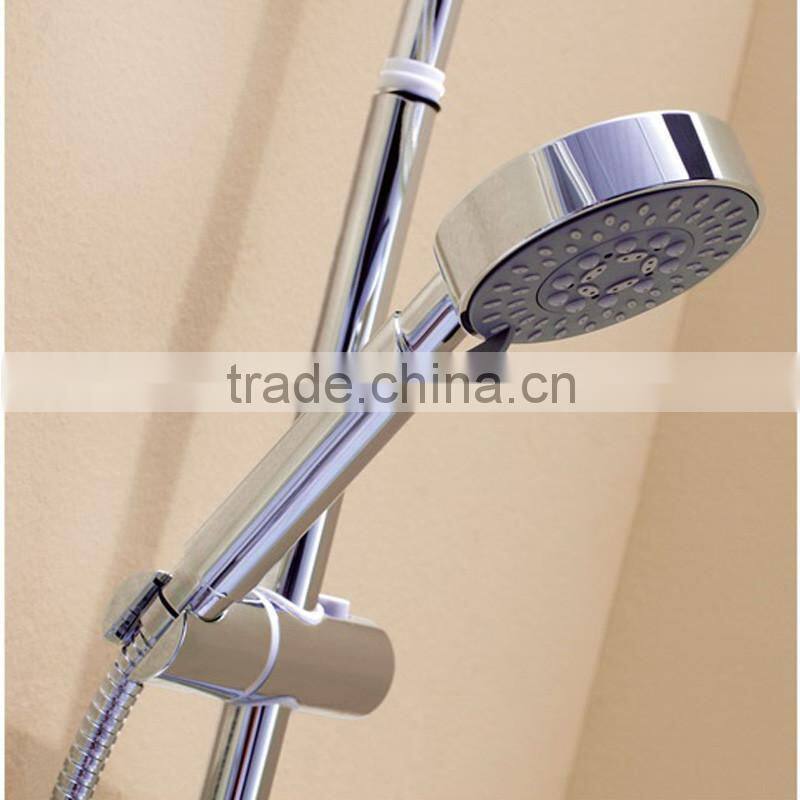

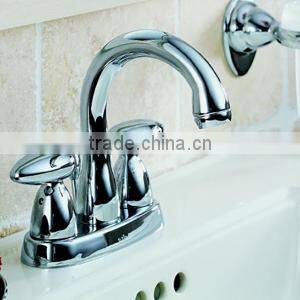

Vacuum magnetron sputtering coating machine is widely used in household appliances, clocks, lamps, crafts, toys, light reflector, phone keypad outer covering and instrumentation, plastics, glass, ceramics, tiles and other decorative film and functional film. Our company's magnetron sputtering machine has many advantages such as good controllability and repeatability for film thickness; strong adhesion between substrate and film; making special material film and let different materials sputtering on products’ surface at the same time, then will make mixed film, compound film, TiN imitation gold film; high purity films etc..
1.The equipment uses the vacuum magnetron sputtering technique, twin cathode, MF sputtering technique, and matching with advanced control systems.
2.The production process all automated, continuous. The highest temperature of the plating workpiece is up to 350 centi-degree, the temperature is zone control and adjustable.
3.The vacuum chamber materials adopts SUS304, polishing inner vacuum chamber wall, spraying beads external vacuum chamber wall after polishing.
4.The vacuum chamber separated by an independent gate valve. The board plug valve r we have designed can be cut off effectively, and stabilize the process gas. Presently only our companies in domestic have the technology to design and manufacture board plug valve, and it has better seal effective and more durability than the current flap valve .
5.The transmission adopts the magnetic targeting to promise stability . The speed of the entire production line in each section use the variable frequency adjustable speed motor to drive, the motion speed is adjustable.
6, Electrical control systems: touch screen and PLC automatic control, man-machine dialogue to achieve the data display, operation and control .
High quality strong Plywood cases and transportation by sea.
Factory packaging with lami-nated packaging ,good structural strength,good
stability,have qualitative light ,intensity is high, has the good elasticity and
toughness.Resistance to impact and vibration.
Packing machine with waterproof,moistureproof,prevent scratch,com-pletely
dissolved in water,non-toxic pollution-free with laminated packing and
shipping.
Before-sales:
- Our engineers are ready to provide custom made design and recommendation for each customer's case.
- We provide professional consulting service for PVD coaters and lines.
- We also have set up good relations with the suppliers of relative consumables and parts for your needs.
- We will send the engineers to your place for installation, fine tune and for operation training.
- We will provide troubleshooting service .
- The warranty period of the machine is one year.
- We will contact you to ask for about the conditions of the machine in periodically.
- We also provide the service for further extension on your existing machine.

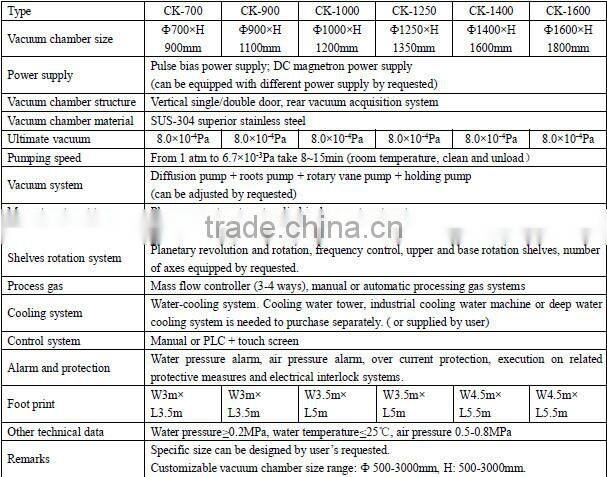

Specification and Dimension:
Hello sir/madam:
When you are going to send us an inquiry, in order to design the most appropriate machine for your project, please answer the following questions in your letter:
1. What is your product, its material and application
2. What is the possible max. dimension of your product
3. What is your desired productivity each batch.
4. What film do you want to coat on your products
5. What environment do your products be used.
The answers to the above question will help us a lot on designing or do the recommendation.
