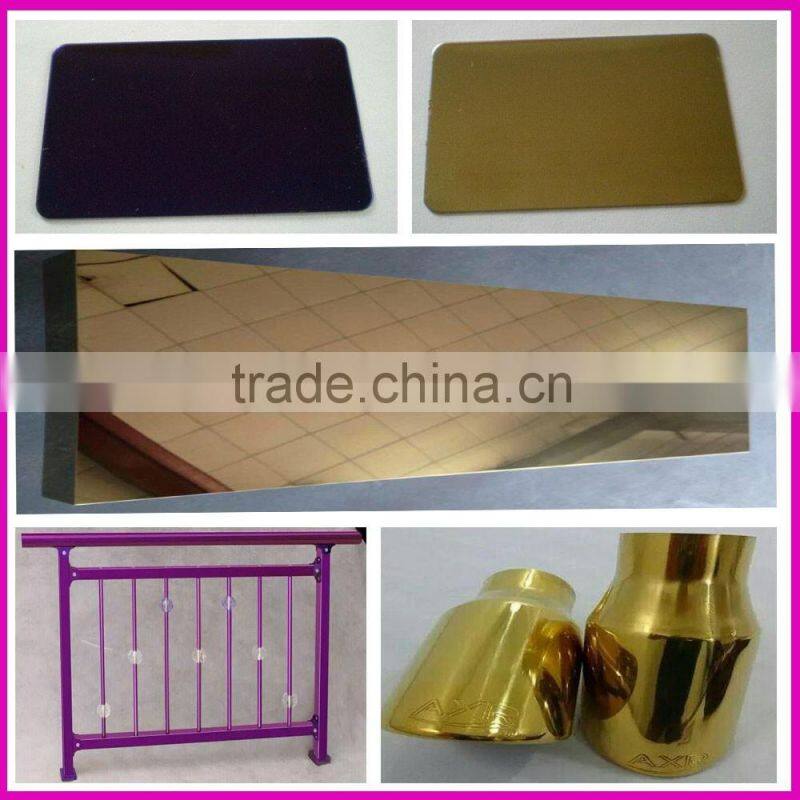

Stainless steel plate PVD machine is special for stainless steel sheet coating,it can deposit gold color,rose gold,coffee,etc.

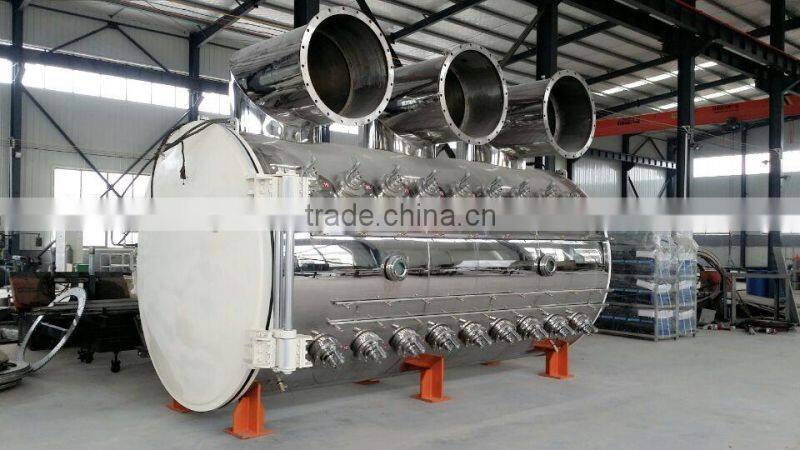

Stainless steel plate PVD machine is designed for stainless steel to get a decorative coating by ion plating technique, the ion plating layer has a real metal texture, which is much different from chemical coating, the chamber diameter of this series is 1800-2300mm, and the height is 3600-4400mm, it can coat three sheets that size is 1220*4600mm; With three sets of large power vacuum pumping systems, high pumping speed, short cycle time, with 34-56 pieces of round arc targets, they are installed reasonable, at the same time, equipment is equipped with pulsed bias system, which make the adhesion of coating strong, color of coating uniform, Touch screen+PLC control achieved full automatic of equipment.
Specification and Size
| Model | LZ-1000 | LZ-1200 | LZ-1300 | LZ-2000 | LZ-2000 | LZ-2000 |
| Vacuum Chamber Size(mm) | ø1000×H1100mm | ø1200×H1300m | ø1300×H150000mm | ø2000×H2100mm | ø2000×H3500mm | ø2000×H4000mm |
| Application | Hardware industry, sanitary appliance industry, decoration industry, household appliances industry | |||||

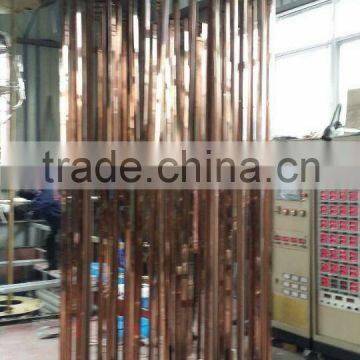

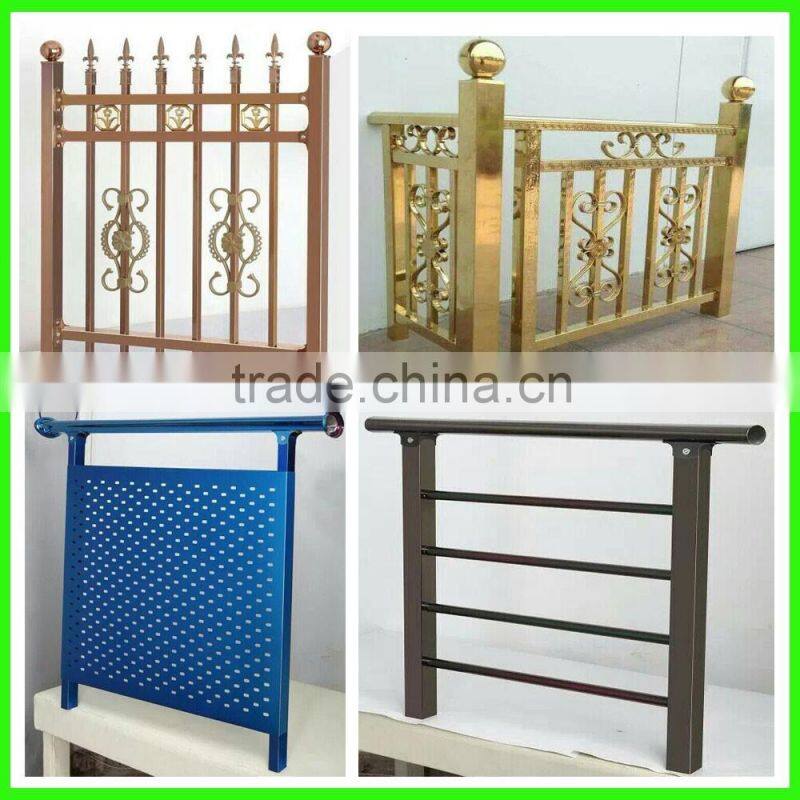

| Faucet, stair handrail, household appliances, LOGO signs, stainless steel frame, stainless steel parts and plate, etc... | ||||||
| Coating Film Type | Ti-Gold, Rose Gold, Champagne Gold, Japanese Gold, Bright Silver, Rainbow, Jewelry Blue, Rose Red, Black, etc. | |||||
| Vacuum Chamber | Vertical door, hanging or horizontal cart structure, equip with pumping system and water cooling system | |||||
| Vacuum System | Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pump or Molecule Pump(specific model according to customers' requirements) |
|||||
| Vacuum Measurement System | 1 set pirani, 1 set cold cathode, 1 set diaphragm gauge | |||||
| Supply Type | DC power, MF power, pulse power(bias power, arc power) | |||||
| Ultimate Pressure | Non-loading cold state 1.0- 6.0×10-4Pa | |||||
| Arc Source | 8-10 set | 8-12 set | 12-16 set | 18-26 set | 22-28 set | 22-36 set |
| 200A-300A | 200A-300A | 200A-300A | 200A-300A | 200A-300A | 200A-300A | |
| Bias Power Supply | 40KW/1 set | 40KW/1 set | 40KW/1 set | 50KW/1 set | 50KW/1 set | 60KW/1 set |
| Magnetron Power Supply | 1-2 set | 1-2 set | 2-3 set | 2-3 set | 2-3 set | 2-3set |
| Rotation | Multi-axis planetary with frequency control(can be controlled and adjusted) | |||||
| Baking Temperature | Normal temperature - 450℃ can be controlled and adjusted(PID temperature control) | |||||
| Gas | 3 or 4 ways working gas flow control and display system matched with auto gas adding system | |||||
| Ar, N2, O2, C2H2,etc. | ||||||
| Cooling Method | Water cooling circulation, equip with industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide) |
|||||
| Controlling Method | Manual, half-auto, auto, touch screen operation, PLC or computer controlled | |||||
| Supply Index | Air Pressure 0.5-0.8MPa, Water Temperature≤25℃,Water Pressure≥0.2MPa | |||||
| Warning | Alarming system will work when hydropenia, over-voltage, circuit break such abnormal situation happens and carry out related protect solution and electric interlock. |
|||||
| Total Power | 60~80KW | 60~90KW | 90~120KW | 165~185KW | 185~200KW | 200KW |
| Output Frequency | Voltage 380V,Frequency 50Hz(equip as customers' national electricity standard) | |||||
| Occupation Space | 15~50m² | 15~50m² | 25~55m² | 25~55m² | 35~55m² | 35~55m² |
| Remark | Design and produce special machine according to customers' require, can add magnetron sputtering target,MF twins target,etc. | |||||

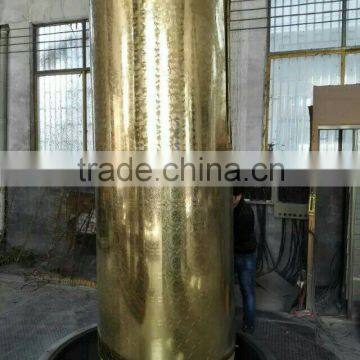

This machine is used to coat Stainless steel door and Elevator door with various colors and films.

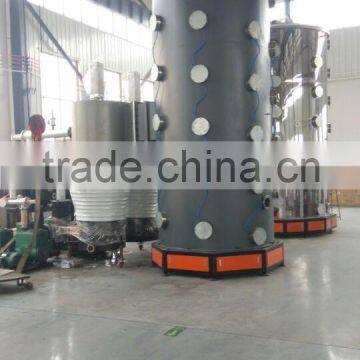

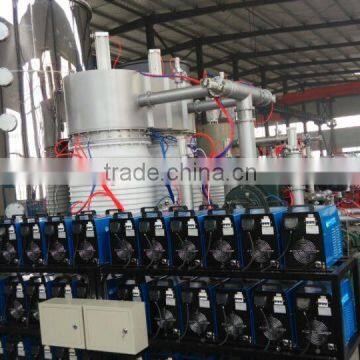

The pvd coating equipment
High quality strong Plywood cases packaging and transportation by sea .
Before sales:
- Our engineers are ready to provide custom made design and recommendation for each customer's case.
- We provide professional consulting service for PVD coaters and lines.
- We also have set up good relations with the suppliers of relative consumables and parts for your needs.
- We will send the engineers to your place for installation, fine tune and for operation training.
- We will provide troubleshooting service all lifetime.
- The warranty period of the machine is 1 year.
- We will contact you to ask for about the conditions of the machine in periodically.
- We also provide the service for further extension on your existing machine.
Hello sir/madam:
When you are going to send us an inquiry, in order to design the most appropriate machine for your project, please answer the following questions in your letter:
1. What is your product, its material and application
2. What is the possible max. dimension of your product
3. What is your desired productivity each batch.
4. What film do you want to coat on your products
5. What environment do your products be used.
The answers to the above question will help us a lot on designing or do the recommendation.
