slip ring electrical connectorsCompact design
High performa slip ring
Strict quality control system
Excellent p

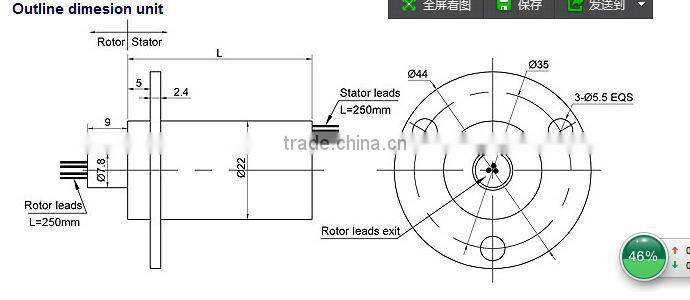

slip ring electrical connectors

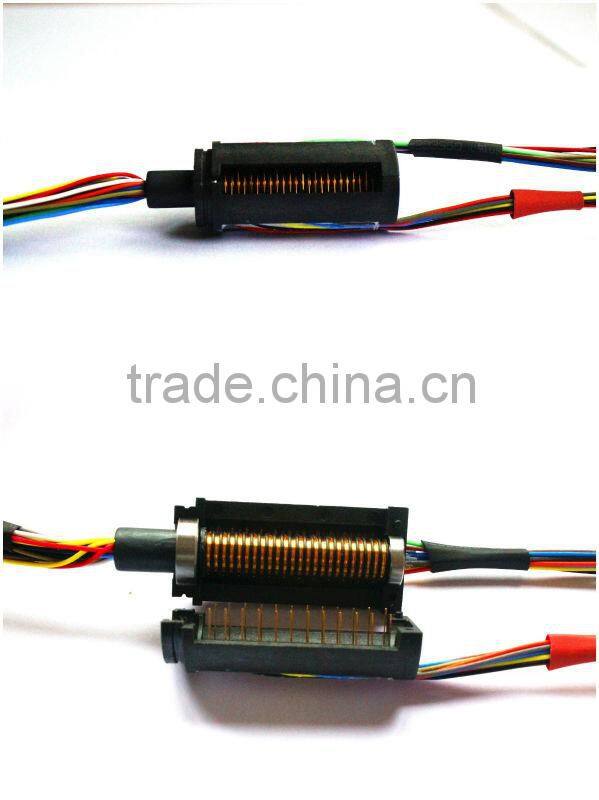

Description
Slip rings of the HM series are specially fit for small or miniature rotating system of transmitting low controlling signal.Applies noble precious metal reduced noises and interferences between circuits, low friction torque assures long life-span.

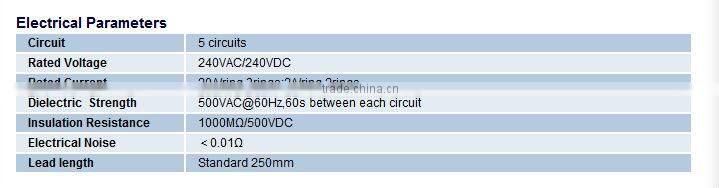

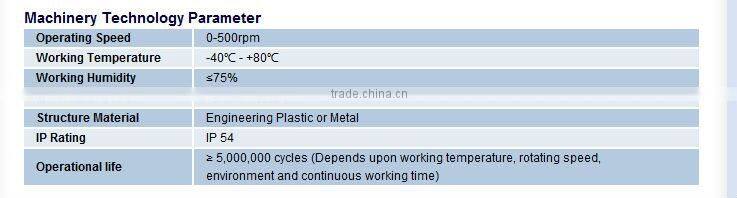

Models are available in 4, 6, 12, 18, 24, 30, 36, 46 and 56 circuits with 2A each.
Features
uCompact design
uNo maintenance
uOperating smoothly and reliability
uExtremely low electrical noise
uConvenient to assembly
uCompatible with data bus protocols
uPrecious metal contact ensures long life-span
Typical application
uElectrical test equipment
uManufacturing and process control equipment
uIndexing tables, Cable reels
uRobotics, rotary sensors, urgent illumination equipment
uExhibit / display equipment
uCCTV pan
uLaboratory equipment
uAviation, military, marine and medical equipment
uWind generator
Benefits
uCompact for ease of incorporation in small mechanisms.
uOutstanding signal handling capability to transfer the most demanding communication protocols
Option
uOperation speed, current &voltage
uConnector
uNo. of circuits
uHousing material
uPosition of wire outlet
uProtection level (dust and water)
uPower ring with 5A and 10A is available upon 2A rings combination
uCompatible with digital signal and analog signal such as RS series signal, data bus protocols, Ethernet signal and so on.
Installation Guide

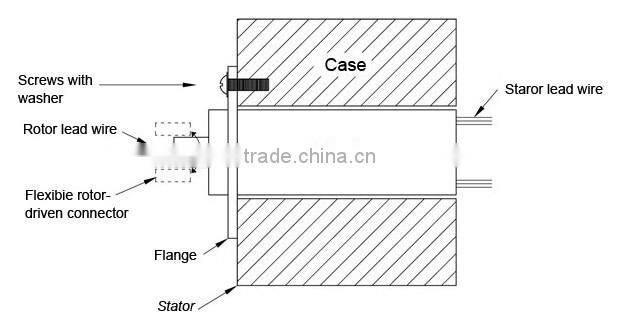

- Capsule slip ring is designed for being installed with flange on a sleeve bracket.
- Rotor must be concentric driven by a flexible link (such as plastic tube or screw tube). Rotor lead wire can do as this driver at limited-speed.
- As the photograph shows, screws with washer can be used to install slip ring, these washers can avoid flange too tight.
Attentions:
- Slip ring can not support the weight of equipment which connects with it, rotating equipment should be fastened so that its weight will no fall on the rotor.
- Slip ring should be used in dry, low dust environment. If used outdoor, shield is necessary.
- The surface of lead wire should avoid being damaged while equipment rotating, all lead wire can not bear weight while you put the lead wire in order.
- No damaging the surface of lead wire while barking its end.
Pack in carton or wooden case
BY DHL, FedEx, UPS or TNT.......
We strive to meet the needs of our customers. If an assembly from above does not fit your requirements, our R&D team will work with you to design a slip ring to meet your exact demands.
Two years quality guarantee.
