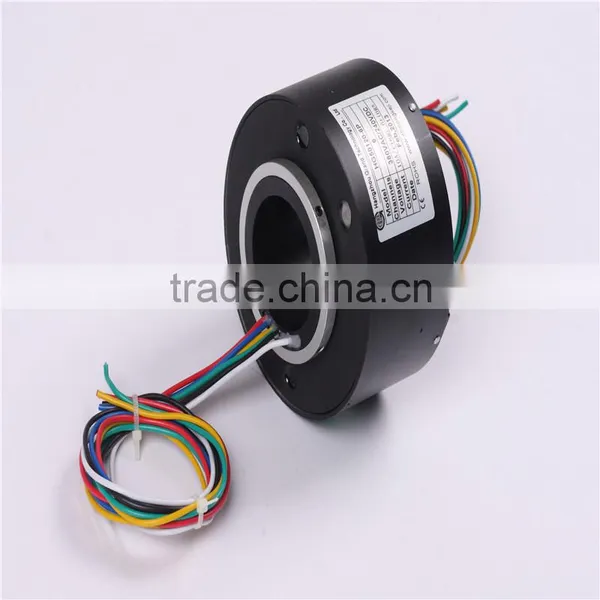

Help CenterThrough Bore Slip Ring OD99mm ID38.1mm 10-15A/ring Crane Slip Ring
Related Products
-
Through Bore Slip Ring OD99mm ID38.1mm 10-15A/ring Crane SlipringNegotiableMOQ: 10 Units -
Through Bore Slip Ring OD99mm ID38.1mm 10-15A/ring Rotary Joint Slip RingNegotiableMOQ: 10 Units
-
Through Bore Slip Ring OD99mm ID38.1mm 10-15A/ring Rotary Joint SlipringNegotiableMOQ: 10 Units
-
Through Bore Slip Ring OD99mm ID38.1mm 10-15A/ring Slip Ring FlangesNegotiableMOQ: 10 Units
-
Through Bore Slip Ring OD99mm ID38.1mm 10-15A/ring Slip Ring Rotating ConnectorNegotiableMOQ: 10 Units
Specifications
carbon brush holder for slip ringConvenient to assembly
High performa slip ring
Strict quality control system
Excellent pos
crane slip ring
Slip rings of HG series can be used to mount the slip ring on a bracket or used for routing space for hydraulics line. Multi-contacting can ensure contacting reliable with low wear. The through hole can be from 2.0mm to 1000mm. This series features long life, fiber brush contact technology for excellent performance in many rigorous applications.
Advantages
uSuffice 360 degree unrestrained continuous rotation to transmit power or data.
uNo maintenance
uOperating smoothly and reliability
uExtremely low electrical noise
uConvenient to assembly
uCompatible with data bus protocols
uPrecious metal contact ensures long life-span
uModularized design and also provide customized solutions
Typical application
uElectrical test equipment
uManufacturing and process control equipment
uIndexing tables, Cable reels
uRobotics, rotary sensors, urgent illumination equipment
uExhibit / display equipment
uLaboratory equipment
uCamera system
uAviation, military, marine and medical equipment
Option
uOperation speed, current &voltage
uFlange mounting
uConnector
uNo. of circuits
uHousing material
uInner diameter
uHousing color
uPosition of wire outlet
uWire length
uProtection level (dust and water)
uSignal, power and data transmitted or combination transmitted

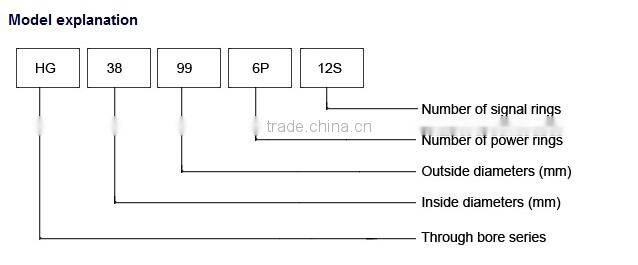

| Model | Length(mm) | Rated current(A) | No. of ciurcuits |
| HG3899-6P | 55 | 6 | 6 |
| HG3899-12S | 55 | 12 | 12 |
| HG3899-12P | 79 |
12 | 12 |
| HG3899-6P12S | 79 | 6 | 18 |
| HG3899-24S | 79 | 24 | 24 |
| HG3899-18P | 103 | 18 | 18 |
| HG3899-12P12S | 103 | 12 | 24 |
| HG3899-6P24S | 103 | 6 | 30 |
| HG3899-36S | 103 | 36 | 36 |
| HG3899-24P | 127 | 24 | 24 |
| HG3899-18P12S | 127 | 18 | 30 |
| HG3899-12P24S | 127 | 12 | 36 |
| HG3899-6P36S | 127 | 6 | 42 |
| HG3899-48S | 127 | 48 | 48 |
Pack in carton or wooden case
BY DHL, FedEx, UPS or TNT.......
We strive to meet the needs of our customers. If an assembly from above does not fit your requirements, our R&D team will work with you to design a slip ring to meet your exact demands.
Two years quality guarantee.
