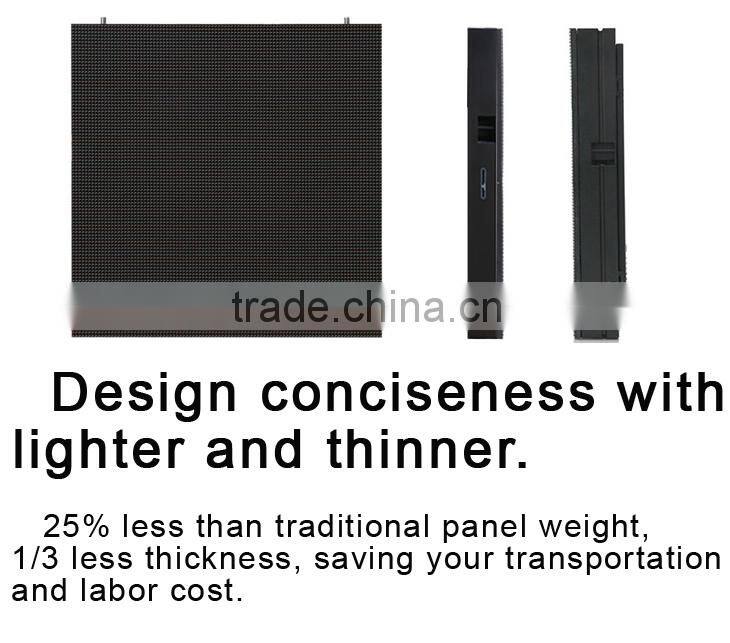

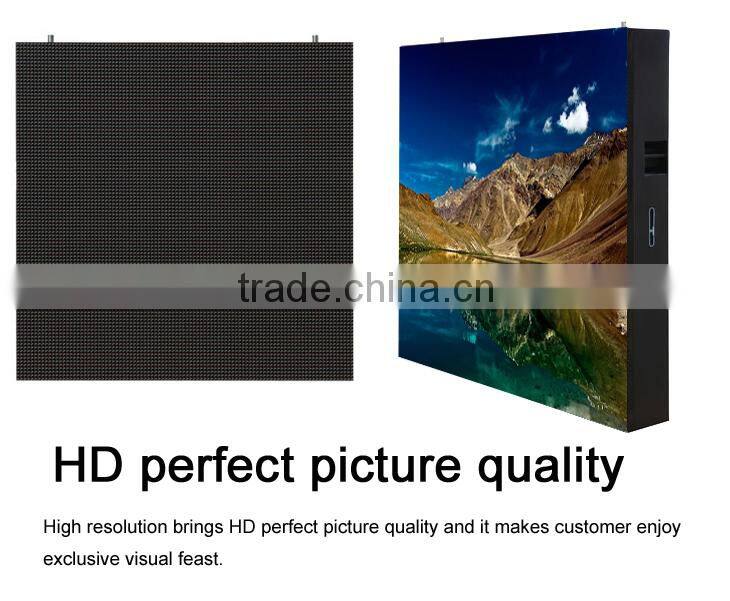

Outdoor high brightness P8 RGB 256*128mm led display
Unit Module | Item | Parameter |
Model Number | DIP P8 LED display | |
Module size | 256mm*128mm | |
Pixel pitch | 8mm | |
Pixel configuration | 15625/m2 | |
Pixel resolution | 32dots(W)*16dots(H) | |
Max Power consumption | 30W | |
Module thickness | 2.5CM | |
Weight | 0.85 kg | |
Drive type | Constant drive | |
Scan mode | 1/4 scan | |
Port type | HUB75B | |
Brightness of white balance | ≥6000cd/m2 | |
LED Cabinet | Dimension | 768mm*768mm |
Quantity of Module | 18 | |
Power supply | 5V/40A 5V/60A | |
Pixel per cabinet | 96*96 | |
Best viewing distance | 8 M~2500M | |
Best viewing distance | 160°(W) 120°(H) | |
Temperature | storage:-35℃~+85℃ working:-20℃~+50℃ | |
Operation humidity | 10%-95% | |
Power | Working voltage | AC220V±10% |
Average Power consumption | 350W/H | |
Max.Power consumption | ≤1250W/m2 | |
Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4 or above P4 |
Operation system | XP/WIN7/8 | |
Control method | Synchronization | |

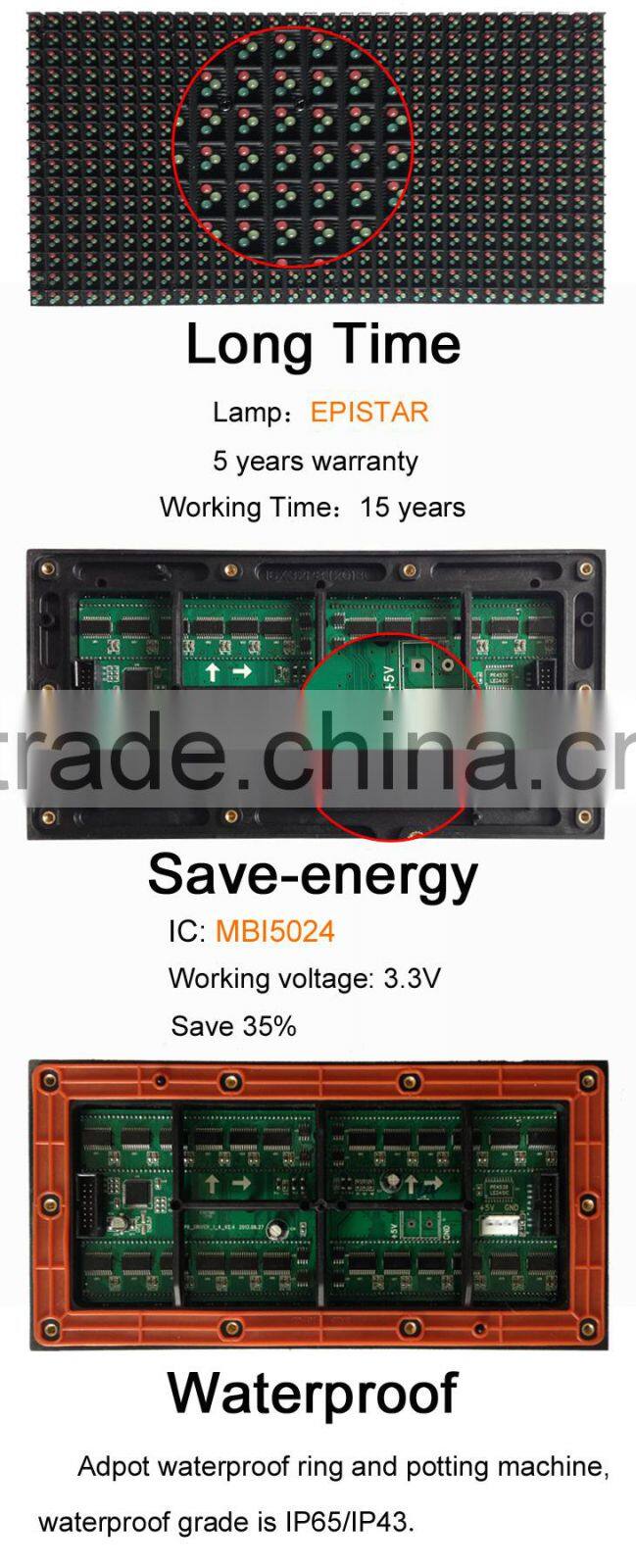

Main technical parameter | LAMP | EPISTAR |
Driving device | MBI5024 | |
Refresh frequency | ≥600HZ | |
Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
MTBF | ≥100000hours | |
Power switch | Automatic switch |
We offer complete LED screen service solution to every customer .
We ranked 9th in LED industry .
We are a LED industry trading platform.
We produce new environmentally friendly energy-saving high-tech LED screen.
Thanks for 11-year customer trust on FOXGOLDEN.
Thanks for 11-year LED material supplier support on FOXGOLDEN.
Thanks for 11 -year FOXGOLDEN family constant effort .
We have 11-year production experience .
We have 11-year designing experience.
At present, Foxgolden Group Limited has formed a series of LED display products: outdoor LED display, indoor LED display, portable LED screen, foldable LED screen, soft LED screen rental LED display, stadium LED display, small pitch pixel LED display etc.
FOXGOLDEN GROUP LTD ()is a professional high quality LED display manufacturer. Since 2004, we have been dedicating to the aim that producing high quality products, and now FOXGOLDEN has been well integrated in terms of R&D, produce, project, capital and marketing.
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE,RoHS ,SGS, UL and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
Certifications
CAD Drawings
Trade Terms:
Payment terms: | 35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
Packing: | -Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
Shipping: | LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
After-Sales-Service: | -Lifetime with professional engineer support. problem |
Warmly welcome to visit FOXGOLDEN !!! -:)
