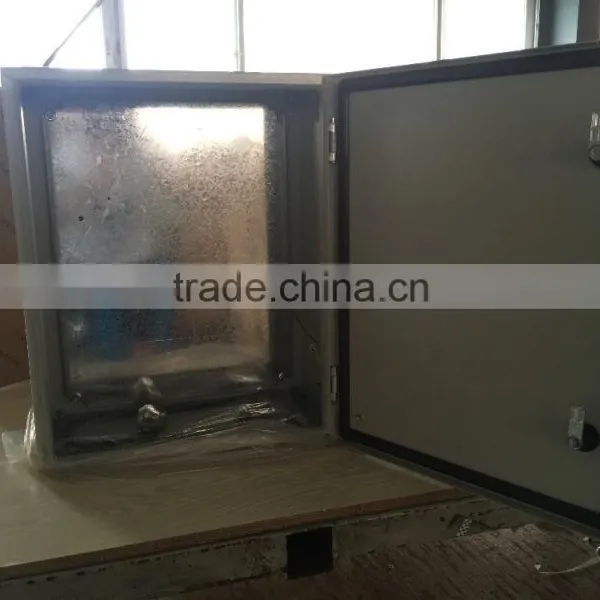

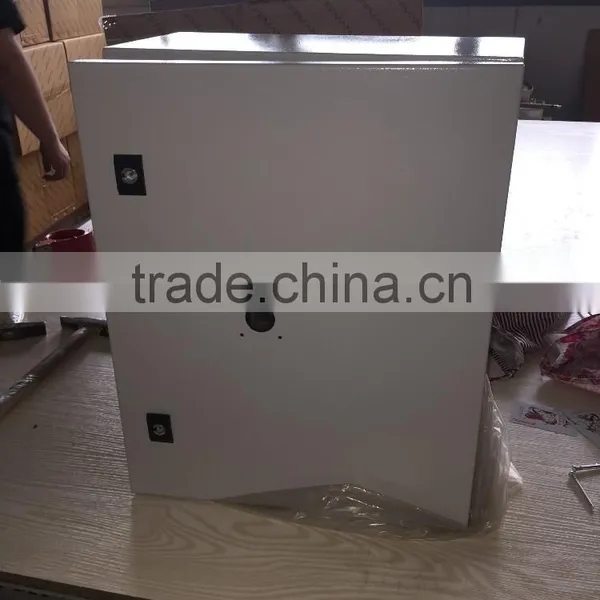

Wall Mounting Metal Enclosure Ip65, High Quality Wall Mounting Metal Enclosure Ip65,Wall Mounted Weatherproof enclosure specifications:

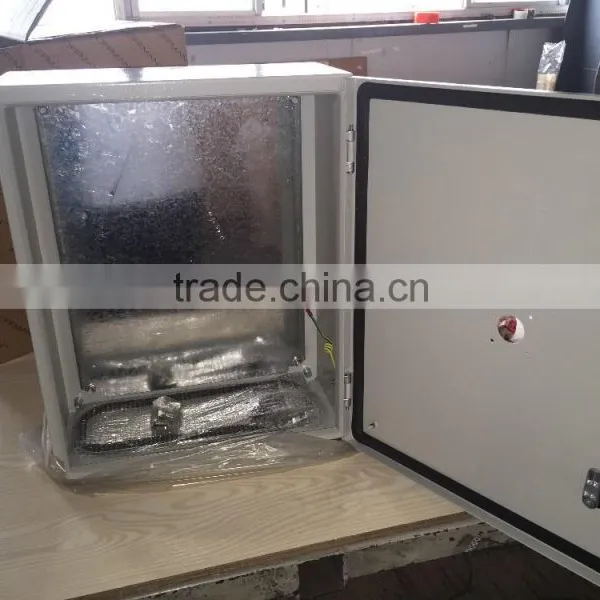

Metal enclosure made from a continiou length of sheet double folded at the front, with back welded to the frame. Both externally and internally protected with polyester epoxy resin Grey paint to RAL7032 or RAL7035 texturized.
Material:
sheet steel
Enclosure:1.2mm ,1.5mm
Door:1.2mm ,1.5mm
Mounting plate:2.0mm
Surface finish:
Enclosure and door:Dipcoat-primed,powder-coated in textured Ral7032 or Ral7035 outside
Mounting plate : Galvanized steel or sheet steel to paint in RAL2004/RAL7032
Protection:
Protection degree:IP66
Impact resistaance:IK10
Supply includes:

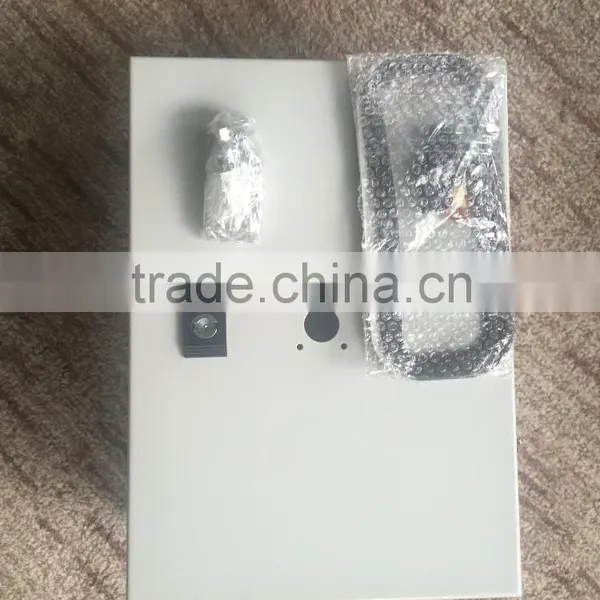

Enclosure and door, Mounting Plate, Lock system, Gland plate sealing gasket, and fixing accessories.
Our Advantages:
1. 20 year's OEM & ODM experience
2. Spain Design and Germany design
3. the color can remain for over 5 years
4. professional team
Wall Mounting Metal Enclosure Dimensions(mm):
| MATERIAL | BODY | CS | DOOR | CS | MOUNTING PLATE | CS |
| THICKNESS | BODY | 1.2MM | DOOR | 1.2MM | MOUNTING PLATE | 2.0MM |
| MODEL | HEIGHT(MM) | WIDTH(MM) | DEEPTH(MM) | |||
| JX | 302015 | 300 | 200 | 150 | ||
| JX | 403020 | 400 | 300 | 200 | ||
| JX | 504020 | 500 | 400 | 200 | ||
| JX | 604020 | 600 | 400 | 200 | ||
| JX | 605020 | 600 | 500 | 200 | ||
| JX | 705020 | 700 | 500 | 200 | ||
| JX | 706025 | 700 | 600 | 250 | ||
| JX | 806020 | 800 | 600 | 200 | ||
| JX | 806025 | 800 | 600 | 250 | ||
| JX | 806030 | 800 | 600 | 300 | ||
| JX | 1006020 | 1000 | 600 | 200 | ||
| JX | 1006025 | 1000 | 600 | 250 | ||
| JX | 1006030 | 1000 | 600 | 300 | ||
| JX | 1008025 | 1000 | 800 | 250 | ||
| JX | 1008030 | 1000 | 800 | 300 | ||
| JX | 1208025 | 1200 | 800 | 250 | ||
| JX | 1208030 | 1200 | 800 | 300 | ||
| JX | 1408030 | 1400 | 800 | 300 | ||
| JX | 14010030 | 1400 | 1000 | 300 | ||
| JX | 1608030 | 1600 | 800 | 300 | ||
| JX | 1608040 | 1600 | 800 | 400 | ||
| REMARK:CAN PRODUCE ANY SIZE ANY THICKNESS ACCORDING TO CUSTOMER'S REQUIREMENT | ||||||

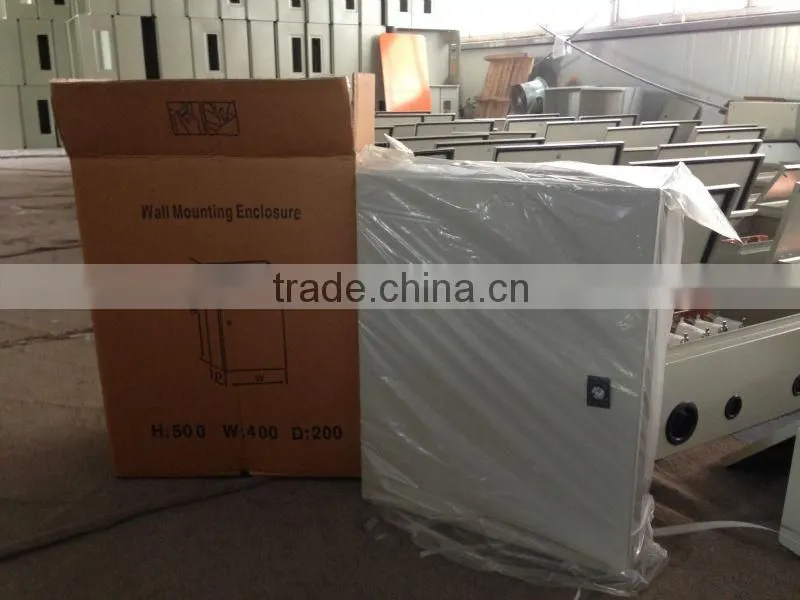

1) Standard export packing: 1Pcs/Ctn.
2) Pallets or other packing requirements are offered.
1)Professional manufacturer on metal enclosure , distribution box and electric cabinet.
2)With a history of 16 years.
3)Offer OEM seviece.
Wenzhou Jinxin Electrical co.,ltd Is a professional manufacturer of various sheet metal enclosures and products. These include distribution boxes, wall mount and floor standing panels, Stainless Steel enclosures, control desks and other low voltage distribution boards, as well as the complete wiring of panels are also part of the Wenzhou Jinxin Electrical co.,ltd services. Wenzhou Jinxin Electrical also manufactures panels, enclosures, and specialized units according to customer specifications.
The company was established in 1998. During the first period of its existence the company was primarily concerned with the wiring of distribution panels.
The growth and direction of the company led to the inclusion of sheet metal work, and later in-house powder coating. During the years that followed, the company's capacity grew to include cutting, punching and bending. Today Wenzhou Jinxin Electrical co.,ltd is a company that manufactures complete products, from design to assembly and wiring.
