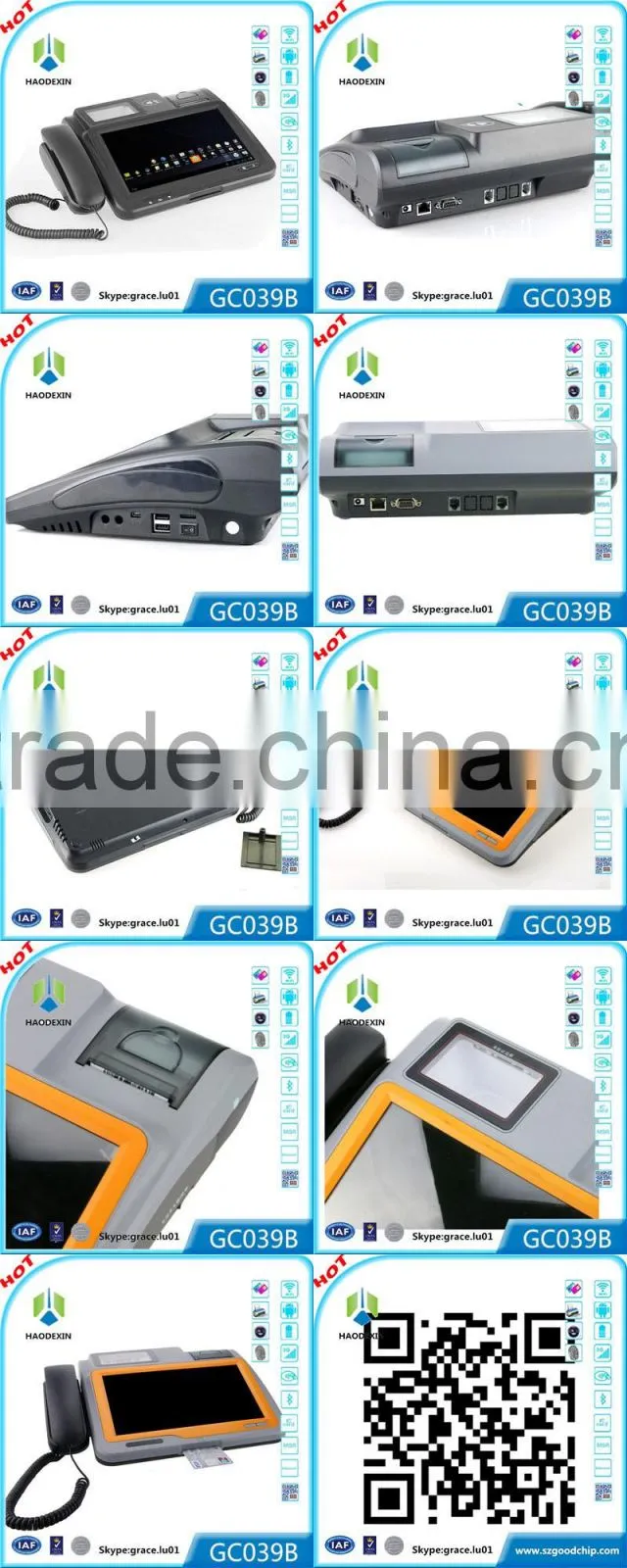

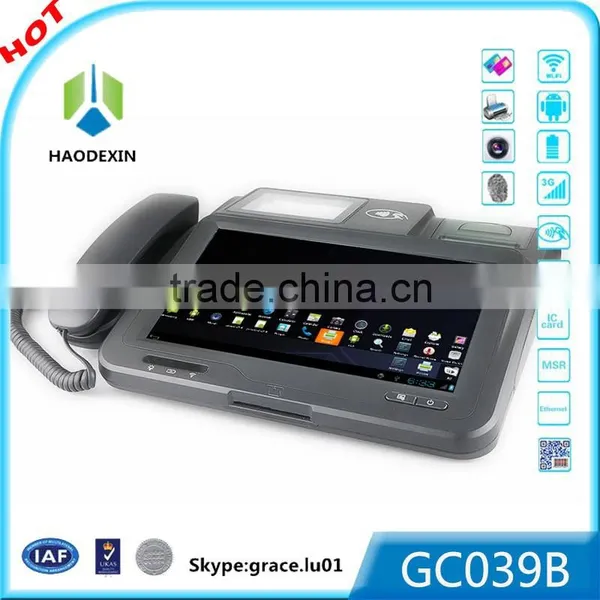

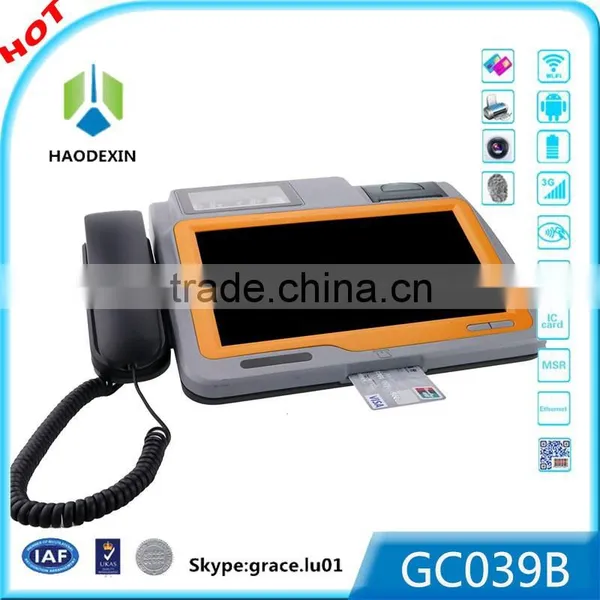

3G WIFI Smart Android Tablet POS with Printer, 2D Barcode scanner, Smart Card reader
| (GC039B) 2D Bar Code wireless POS Terminal | |
| Product Name | Functional Description |
|
Industry application (foundation platform) |
Many application platform software( developed by customer , without supply when deliver the equipment) |
| Operation system OS | Android 4.1 version above |
| 2D Code Decoding Software |
Provide the 2D Bar Code decoding library,support formats:Data Matrix, QR,PDF147 |
| Hardware Configuration | |
| CPU Basic Frequency | 1.2GHZ RK3168 ARM Cortex-A9 Dual Core CPU |
| Memory DDR | DDR3 1GB,2 Piece 256X16 Cache Chip |
| NAND FLASH | MLC Nand Flash 4GB, 24bit ECC Can Expandable to 32GB |
|
Two-Dimensional Code Dedicated Camera Componets (Using OCR software Can realize the Identity card information recognition) |
640 x 480 pixel(gray scake) CMOS camera 5,000,000 piexl + the brightness of the LED backlight is adjustable |
|
Cameta tange 82 x 51MM can identify the ID Cards, wide-angel and low-distortion lens | |
| Shot fixed focus | |
| LCD monitor module | Colorful RGB TFT 10.1 inch, Resolution 1024 x 600,widescreen 16:9 |
| G+F Multi touch capacitive touch screen | |
|
Magnetic stripe card module(option) |
comply with relecant international card specification ISO-7811/13, support 1/2/3 magnetic track two-way swipe |
|
RFID Card Reader (option) |
Frequency: 13.56MHz Mifare card read/writ module,meet with ISO14443A,standard can support Mifare1 S50,Mifare1 S70, Mifare Light,Mifare UltraLight,Mifare Pro, ISO10536,ISO7816 standard |
|
Magnetic stripe card module (option) |
comply with relecant international card specification ISO-7811/13, support 1/2/3 magnetic track two-way swipe |
| SIM Card |
meet the standard of three opetators (option Chiness Unicom,China Mobile, China Telecom) |
| Music Player |
Efficient DSP processing,SD Sound Effect,dual-channel output 2x3w, support Mifare1 s5 Mifare1 s70,Mifare light,Mifare ultra light,Mifare pro, ISO 10536,ISO7816 standard |
| Photo | support JPG,JPGE,BMP,GIF,PNG,JFIF etc formats and support resolution up to 8000*8000 |
| Video player |
support 1080P HD AVI,MPG,MKV,RM,RMVB,MP4,MOV,VOB, DAT,FLV,TS,3GP,WEBM(VP8) etc formats Video playback |
|
Voice Communication management |
The wireless voice and 2-way input fixed line can be managed separately,so that wireless and wired telephone have no interface,handles call is through wireless channel of 3G modules. |
| earphone slot | Double earphone slot include slot and earphone 1 group |
| Communication | 3G Module 5 frequency:WCDMA HSDPA/EDGE/GPRS Compatible WM100 |
| WIFI Module:executive standard----IEEE802.11b/g/n | |
|
Ethernet interface(RJ45) Support TCP/IP HTTP and other commonly used protocols | |
|

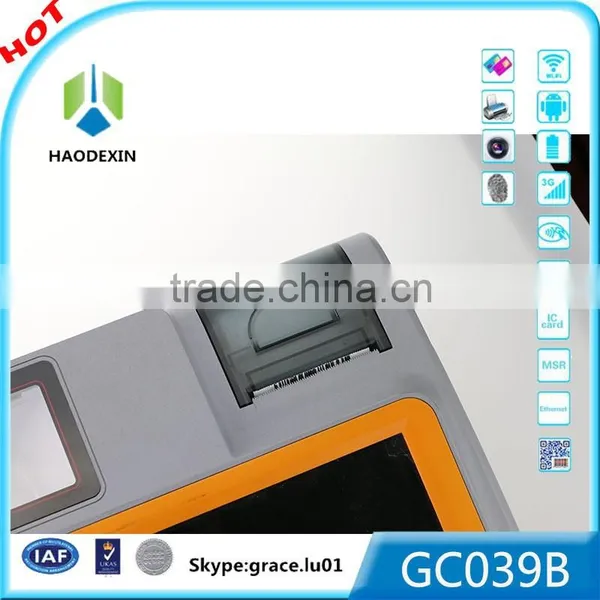

High-speed thermal printer Componets |
High-speed thermal printer paper width:57MM,print speed: Highest 5CM/s, can print words,picture,barcode,and multiple word size |
| Back up battery | Chargeable Polymer Battery 7.4v 2000mah,hyperpressure,lowpower protection,model:0818 |
| Package | |
| Shell | ABS material dark gray |
| Package |
Standard industy package (white box+paper holder+ Cartoon+ Instruction+ Warranty card) |
| dimension:320 x 245 x 78 MM | |
| Weight : 2.6kg | |
| capacitance pen Placed in the machine box | |
| Power adapter | input 100-240v output DC9V 5A with the power code |
| Antenna | Dedicated high gain built-in antenna |

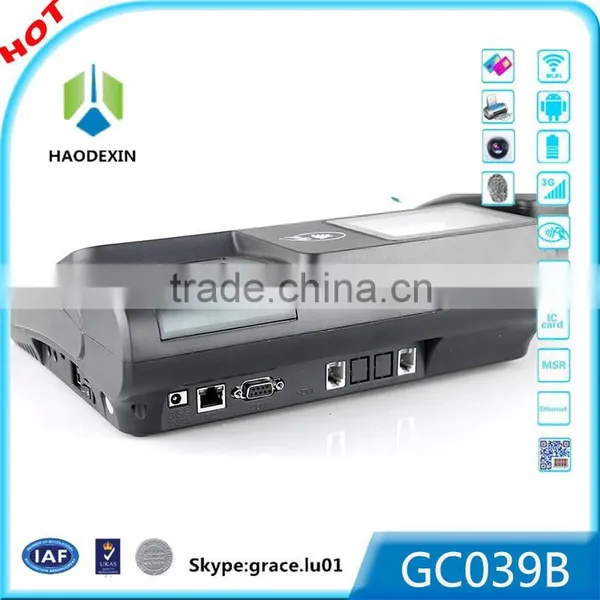

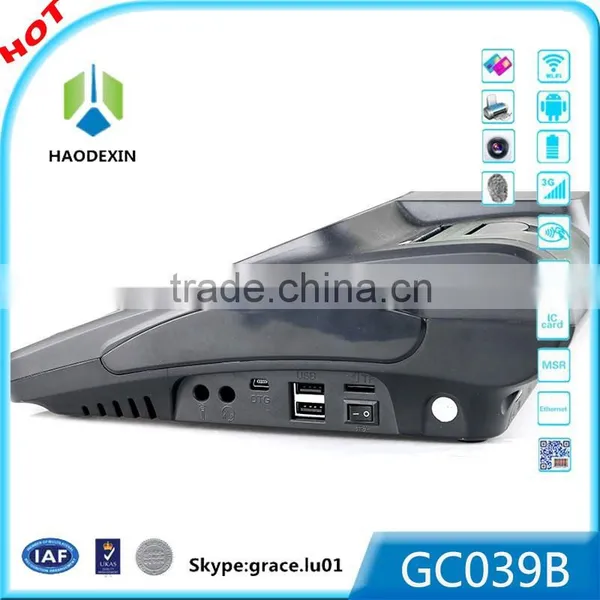

| External port | USB 2.0 HOST 1 DEVICE 1 RS232 Serial port standard DB9 1 |
|
telephone line socket RJ11 standard interface ROUT 4 (TWO input ports,two output ports) | |
|
TF cassette (max 32GB) 1 HDMI standard interface 1 DC power input socket 1 input current 9V 5A | |
| DC power switch (soft switch) MINI USB OTG 1 | |
| Operating Environment | |
| Working temperature | -10℃ ~ 50℃ |
| Storage temperature | -40℃ ~ 80℃ |
| Humidity | 95% without sticky |
| Drop standard | 1.5 meters hight six sides drop on the cement floor |
|
Static electricity protection |
12KV |
Android Tablet POS with Printer
All the inquiry will be replied within 8 hours
Will provide 24 months warranty to our customers
Provide technical support for all our products during its life time
Choose the most suitable shipment way for our customers
Track the order until you receive the goods

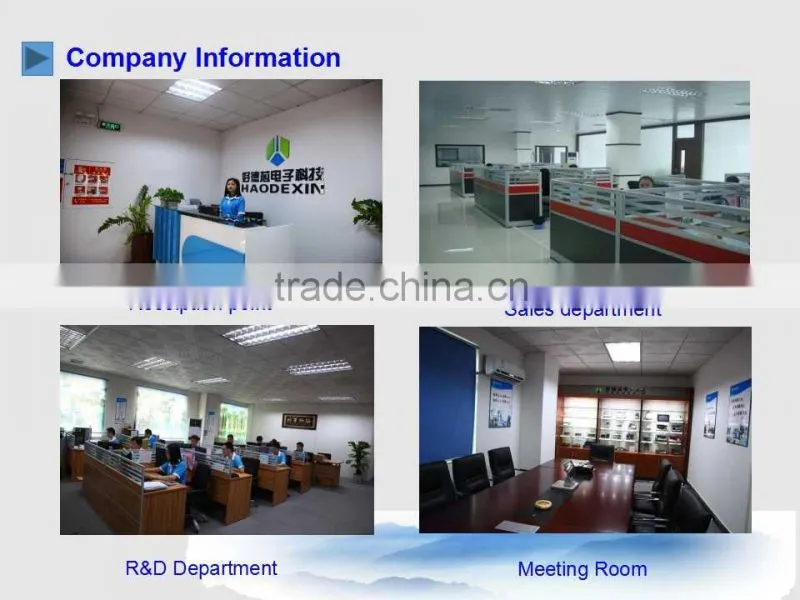

1. Founded in 2008,we have more than 6 years experienc in the 2D Bar Code Pos Terminal industry.
2. Cooperative partner with more than 500 big companies like Chinese telecom,mobile,Unicom,etc.

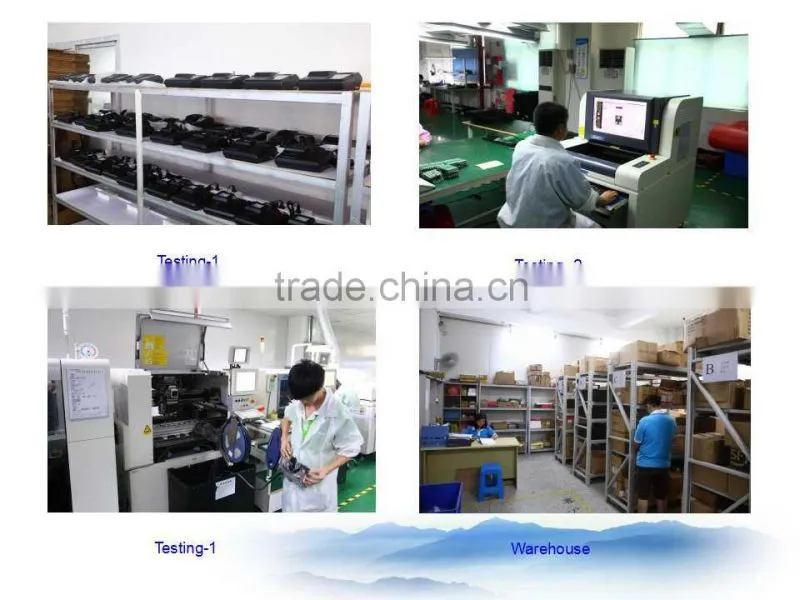

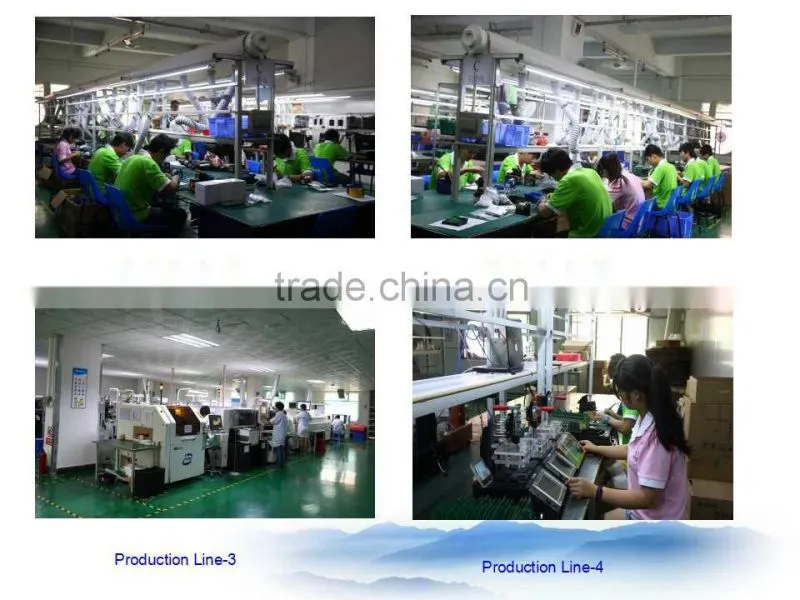

3.We have 6 product lines,more than 30 QC and more than 30 engineer,to guarantee the quality of the
product and the the best solution.
