Specifications
1.Low voltage,low power consumption2. Serial interface
3.Lowest price
4.58mm paper width

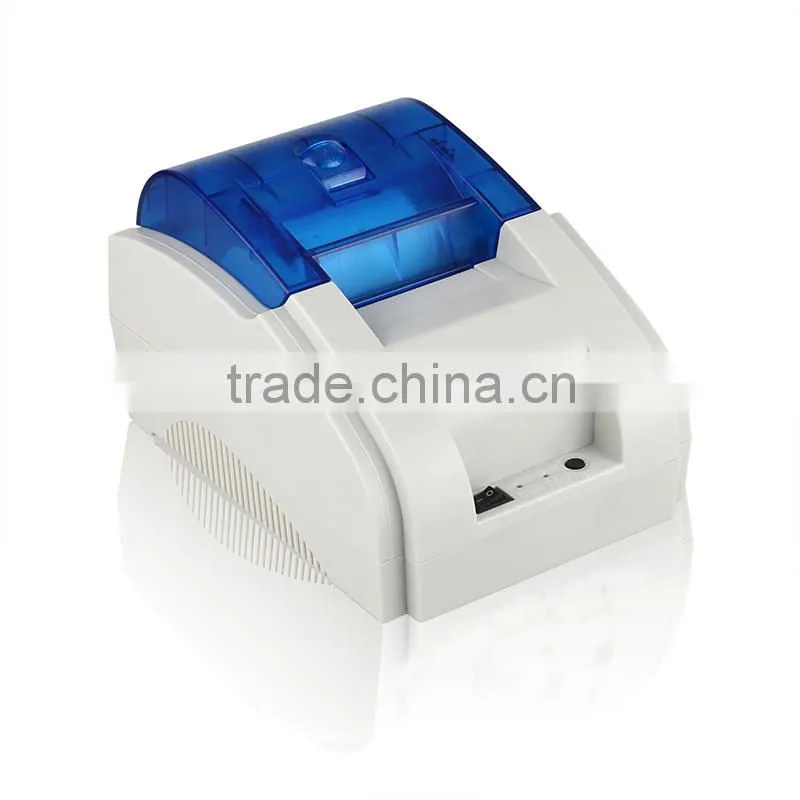

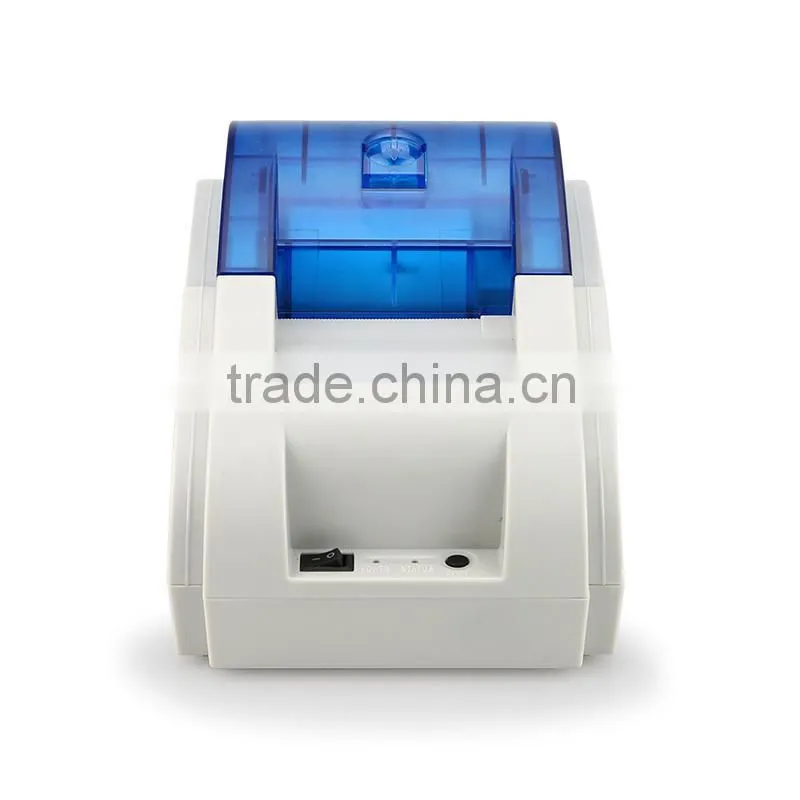

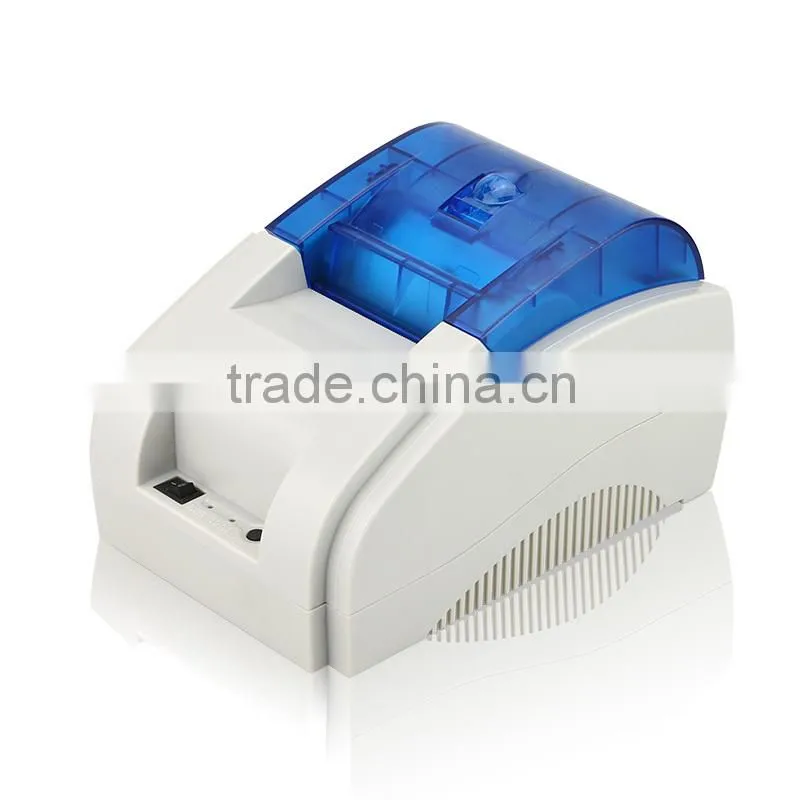

2015 cashier drawer thermal receipt printer with the lowest price in the world
l Application
- Medical equipment
- Fire protection warning
- Measuring equipment
- Power equipment
- Electric weighing instrument
- Bill&Ticket printing
- Invoice printing
l Brief advantage
1.High quality printing
2..Low noise,high speed printing
3.Support the cashbox drive
4.Small and light,elegant shape
5.Simple paper loading structure,rational construction,rational construction,simple maintain
6.The optional communication port is parallel port or serial port
7.Built-in data buffers (Could receive the printing date when printing)
9.Character can be bold,print is in big size, can adjust the printing space.
10.Support different density bitmap and download graphics printing
11.Support multiple barcode printing(#)
12.It will realize the same speed as call hard work stock on the condition of the drive program(Bit map)(#)
13.Small power consumption,Low operation cost(No ribbon,ink box)
14.Compatible with the ESC/POS printing instruction set
Product Description
| Printing performance | Printing Method | Thermal line printing |
| Dots per line | 384 dots/line | |
| Resolution | 8dots/mm | |
| Effective print width | 48mm | |
| Printing speed | 50mm/s,70mm/s,90mm/s | |
| Feed width | 0.125mm | |
|
Character/Chinese character/picture/ barcode |
Character per line | 32/line |
| Chinese Character per line | 24 dot matrix:16,16 dots matrix:12(enlarge 1 time) | |
| Standard ASCII code dot matrix | 24 dots matrix:12*24,16 dots matrix:8*16 | |
| Standard ASCII size(W*Hmm) | 24 dots matrix:1.5*3, 16 dot matrix:2*4 | |
| Printing Character | international standard 2312-80 simplifide style font library | |
| Chinese Character dot matrix | 24*24,16*16,12*12 dot matrix | |
| Chinese Character size | 24dots matrix:3*3,16 dot matrix:4*4(enlarge 1 times) | |
| Graph/Code | support | |
| Detection mode | Paper out testing | Yes |
| Overheating test&protection | Yes | |
| External port | Serial interface |
DSUB 25 Line socket(pass) Baud Rate:9600bps,data structure for parity,8 data bits,one or more than 1stop bit,and support the RTS/ CTS and XON/XOFF handshake protocol |
| Paralle interface | D-SUB 25 Line Socket(pin type),two-way parallel interface,8 bits parallel port,support BUSY/nAck handshake protocol(*) 6 pin centronics two-way parallel interface,8 bits parallel port,support BUSY/nAck handshake protocol | |
| Cashier drawer port | 6 lines RJ-11 socket,output DC 12V/1A,power output driver coffers | |
| Power supply | Operation voltage | DC9V-39V |
| Average current | 1A~1.5A | |
| Peak point current | 2A~3A | |
| MCBF | Printer head life | 100 millions pause/50Km printing length |
| Printing Paper | Paper type | common thermal paper |
| Printing paper width | 57.5±5mm | |
| Paper thickness | 53~60g/m | |
| Scroll size | Φ65mm* Φ75mm(out); Φ12mm* Φ75mm(inner) | |

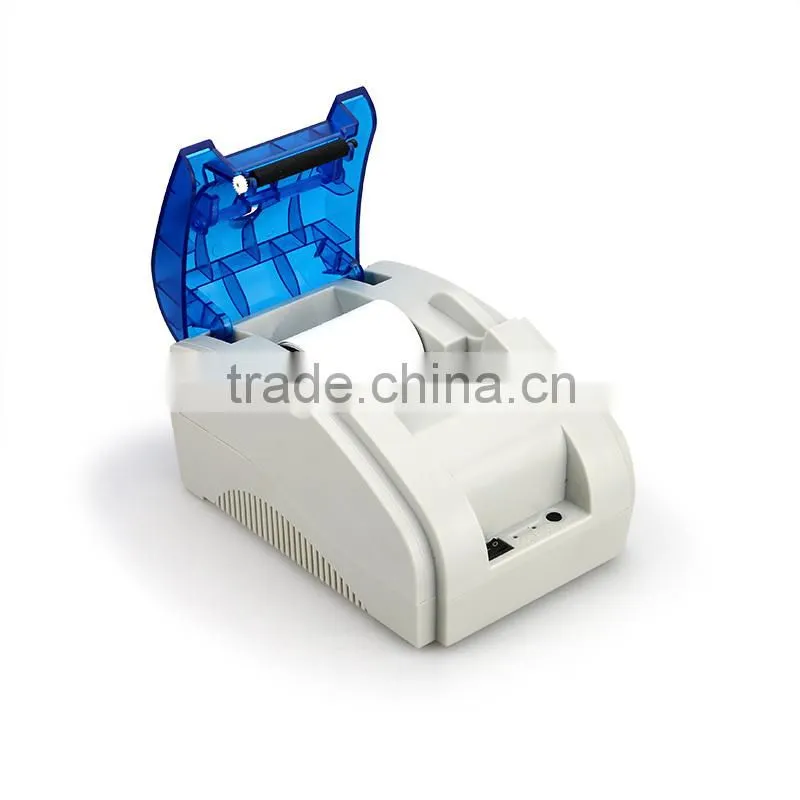

| Paper installation method | Easy to load paper,flip cover for opening | |
| Cutting paper method | Tear(Tooth shape untying) | |
| Physical property | Operating temperature | 0~55 degree |
| Storage temperature | -25- 75 degree | |
| Operating humdity(%RH) | 10~90RH% | |
| Weight(gross weight) | 786g/1100g(not include paper) | |
| Net weight | 786/1100g(without paper) | |
| Size | 185mm*115mm*90mm;225mm*140mm*135mm |

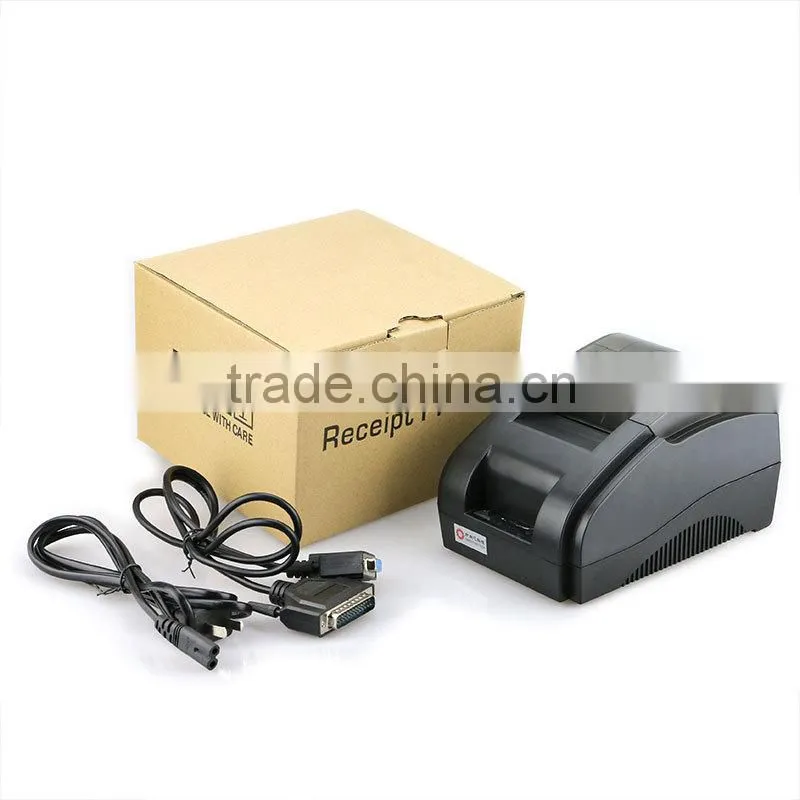

Packaging
Packaging dimension:185*115*90mm
Weight:1.6kg
Shipping
Ship our products via DHL,EMS,UPS,TNT,FedEx(door to door)
Normally,it will take 3-7 working days for us to ship the goods to the destination,some remote place will need 1-3 days more
Our Service
1.All the inquiry will be replied in 8 hours
2.Provide 2 years warranty
3.Provide technical support during its life time
4.Choose the most suitable shipment way for you
5.Replace the broken parts with new parts in the next order
6.Track the order until you receive the goods
