Specifications
1. With continuous homogeneous spraying powder and high atomization quality2. Using integrated circuit, stable and reliable

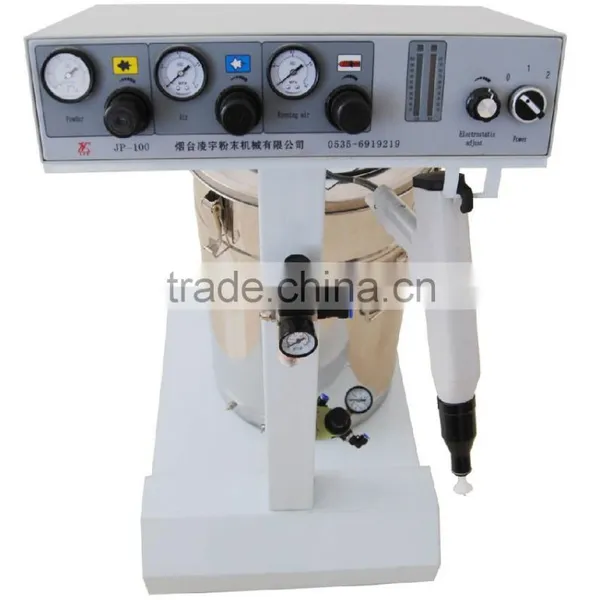

1. JP Series Spray Gun
The spray gun is used to make samples,quality control during powder coating production and also applied in small scale spray work.
Features:
* With continuous, homogeneous spraying powder and high atomization quality
* Using integrated circuit, stable and reliable
* Low static loss and high powder rate
* Equipped with specialized cleaning air blow gun
No. |
Specifications and technical data |
|
1 |
Electricity |
220v.AC, 50HZ, 50VA |
2 |
Output voltage |
0-90Kv (negative) |
3 |
Output current |
100uA (Max) |
4 |
Electromagnetic valve voltage |
220v.AC |
5 |
Switch voltage |
24v.DC, |
6 |
Air input |
pressure 0.4-0.6Mpa, 15NM3/h |
7 |
Component of air |
water vapor content less than 1.5g/Nm3, oil vapor less than 0.1mg/ Nm3 |
8 |
Air pressure output |
0-0.4Mpa |
9 |
Output of powder |
30-40g/min |
10 |
Volume of container |
36litre(about 25kg) |
11 |
Weight of gun |
560g(not including tube and cable) |
12 |
Weight of control panel |
21kg |
13 |
Dimension |
400*1000*600(width*height*depth) |
14 |
Electricity cable |
2m |
15 |
Gun cable |
4m |
16 |
Air hose |
2m Φ8 diameter |
17 |
Powder conveying tube |
4m Φ12 diameter |
2. Company Profile

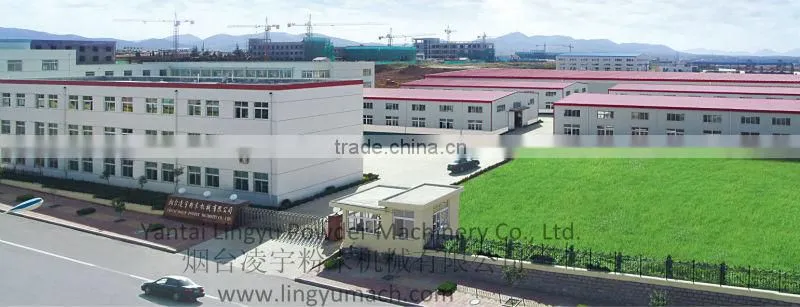

Yantai Lingyu Powder Machinery Co., Ltd.,which was founded in 1999, is specialized in researching and manufacturing powder coating processing equipment. It owns abundant technological competencies and extensive experience and has developed hundreds of models. The products have been approved European CE certificate by TUV Germany and ATEX anti-explosion certificate by Sira England.
Our aim is "Quality First, Credit First and Users First". We offer our users with full range of service, including turn-key Project, installation, formulations and all day around follow-up service and guarantee our equipment quality with precise test devices and complete procedures. We enjoy high reputation among our customers with high quality and better service.
At present, Lingyu has become a well-known supplier of powder coating processing equipment both at home and abroad with No.1 market share. Lingyu has successfully exported the equipment to more than 50 countries and regions all over the world. Over the years, Lingyu has established and kept friendly long-term cooperative relationship with many worldwide famous powder caoting manufacturers.
We sincerely welcome our customers to our company for a business visit and technical communication.
Abrafati 2013 in San Paolo, Brazil
Chinacoat 2012 in Guangzhou, China
