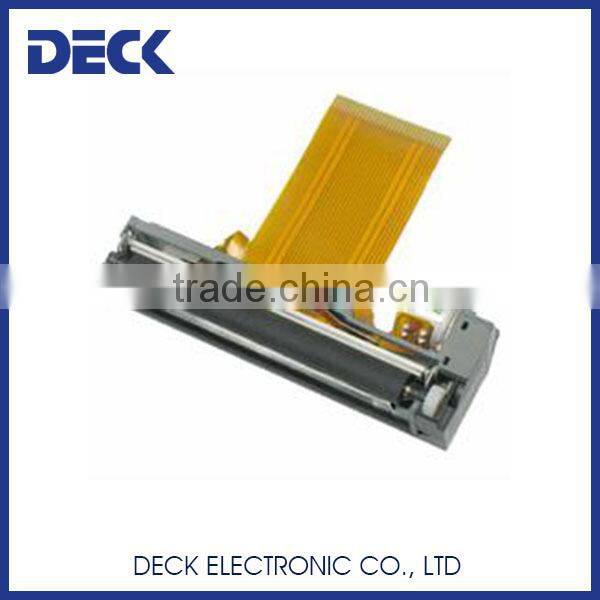

1)58mm thermal printer mechanism
a. Easier paper loading
b. Small in size & light in weight
c. Whole set metal base, metal gear shaft, stable, reliable, high-life, excellent heat dissipation
d. High speed: can reach to 80mm/s( motor drive voltage is DC 8.5V)
e. Operating power range(DC 3.5-8.5V)
f. Resolution Ration (8dots/mm)
g. brasion resistance: paper traveling distance long than 50km
h. Low noise: drive by nonmagnetic pumping step motor,Made up of high abrasion & excellent weather resistance engineering plastics gear
i.applicability: 2RA is compatible with Fujitsu printer mechanism FTP628MCL101 in install structure & power socket, is suitable for mini- thermal receipt printer & thermal cash register.
2)The status monitoring about our printer
Item |
Specification |
Model |
2RA |
Printing method |
Thermal-line dot printing |
Effective printing area(mm) |
48 |
Dot density(dot/mm) |
8 |
Dot structure |
384 dots/line |
Dot pitch(mm) |
0.125 |
Dot size(mm) |
0.125×0.12 |
|
Character dimensions (H×W), number of Columns |
12×24dot,(1.5×3.0mm),32 characters per line 24×24dot,(3.0×3.0mm),16 characters per line 8×16dot,(1.0×2.0 mm),48 characters per line 16×16dot,(2.0×2.0 mm),24 characters per line |
Maximum printing speed |
80mm/sec(motor driving voltageDC8.5V) |
Paper feed precision |
0.0625mm(one step distance) |
Paper width(mm) |
58 |
Paper thickness(μ) |
60-100 |
Head temperature detection |
Detected by thermistor |
Paper out detection |
Detected by photo-interrupter |
Operating voltage of the printing head(DCV) |
3.13-8.5 |
Logical operating voltage(DCV) |
2.7-5.25 |
Operating voltage of the motor (DCV) |
3.5-8.5 |
Operating temperature |
+0°C-50°C(no condensation) |
Operation humidity |
20%-85%RH(no condensation) |
Storage temperature |
-20°C-60°C(no condensation) |
Storage humidity |
5%-95%RH(no condensation) |
Mechanicalness noise |
Less than 60dB |
Nip roller open & close times |
More than 5000 times(an open & close is one time) |
Tractive effort to the thermal paper |
≥50g |
Braking force to the thermal paper |
≥80g |
Working life |
Abrasion resistance: paper traveling distance 50km (print ratio: 25% or less) .Pulse resistance: 100 million pulses/dot (under our standard conditions). |
Weight(g) |
40.5 |
Outline dimension (LxWxH mm) |
72×33×15.5 |

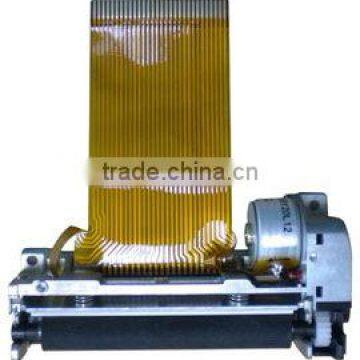

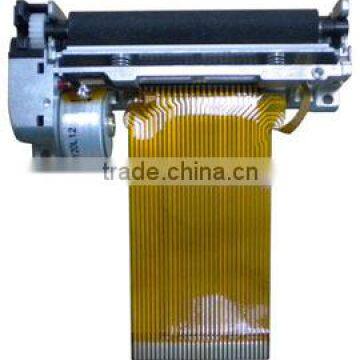

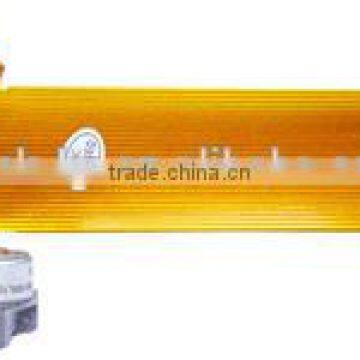

3)Below are the pictures of our other thermal printer Mechanism
4) We communicate with international friends enthusiasm
5)Why you choose us
1.Maximum productivity at an affordable price
2.Low noise thermal printing
3.Well and high-quality control
4.Prompt delivery
5.We are honored to offer you samples in advance
6.Made you buying decision easier than ever before
6)Our corporation
Deck Electronic Co., Ltd is a professional Point of sale hardware company , our excellent quality good service has won great popularity in field of supermarket, shopping center, retail market and relate industries. main products is cash drawer, thermal printer, label printer, Security system and accessories our products exported to Middle east, Europe, south america and southeast country and established good relationship with customer.Hope we start our win-win long-term cooperation bring you value and we stand by for your inquiry at any time.
7)If you think we can meet your requirements, you can contact us
Contact Person: Ms. Sunnie Pan
Skype: sunnie-pan
Add:11 -3102,Dingyao Huayuan,No.168,Tiyuchang Road,Kunshan,Jiangsu,China
Tel:0086-0512-36833044
Mobile Phone:15850359176
Website Address (URL): http://deck-ks.en.china.cn
