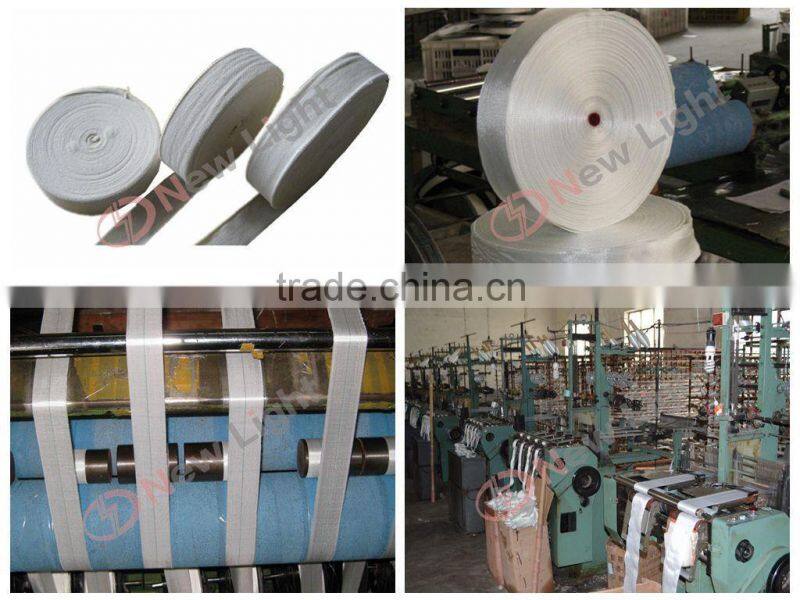

woven fiberglass tape

Specifications

Specification
Thickness:0.1mm-0.25mm
Width:10-150mm
Length:30m,50m,100m,200m

 Fiberglass tape is weaved by non-alkali fiberglass yarn, with good thermal resistant and insulation features, which is widely used for windings of motor and transformer.



Thickness: 0.10mm, 0.13mm, 0.15mm, 0.20m, 0.25mm

Width: 10mm, 15mm, 20mm, 25mm,30mm, 50mm...100mm , 150mm

Length: 30m, 50m, 100m, 200m



Density: Warp 27 +/-1 strand/cm

Weft: 15 +/-1 strand/cm

Tensile strength: 400N/20mm



Package: 5 rolls or 10 rolls in one  heat shrinkable film bag
