PVC Fiberglass Insulation Sleeves 2715

PVC Fiberglass Insulation Sleeves 2715 photo-1
PVC Fiberglass Insulation Sleeves 2715 photo-2

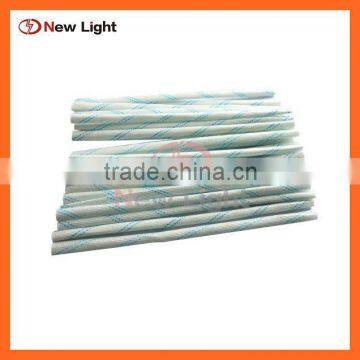

PVC Fiberglass Insulation Sleeves 2715 photo-3
PVC Fiberglass Insulation Sleeves 2715 photo-4

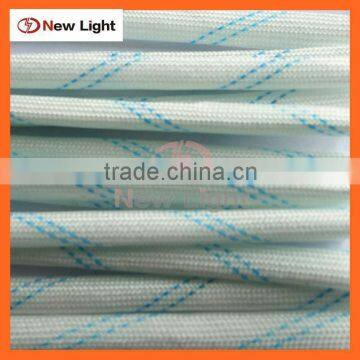

PVC Fiberglass Insulation Sleeves 2715 photo-5
PVC Fiberglass Insulation Sleeves 2715 photo-6
US$ 0.001 - 0.6 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
New Light
Model Number:
2715
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Ninbo/Shanghai/Qindao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name New Light
Model Number 2715
Type Insulation Sleeving
Material Fiberglass
Application High Voltage
Rated Voltage 1.5-4.0kv

pvc electrical insulation sleeving 2715

electrical insulation sleeving



Fiberglass Sleeving



PVC fiberglass sleeving is fiberglass sleeving coated with PVC resin, with very good flexibility and dielectric features, it is widely used as insulating and protection material for motor and electric appliance.

Specifications:



Diameter: 0.5mm---40mm Breakdown

 voltage: 1.5KV, 2.5KV, 4KV, 7KV

 temperature range: -25 C ~ 130C;

Colour:  red line,  green line, blue line and all kinds of color



Package:

It could be 1meter per piece, 100meters per roll, or according to clients' request.

With bags or cartons.Other packing is available





 Technology Data of 2715 pvc resin fiberglass sleeving



Inner Diameter (mm)Wallthickness
StandardTolerance(±)Min.Max.
0.5,0.80.10.20.5
1.0,1.50.150.20.75
2.0,2.50.20.20.75
30.250.20.75
3.5,4.0,5.00.250.30.75
60.250.31
7.0,8.00.50.31
9.0,10.0,12.0,14.0,16.0 ,18.0,20.0,22.0,25.0,30.00.50.41.3

PropertyIndexCondition
Flexibility after heatingPVC layerno crack or spalling130±2°C,48hours
Flexibility at low temperaturePVC layer no crack or spalling25°C,1hours
Index of temperature105°C
Breakdown Voltage:2.5KV (average)Room temperature



 PVC fiberglass insulation sleeves 2715
