Bakelite rod 3721

FOB Price

USD $2 - $4.5 / Kilogram

300 Kilograms(Min.Order)

Supply Ability 100 Ton / Tons per Month
Port Tianjin/Qingdao/Ningbo/Shanghai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	New Light
Model Number	3723/3724/3725/3726	Type	Other, insulation rod
Material	Other, cotton cloth and phenolic resin	Application	High Voltage
Rated Voltage	10kv	Tensile Strength	110mpa

Product Description

Specifications

Specifications
1.Length:1m
2.Dia: 8mm-200mm
3.Good quality and fast delivery .
4.Good processing property

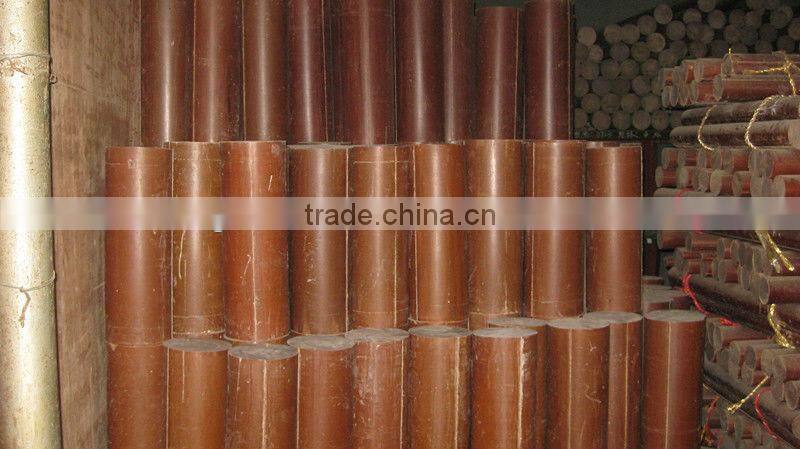

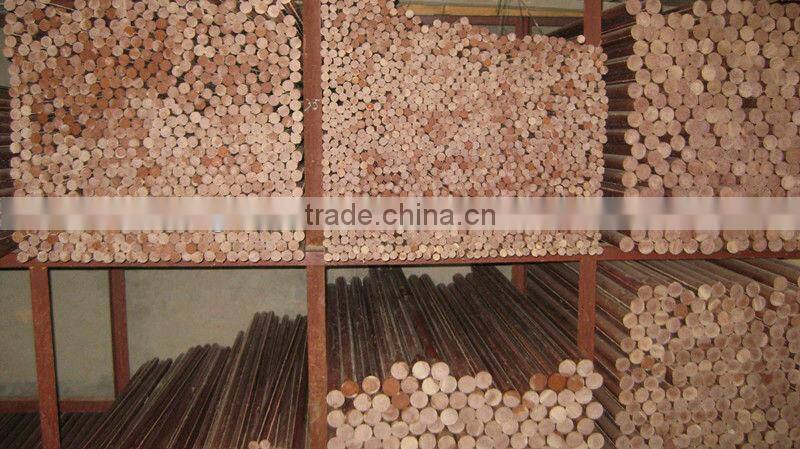

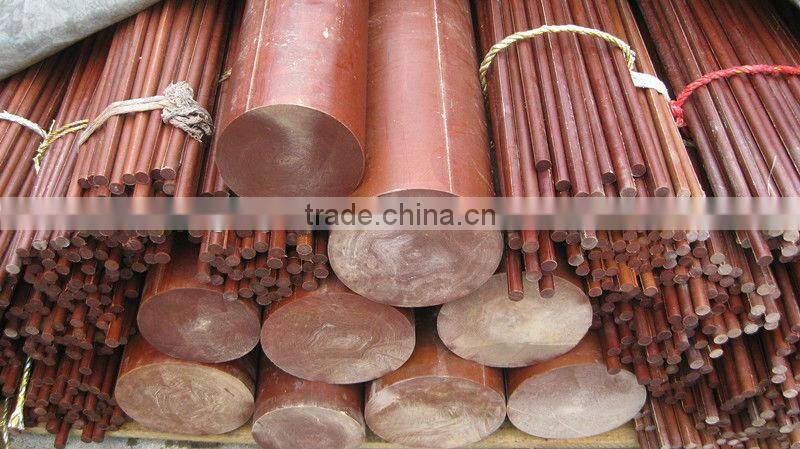

Phenolic cotton cloth laminated rod

Phenolic cotton rod

phenolic rod

Remarks: customer's special requirements on specifications could be negotiated case by case.

3723/3724/3725/3726 phenolic cotton cloth laminated rod

1. used for kinds of insulating spare parts.

2.Diameter:8-200mm

3723/3724/3725/3726 phenolic cotton cloth laminated rod

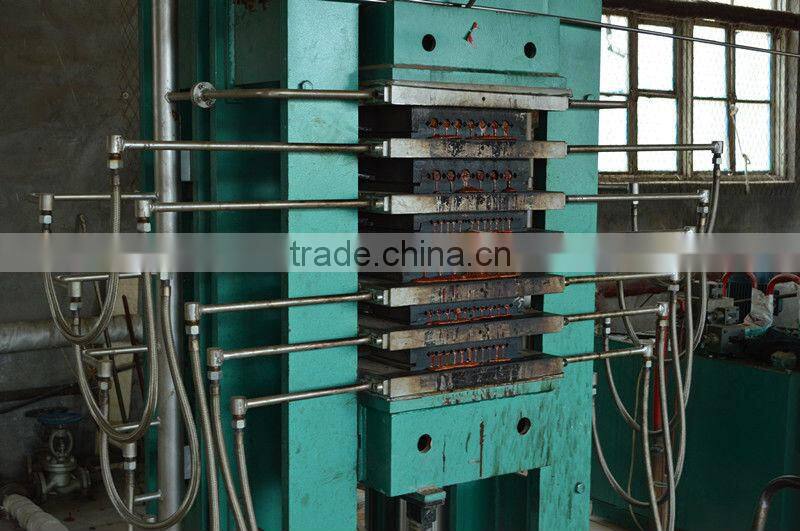

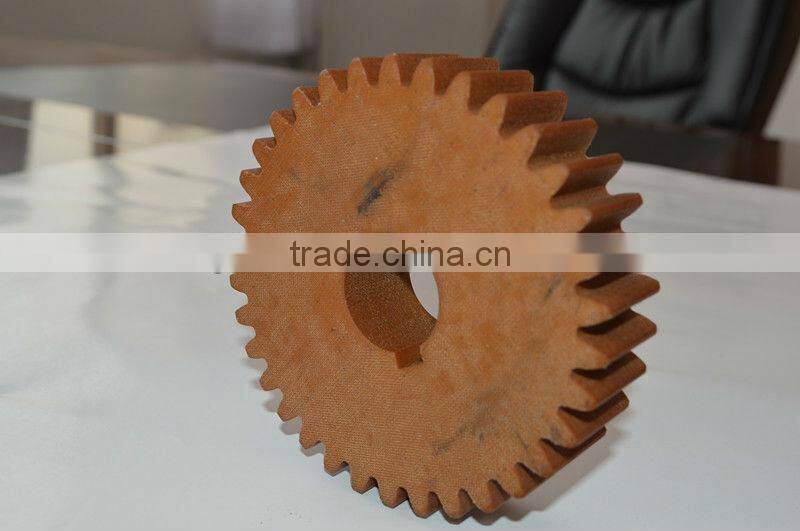

1. Description: 3723/3724/3725/3726 phenolic cotton cloth laminated rod is Created from cotton cloth that has been impregnated with phenolic resin under pressure and heat. The products have good mechanical and dielectric properties ,and excellent machinability. The products are suitable for long lasting gears, pinion, bearing, bushing and many structural applications with the advantages of quieter and more economical than metal parts .

2. Specification:

1). Dia.: 8-200mm; Length: 1000mm;1030mm;980mm

2). We can supply different quality according to customers requirements.we can supply 3723,3724,3725,3726;

3).Length:1m

4).Delivery time:15 days.

3.standard color: Brown ,Black

Product technology:

Properties				Grade
Properties				Phenolic Cotton Cloth laminated Rod
Properties	Units			3723	3724	3725	3726
Density		Dia(mm)	g/cm3	1.25-1.40	1.25-1.40	1.25-1.40	1.25-1.40
Water absorption rate (D-24/23)	≤	6	%	1.7	1	1.2	1
		13		1.3	(Φ13mm)	(Φ13mm)	(Φ13mm)
		25		1
	>	25~51		1.2
Flexural strength	≥		MPa	90	95	110	95
Tensile strengh	≥		MPa	78
Compression strength (Axial)	≥		MPa	138	138	138	138
Insulation resistance parallel to laminations
A: Under normal condition	≥		W	1.0×108
D-24/23: Immersion in water	≥		W
Breakdown voltage parallel to laminations (in transformer oil)	≥		KV	10	10	10	10
	≥		KV	(20±5°C)	(20±5°C)	(20±5°C)	(20±5°C)
Flammability			—	—	—	—	—
Color			—	Natural	Natural	Natural	Natural
Reference standard			—	Enterprise Standard

Application: Used as insulating structural parts in machine, electrical equipment, also used under humidity environment and in transformer oil
