Home > Construction & Decoration > Heat Insulation Material > Glass Wool > Epoxy Fiberglass Tube/fr4 Tube
US$ 2 - 6
MOQ: 50 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
NEW LIGHT
Model Number:
3640
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Henan, China
Brand Name
NEW LIGHT
Model Number
3640
Type
Other, Insulation tube
Material
Other, Fiberglass and epoxy resin
Application
High Voltage
Rated Voltage
5000v

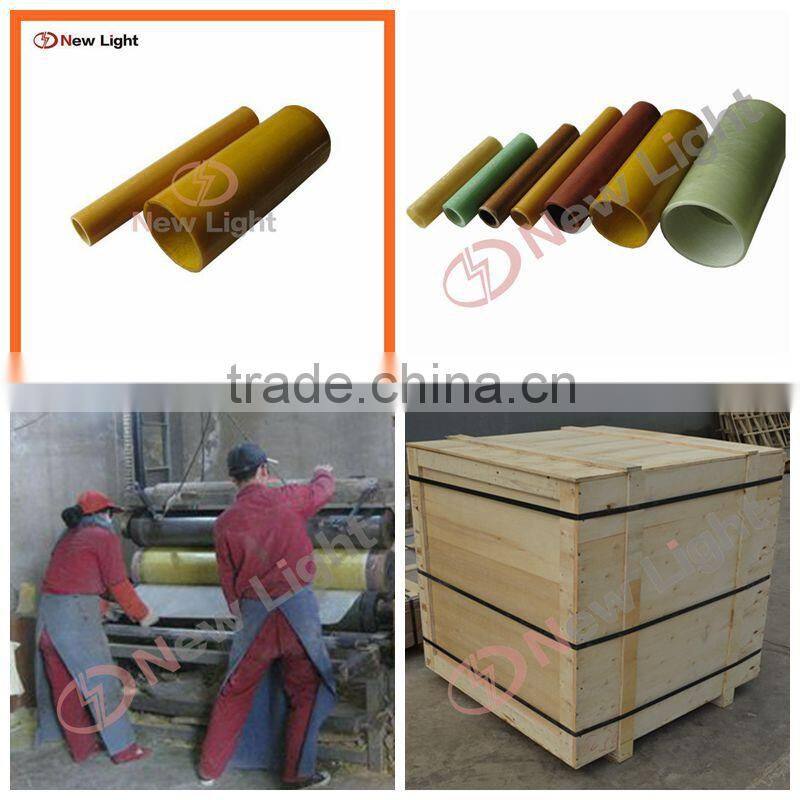

3640 Epoxy Fiberglass Laminated Tube
1.Raw Materials: Alkali-free fiberglass cloth, epoxy and phenolic resin
2. Nominal ID of tube: 8---1200mm
3. Length: 1000mm
5. Class B and class F.
6. Application: Epoxy tube is used as insulating structural part for electric machine and apparatus equipments.
| NO | Properties | Units | request | result | ||
| 1 | Density | g/cm3 | ≥1.65 | 1.7 | JB/T8150-1999 | |
| 2 | Water absorption rate | Mpa | ≤0.6 | 0.6 | JB/T8150-2000 | |
| 3 | Thermal stability(150°C/24h) | / | / | JB/T3172-1999 | ||
| 4 | Electric strength perp (In oil 90°C ) | MV/m | ≥8 | 8 | JB/T8150-1999 | |
| 5 | Insulation resistance parallel to laminations | Under normal condition | Ω | / | 5.5*1013 | GB/T1304-1999 |
| Immersion in water 24h | / | 1.9*109 | ||||
| 6 | Volume resistivity | Ω.m | / | 2.4*1013 | GB/T1410-2000 | |
| 7 | Dissipation factor | / | / | 8.1*10-3 | JB/T3172-1999 | |
