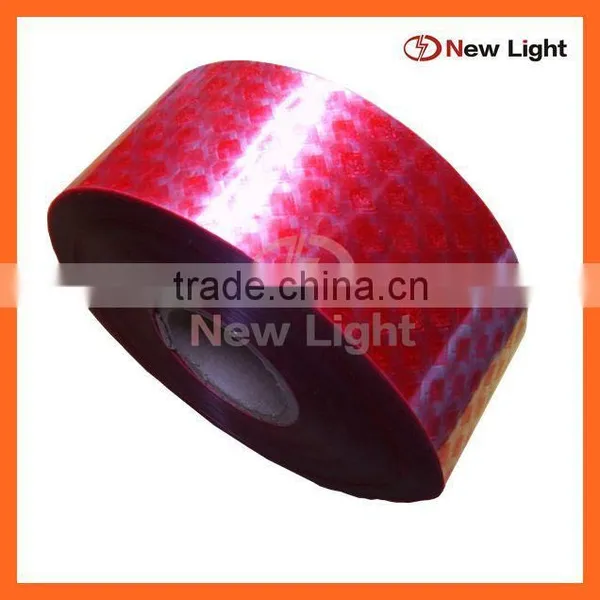

Diamond Dotted Pattern Resin Coated Polyester Film
US$ 1.5 - 3
MOQ: 500 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
New light
Model Number:
ddp film
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai/Ningbo/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Insulation Polyimide FilmUS$ 15 - 100MOQ: 100 Kilograms -
Milky White 6021 Mylar Insulation Film for MotorUS$ 1.4 - 2.1MOQ: 100 Kilograms
-
PET Film Mylar FilmUS$ 1.4 - 2.1MOQ: 100 Kilograms
-
Polyester Film for Electrical InsulationUS$ 1.4 - 2.1MOQ: 100 Kilograms
-
6021 Milky White Polyester FilmUS$ 1.4 - 2.1MOQ: 100 Kilograms
Place of Origin
China
Brand Name
New light
Model Number
ddp film
Type
Insulation Film
Material
Other, polyester film and epoxy resin
Application
High Voltage
Rated Voltage
6500v
Specifications
Specifications1.Class F
2.Thickness:0.075,0.10,0.125
3.Colour:Red
Diamond Dotted Pattern Resin Coated Polyester Film is made of electrical insulating pet film and epoxy resin with diamond pattern dotted on both sides. Long term insulated structural,good electrical mechanical properties,no deformation after thermosetting.
Application:
It is mainly used for transformer layer insulation and turn insulation.
Data:
Properties |
Unit |
Values |
||
0.05mm |
0.07mm |
0.10mm |
||
Base thickness |
mm |
0.05 ± 0.05 |
0.07 ± 0.10 |
0.10 ± 0.10 |
Tensile strength |
MPa |
≥150 |
||
Coating thickness ( single layer) |
um |
15≤δ≤20 |
||
Substance |
g/m2 |
82 ± 3 |
108 ± 3 |
150 ± 3 |
Hot shrinkage |
% |
≤1-3 |
||
Breakdown voltage @50HZ |
V |
≥6000 |
≥6500 |
≥7000 |
Welding strength |
KPa |
≥350 |
||
