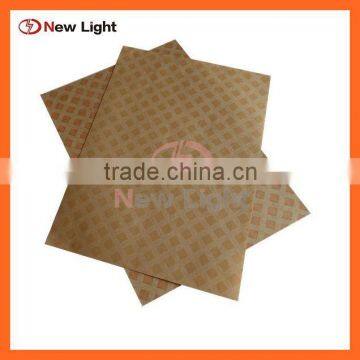

DDP DIAMOND DOTTED PAPER for transformer
Descriptions:
This insulating material should be made of kraft paper coated with heat curable epoxy resin. To be used in oil immersed transformers, for coil insulation
Specifications:
1.Thickness: 0.08mm 0.13mm 0.15mm, 0.17mm 0.20mm, 0.25mm
2.Color : Light yellow, dark brown, red or transparent
3.Density :0.85~1.10 g/cm3
4. Width: 800mm, 960mm, 1000mm, 1050mm, 1200mm, 1300mm
Features and Applications:
-Good dielectric properties and mechanical propeties after being heat-solidification.
-As interturn insulation for coils of transformers interlayer insulation of distribution transformers.

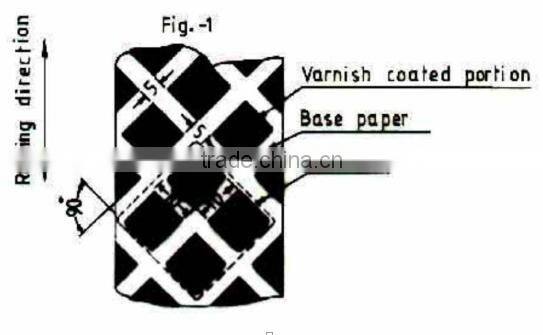

-It is to be used in oil-immersed transformers for the insulation between of coils Diamond dotted paper(DDP) is made of insulating paper with diamond-shape epoxy resin dotted on both sides. The epoxy used in D.D.P contains a kind of incubative hardener material. It is a dry and crisp material at normal temperature.
This product has good dielectric properties and good mechanical properties after heat solidificationnd between layers of oil immerged power distribution transformers.
| Item | Index. | Unit | Value | |||||
| 1 | Thickness and tolerance | mm | 0.08±0.005 | 0.13±0.007 | 0.18±0.010 | 0.20±0.010 | 0.25±0.010 | |
| 2 | Density | g/cm3 | 0.85~1.10 | |||||
| 3 | Single thickness | μm | 10~15 | |||||
| 4 | Moisture content | % | 4.0~8.0 | |||||
| 5 | Oil-absorption | % | ≥20 | |||||
| 6 | Bond strength | at room temp. | kPa | ≥650 | ||||
| 100°C±2°C | ≥400 | |||||||
| 7 | Pollution for transformer oil | - | no pollution | |||||
| 8 | Tensile Strength | lengthwise | N/10mm | ≥60 | ≥110 | ≥160 | ≥180 | ≥230 |
| crosswise | ≥30 | ≥50 | ≥70 | ≥80 | ≥100 | |||
| 9 | Tearing Strength | lengthwise | Mn | ≥450 | ≥900 | ≥1350 | ≥1500 | ≥2000 |
| crosswise | ≥500 | ≥1000 | ≥1500 | ≥1700 | ≥2300 | |||
| 10 | Breakdown voltage | in air | KV | ≥0.88 | ≥1.37 | ≥2.00 | ≥2.10 | ≥2.25 |
| in oil | ≥4.40 | ≥7.00 | ≥9.00 | ≥9.80 | ≥11.50 | |||
