UNIWISE CHEMICAL
Glossy BOPP Thermal Laminating Film for Paper

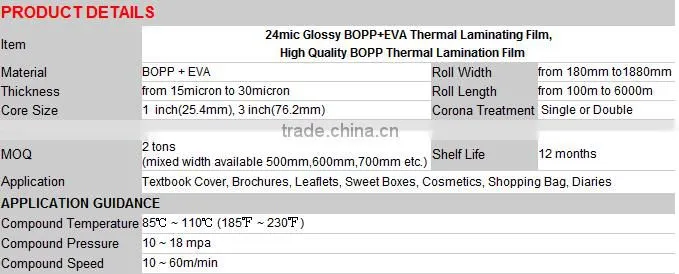

PRODUCT DESCRIPTION

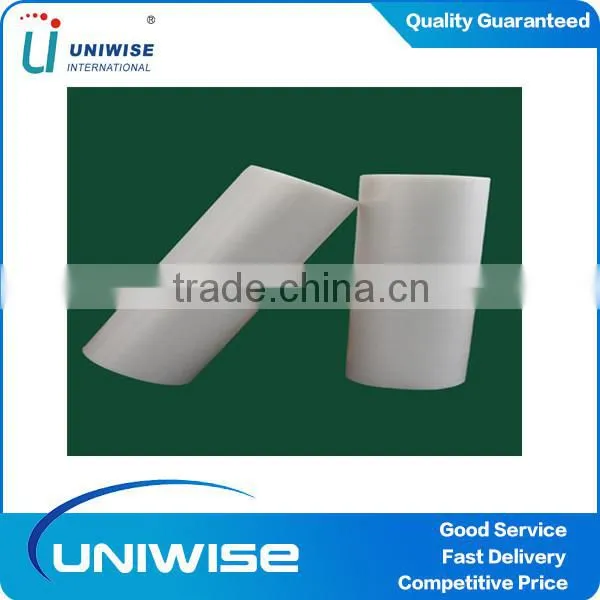

Name: Glossy BOPP Thermal Laminating Film for Paper
Material: BOPP + EVA
Thickness: 15um,17um,18um,20um,22um,25um,27um
Corona Treatment: Double or single side, above 42dynes
Corona Treatment: Double or single side, above 42dynes
BRIEF INTRODUCTION

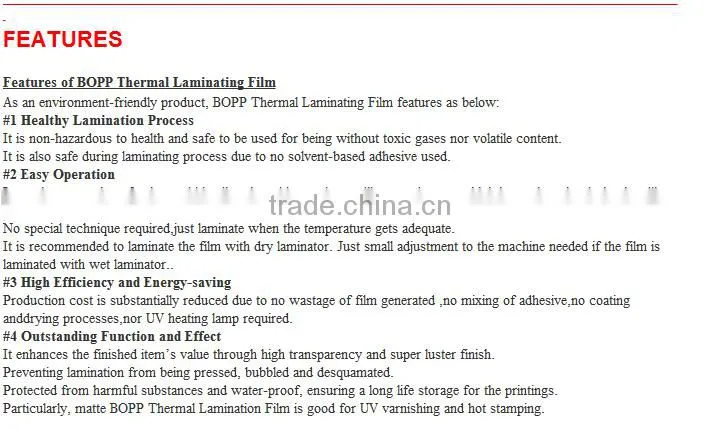

Bopp Thermal Laminating Film is an environmental material which enhances the finished item's value through high transparency and super luster finish. It could prevent lamination from being pressed, bubbled and desquamated.
Bopp Thermal Lamination Film could also protect from harmful substances and water-proof, ensuring a long life storage for the printings.
Particularly, matte BOPP Thermal L amination Film is good for UV vanishing and hot stamping as it has double corona treatment valued over 42dynes.
BOPP, abbreviation of biaxially oriented polypropylene, is the base film that we use extrusion coating process to produce thermal lamination rolls.
EVA, abrreviation of Ethyl Vinyl Acetate, is the adhesion combined with BOPP Film that enable a thermal lamination film roll adhesive.
As a Chinese manufacturer and supplier BOPP Thermal Lamination Film Roll, we serve its both types of glossy and matte.

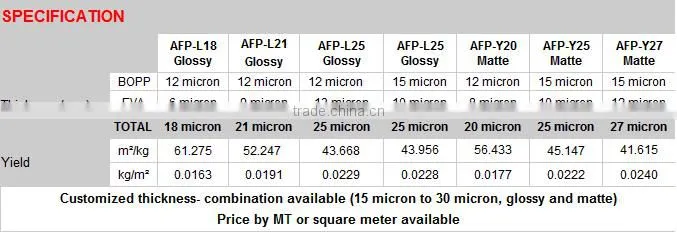

You will have the technical parameter and specifications in the following.
You are able to place an order of BOPP Thermal Lamination Film like this:

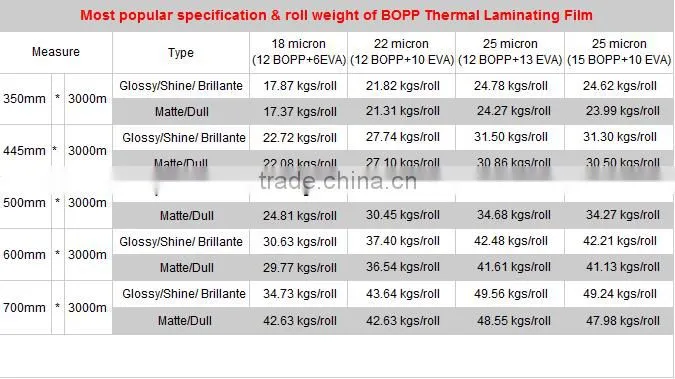

Glossy 22micron (12BOPP+10EVA)
350mm(13.8") x 3000m(9843') x 30rolls (weight 654.60kgs = 21.82kgs x 30rolls, square meter 31,500m²)
445mm(17.5") x 3000m(9843') x 20rolls (weight 554.80kgs = 27.74kgs x 20rolls, square meter 26,700m²)
Matte 25micron (15BOPP+10EVA)
350mm(13.8") x 3000m(9843') x 30rolls (weight 719.70kgs = 23.99kgs x 30rolls, square meter 31,500m²)
445mm(17.5") x 3000m(9843') x 20rolls (weight 610.00kgs = 30.50kgs x 20rolls, square meter 26,700m²)
TOTALLY 100 rolls, weight 2,539.10kgs, square meter 116,400m²
What’s BOPP Thermal Lamination Film?
BOPP Thermal Laminating Film is mainly made of BOPP + EVA.

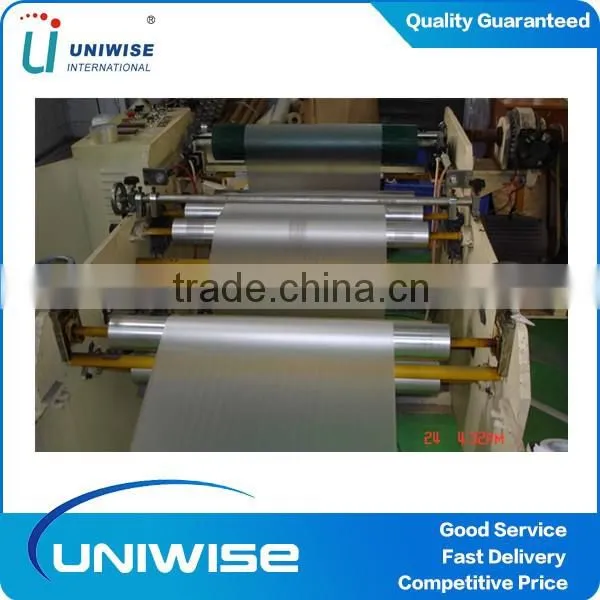

we use extrusion coating process to combine this two layers.
in the final film one side has properties of BOPP film and the other side becomes heat sensitive surface used for dry lamination.

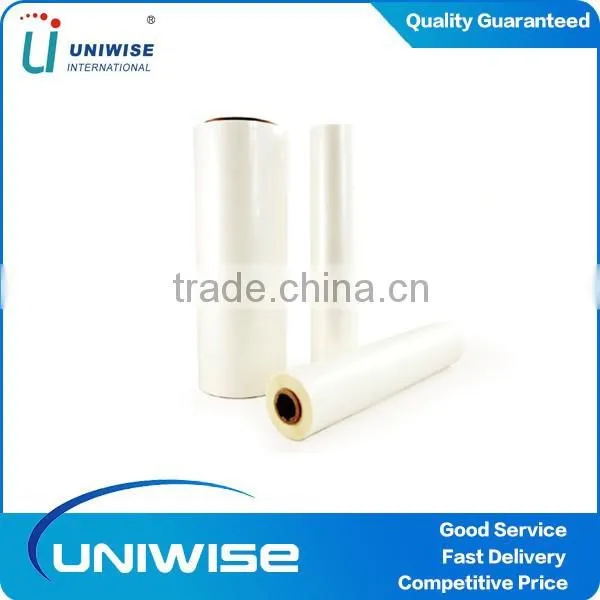

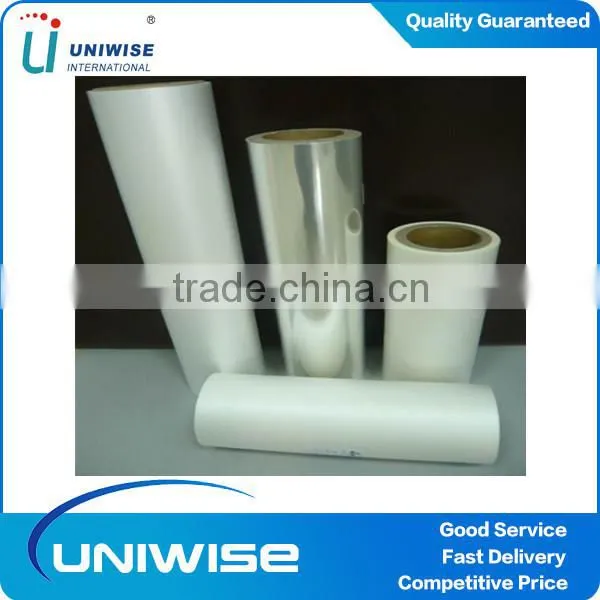

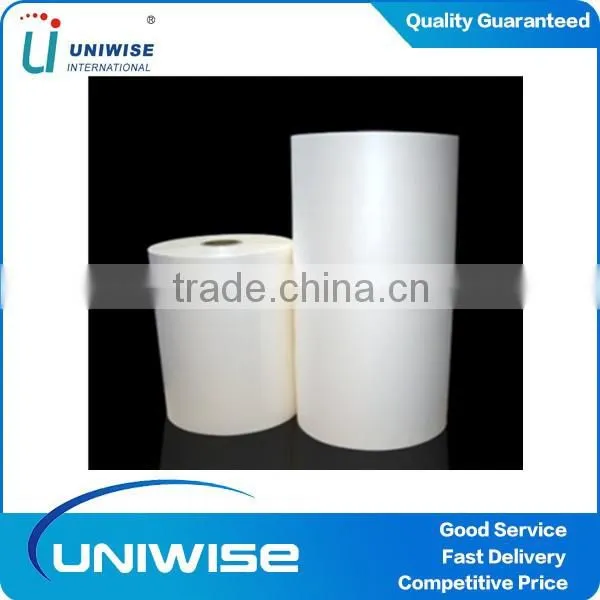

this product has two classifications: glossy/shine/transparent and matte/opaque, both of which sees thickness from 14micron to 32micron.

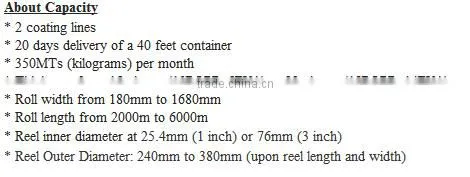

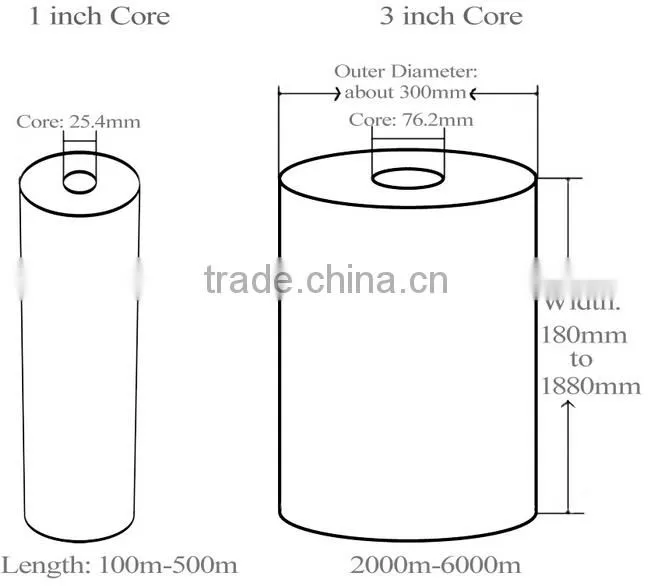

its width could be from 180mm to 1880mm and length from 150m (1 inch core, 25mm) to 4000m (3 inch core, 76mm).
Where is BOPP Thermal Laminating Film used?
the application of BOPP Thermal Laminating Film can be used to the followings:
- Textbook covers
- Brochures
- Leaflets
- Sweet boxes
- Cosmetics
- Shopping bags
- Diaries
How to use BOPP Thermal Lamination Film?
We need a laminating machine (usually called hot laminator) to use BOPP Thermal Laminating Film by melting the EVA into substrates such as paper.
during the process, the film is passed on a heated roller and under reasonable pressure it sticks to the paper.
this process is easy to use and can be done in home for small applications.
sometimes, people also call it heat lamination or dry lamination or hot lamination.
Operation Guidance
1. Adjust roller pressure and temperature according to different types of paper and ink.
2. When using the film for the first time or changing the usual size, a small trial volume before starting massive lamination is proposed.
3. Normal process temperature is 90C-105C (203F - 221F), roller pressure and temperature vary from different types of paper, ink and machines.
4. Make sure the ink is dry before laminating. It will delaminate when the paper contains too much moisture or powder.
5. Make sure to put the material in place with low temperature and dry.
6. The following situation will affect the final quality of the film during lamination.
a. Using metal ink
b. Ink containing too much wax, dried oil, adhesive, silicon additive and so on.
c. Much too thick ink
d. Ink completely not dried yet.
e. Much too humid paper sheet.
f. Too much powder on the surface
