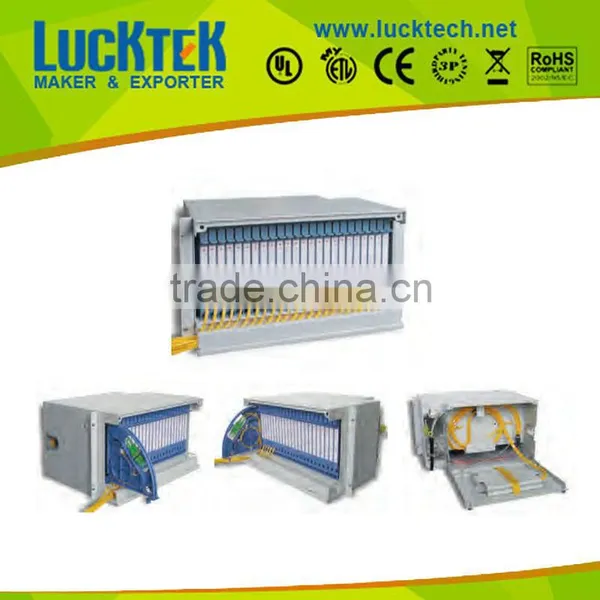

19" Optical Fiber Joint Box for 48 Core 6U

Specifications

Optical Fiber Distribution Box

Application

This Optical Fiber Distribution Box is suitable for connection, distribution in case of kinds of fiber connector.

Feature

1. 19"standard installation, adjustable position in forward and backward direction

2. Suitable for being installed in different kinds of optical distribution frame or cabinet

3. Compact aluminum body with electrostatic spraying surface, light structure and fine-looking appearance

4. Two core rotary distribution module is vertically arranged and can be rotated out of the box for easy operation, management and maintenance.

5. Fiber guiding hoops on front and rear sides protect fibers from mechanical damage, and are arranged to ensure bending radius protection. Fiber can be inserted into guiding hoop directly, no need of interlude.

6. Adapter panels are selectable with FC/SC/ST/LC type, according to requirement.

7. Plug-in style adapter panels can be exchange flexibly, easy for application and configuration.

8. Splicing module on the rear side is removable and suitable for field operation and maintenance.

9. Unique plastic retainer clips for optical fibers are attached, protecting the spliced fibers sufficiently.

10. Optical cable fixing and grounding unit is fit for different application.

Dimension and Capacity

Certifications:

Factory Show:
