Specifications
Panel mount Ethernet Extension Cable:1)High quality,Low price
2)copper conductor,Jacket on your reqeust
3)Black,white,

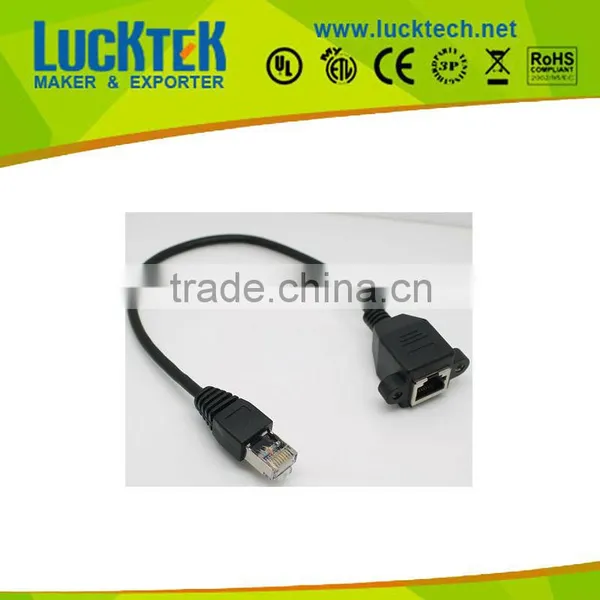

Panel mount Ethernet Extension Cable :
A---Description
This handy Ethernet extension cable will make it easy for you to enclose a device that has an Ethernet port. We think this would be most useful when putting a Beagle Bone, Raspberry Pi, Arduino Ethernet into a box.
The jack half has two mounting 'ears' with M3 screws installed, .985" inch / 25mm apart. The ears are flexible so the holes don't have to drilled very precisely. Can be used with box walls up to 0.25" wide. The screws can be put on from the back for 'reverse' mounting if the box thickness is a problem. Entire unit is 12" long (9" cabling between jack and RJ45 Ethernet connector).
B---Electrical Test
* 100% open & short test
* Hi-Pot: DC 300V 10ms
* Insulation Resistance: 10M OHM /300V Min.
* Contact Resistance: 0.01 OHM Max.
* Shield up to 65% braid.
* Working Temperature: -25oC ~ +85oC
* Connecting your network attached storage, network printer, and other networked devices to your Local Area Network (LAN).
* 50-micron gold-plated RJ45 male to female connectors. Perfectly used with 10 Base-T, 100 Base-T and 1000 Base-T networks.
* Connector Details: 1xRJ45 Male, 1x RJ45 Female.
* Lifetime Warranty.
* Eexcellent performance, flexibility and elasticity in the area of chemical, mechanical, heat and light etc.
| cable Features | Nikel plated connectors |
Cable Key Features (AH): |
Molded |
Cable Subcategory: |
RJ45 |
Connectivity Left Connector Type: |
Standard RJ45 |
Connectivity Right Connector Type: |
Standard RJ45 |
Left Connector Gender: |
male |
Right Connector Gender: |
female |
Technology: |
Double shielded |
