Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Green Striped Connector
US$ 0.05 - 0.8
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LUCKTEK
Model Number:
LK-NA-010
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
LUCKTEK
Model Number
LK-NA-010
Type
Adapter
Application
Other
Gender
Other
Specifications

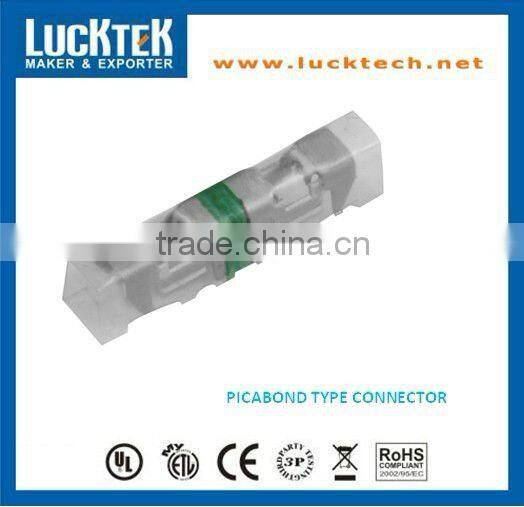

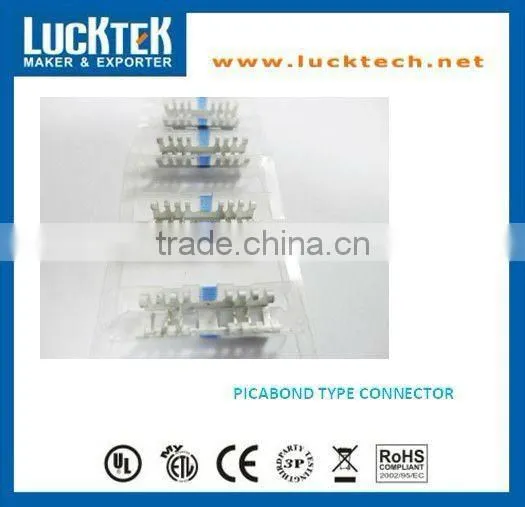

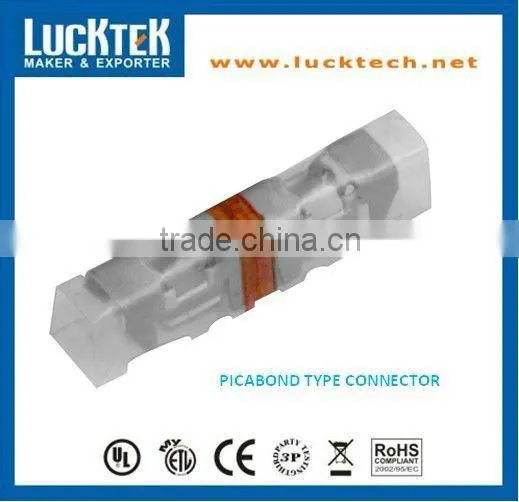

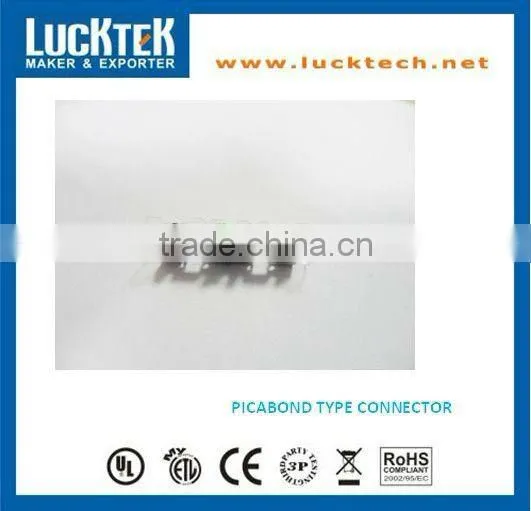

Green Picabond Standard Connector 22/26 1000/TubPICABOND CONNECTOR W/GREEN STRIPE
PICABOND connectors provide an economical and reliable means of splicing multiconductor
telephone cable.
PICABOND connectors are manufactured from tin-plated phosphor bronze and tin-plated brass with bonded polyester insulation. Color coding of the insulation is provided to denote wire size and weather-resistant type. Any solid core wire, 28 to 19 AWG (0.32 – 0.90 mm), with pulp, paper or plastic insulation can be spliced.
Lightweight and compact, PICABOND splices reduce the space required over other splicing techniques by up to 33%. Straight, butt, tap, and bridge splices can be made with these connectors.
Advantages
- Saves time – no prestripping or cutting required can tap without service interruptions, eliminates “turndowns”
- Versatile – Color-coded to indicate size and type of wire, used for butt, straight, bridge and half-tap applications.
- Economical – Lower applied cost, minimum training required, higher application rates
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2007
Factory Size
10,000-30,000 square meters
Total Employees
51 - 100 People
