Specifications
n-line coupler,rj45-rj45,stp cat5e keystone jackFactory,Manufacturer
CE,FCC,RoSH
OEM,ODM is Welcome
Stp cat5e coupler specification:
Cat5e STP Colorful Keystone Jack, High Quality Cat5e Keystone Jack,Cat5e Rj45 Keystone Jack,
Cat5e Keystone Jack

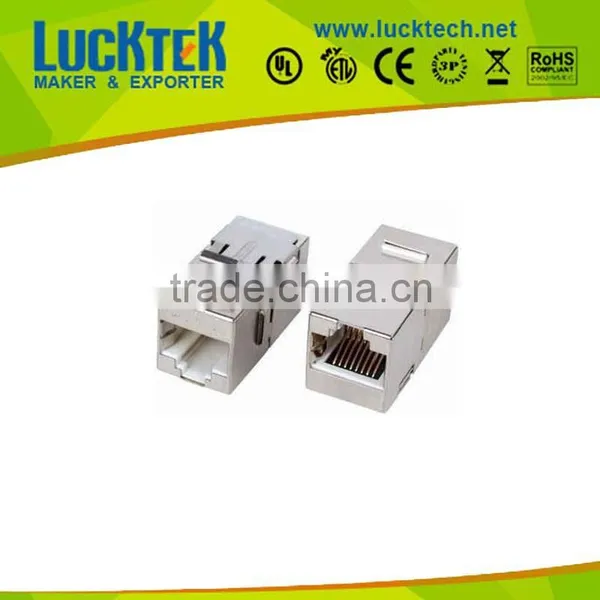

In-line Coupler,RJ45-RJ45
3u"~50u" gild plating available
ABS material
Fluke test report available
OEM service available
Meets ANSI/TIA/EIA-568-B.2 category 5e/6
Meets TIA/EIA TSB-40
Meets ISO/IEC generic cabling standard 11801
Meets CENELEC generic cabling standard EN50173
| electrinic | Voltage Rating :125 VAC RMS |
Current Rating : 1.5AMP | |
Contact Resistance:110 Milliohs MAX. | |
Insulation Resistance:1 000 megohms MIN 500 VDC | |
Dielectric Strength :750 VAC RMS 60Hz ,1 MIN | |
| Environment | Storge: -40~ 85°c |
Operation: 0~70°c | |
| Machanical | Housing Material: PBT-UL90V-0 |
Panel Fram: Carbon Steel, Powder Coating in black color | |
Contact Material: PC-UL90V-0 | |
Contact: Phosphor Bronze with Nickel Plating | |
RJ45 Jack:IFE:750 times MIN. | |
IDC Life :200 times MIN. | |
Wire:AWG 24-26 | |
Tia Cat.5e Perm Link Test: Worst Pair NEXT Margin ≥3dB | |
Retentiveness of insertion structure:50N 60±5s |
