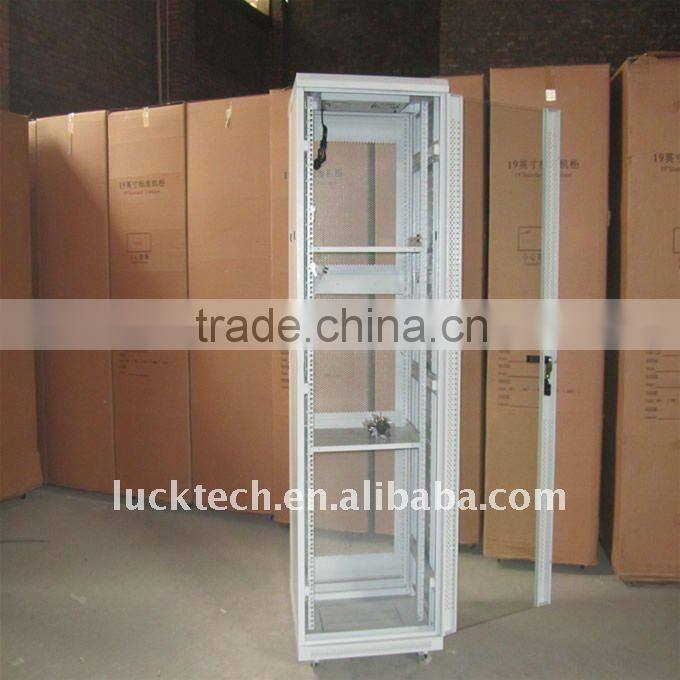

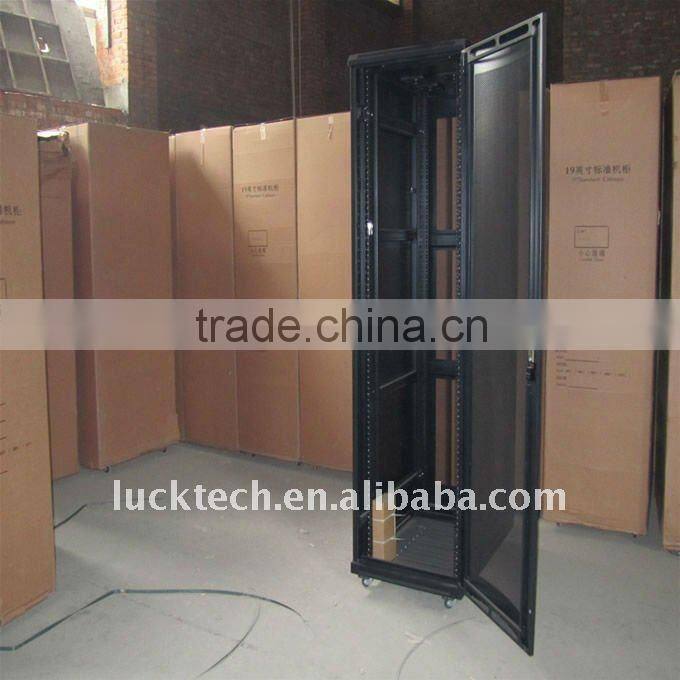

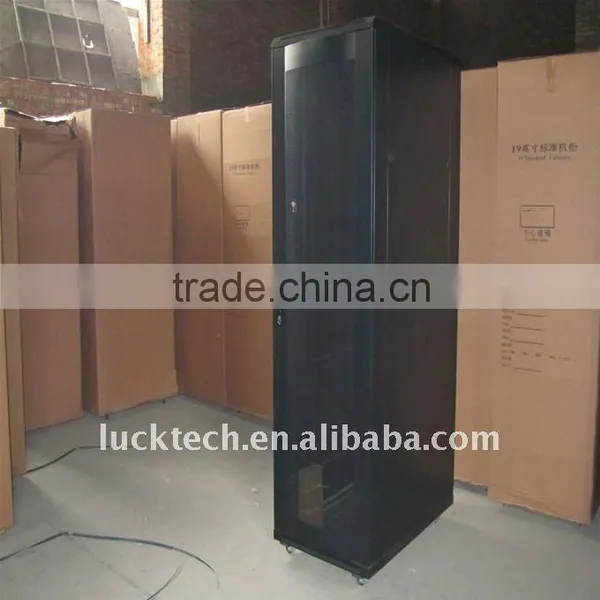

JS-D 42u Network Switch Cabinet

JS-D 42u Network Switch Cabinet thumbnail-1
JS-D 42u Network Switch Cabinet photo-1
US$ 300 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LUCKTEK
Model Number:
LK-CB-057
Contact Supplier Request Quote Chat Now
Ningbo Lucktech Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LUCKTEK
Model Number LK-CB-057
Protection Level Other, IP20
Type Network Cabinet
External Size 19'' 42U

Specifications

Offer network/server cabinet/rack: 6U,9U,12U,18U,22U,25U,27U,32U,42U,45U,47U,48U....



JS-D 42u Network Switch CabinetJS-D 42u Network Switch Cabinet

JS-D   Server    Cabinet

Feature:

Exquisite design with precise craftsmanship;

Welded steel frame for front and back part, can be flat packing, easy to transfer;

Steel front and rear door with over 180 turning degree; without holes;

Removable side panel with latch, easy to install, optional lock;

Adjustable feet and castors sre available simultaneously;

Cable entry on the top, adjustable cable entrance at the bottom with panel;

Advanced handle locks for front door, optional other lock;

S-shaped mounting profile, free to move forward and back;

Efficient baying kit of cabinet, Earthing kit

Optional plinth to fix cabinet on the floor; under base cable entry;

Various optional accessories for common using;

Unassembled packing, about 2/5 of original volume, save container space;

Standard:

Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART 7, ETSI Standard

Material:

SPCC quality cold rolled steel

Others: SPCC quality cold rolled steel

Thickness: Mounting profile: 2.0mm; Mounting angle: 1.5mm; other: 1.2mm

Loading Capacity:

Static loading: 800kg (on the adjustable feet)

Degree of protection:

IP20

Surface finish:

Degreaseing, Pickling, Phosphating, Powder Coated

Model Information:

Model No. Capacity
(U)		 Width × Depth
(mm)		 Model No. Capacity
(U)		 Width × Depth
(mm)
LK-CB-JA6618 18 600 × 600 LK-CB-JA6637 37 600 × 600
LK-CB-JA6818 600 × 800 LK-CB-JA6837 600 × 800
LK-CB-JA6918 600 × 900 LK-CB-JA6937 600 × 900
LK-CB-JA6018 600 × 1000 LK-CB-JA6037 600 × 1000
LK-CB-JA6622 22 600 × 600 LK-CB-JA6642 42 600 × 600
LK-CB-JA6822 600 × 800 LK-CB-JA6842 600 × 800
LK-CB-JA6922 600 × 900 LK-CB-JA6042 600 × 1000
LK-CB-JA6022 600 × 1000 LK-CB-JA6242 600 × 1200
LK-CB-JA6627 27 600 × 600 LK-CB-JA6645 45 600 × 600
LK-CB-JA6827 600 × 800 LK-CB-JA6845 600 × 800
LK-CB-JA6927 600 × 900 LK-CB-JA6045 600 × 1000
LK-CB-JA6027 600 × 1000 LK-CB-JA6245 600 × 1200
LK-CB-JA6632 32 600 × 600 LK-CB-JA6647 47 600 × 600
LK-CB-JA6832 600 × 800 LK-CB-JA6847 600 × 800
LK-CB-JA6932 600 × 900 LK-CB-JA6047 600 × 1000
LK-CB-JA6032 600 × 1000 LK-CB-JA6247 600 × 1200

Model No. Capacity
(U)		 Width × Depth
(mm)		 Model No. Capacity
(U)		 Width × Depth
(mm)
LK-CB-JA8618 18 800 × 600 LK-CB-JA8637 37 600 × 600
LK-CB-JA8818 800 × 800 LK-CB-JA8837 600 × 800
LK-CB-JA8918 800 × 900 LK-CB-JA8937 600 × 900
LK-CB-JA8018 800 × 1000 LK-CB-JA8037 600 × 1000
LK-CB-JA8622 22 800 × 600 LK-CB-JA8642 42 600 × 600
LK-CB-JA8822 800 × 800 LK-CB-JA8842 600 × 800
LK-CB-JA8922 800 × 900 LK-CB-JA8042 600 × 1000
LK-CB-JA8022 800 × 1000 LK-CB-JA8242 600 × 1200
LK-CB-JA8627 27 800 × 600 LK-CB-JA8645 45 600 × 600
LK-CB-JA8827 800 × 800 LK-CB-JA8845 600 × 800
LK-CB-JA8927 800 × 900 LK-CB-JA8045 600 × 1000
LK-CB-JA8027 800 × 1000 LK-CB-JA8245 600 × 1200
LK-CB-JA8632 32 800 × 600 LK-CB-JA8647 47 600 × 600
LK-CB-JA8832 800 × 800 LK-CB-JA8847 600 × 800
LK-CB-JA8932 800 × 900 LK-CB-JA8047 600 × 1000
LK-CB-JA8032 800 × 1000 LK-CB-JA8247 600 × 1200
