Help CenterLCD CABLE TESTER
Related Products
Specifications
1) LCD CABLE TESTER2) Checks wiring error in lan, coaxial and telephone cables
3) Far end testing
4) CE,RoHS

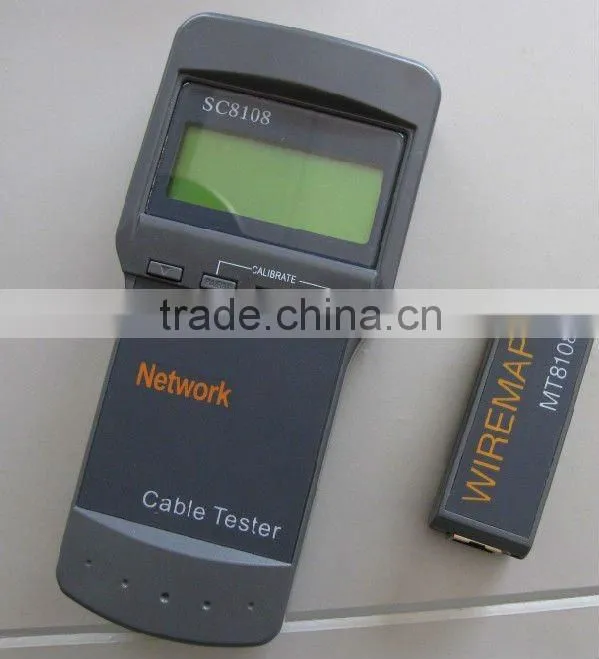

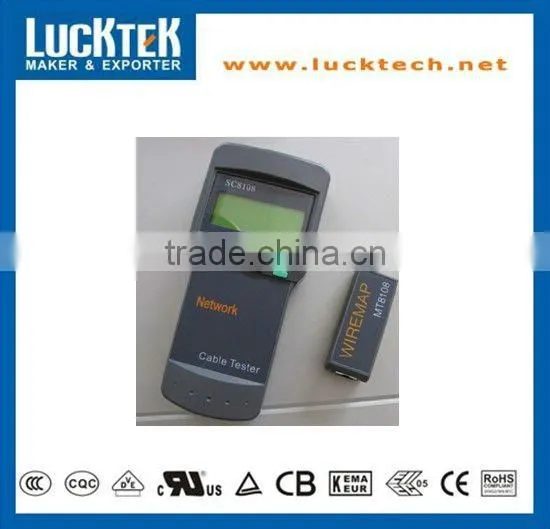

A) LCD CABLE TESTER
B)Network Cable Tester is a powerful special tool to prevent and solve cable installation problem. Network cable tester is the best choice to verify any speech and data cable installation procedure. The tester is capable to have a number of tests such as cable connection sequence, length , user jumper and cable connection continuity and determine any open circuit, short circuit, jumper or cross-talk interference. It is a useful tool to reduce cable installation cost and save cable installation time.
C)Product features:
1. One person enough to complete cable continuity check
2. Checks wiring error in 5E, 6E, coaxial and telephone line
3. Such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
4. Locates the wiring or connection error
5. Measures cable length and determines the distance of open circuit and short circuit
6. Dynamically calibrates cable length and makes length measurement as accurate as 97%
7. Simple and easy use, big screen to display test clear
8. Portable unit with long battery life (wait-case 50 hours)
9. Automatically time-delay shut off
10.Measures length and pair with or without far-end recognizer
11. Locates cable and there are 8 far-end passive test jacks (ID no.: ID1 - ID 8)
12. Far-end recognize with prompting voice
13. Self-checking function and automatically compensates any change in battery capacity or ambient temperature
14. Single board computer software watchdog design and reliable operating
Technical parameters:
Overall Dimension:180 80 40mm
Power Supply: 4 1.5V Size AA batteries with power consumption 16mA
