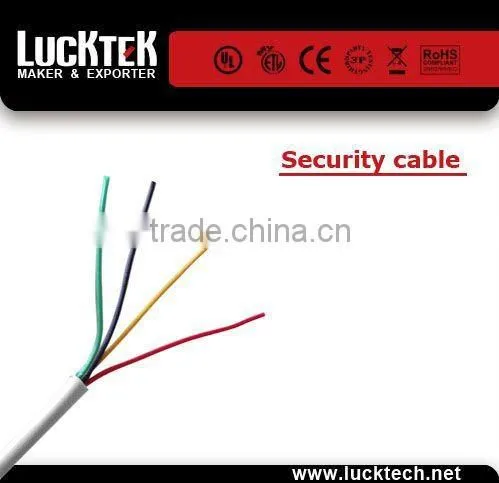

4C security cable Specifications
Alarm cable
Security Alarm Cable.
PVC Insulated and Jacketed
Shield Security Alarm Cable
Alarm cable
shield or unshield
solid or stranded
1) CONDUCTOR
* Raw material of the conductor: Bare coper & CCA
* Conductor Dia.: 7/0.20±0.003mm
2) INSULATION
* Raw material of the conductor: PVC
* Quantity:4 twisted pairs
Blue; Green; white
Red; Yellow; Black;
* Insulation Dia. : 1.0±0.005mm
* Average thickness: 0.25 mm
*Minimum point thickness: 0.2475mm
3) Separator: PE tape
4) Drain wire: O.D. 7/0.20mm CCA wire
5) Overall screen: AL foil
3) Rip cord
4) SHEATH
* Sheath material: PVC
* Nominal Dia.: 4.70 ± 0.2mm
* Average thickness: 0.50mm
* Minimum point thickness: 0.40mm
