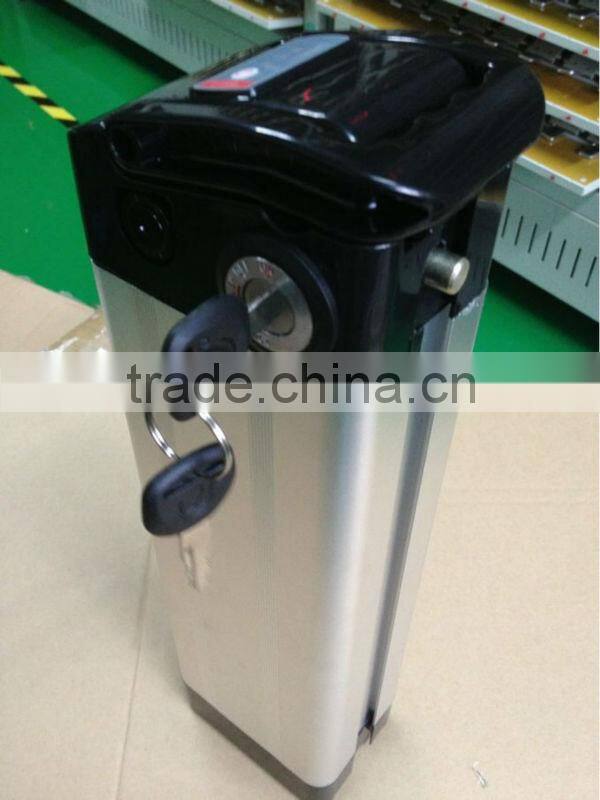

24v Silver Fish Battery

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Model Number:

36v10ah E-bike

Type:

Li-Ion

Shenzhen Anjcell Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Model Number 36v10ah E-bike

Type Li-Ion

Nominal Voltage Other, 36v

Nominal Capacity 10ah

Specifications

Charge mode CC,CV
Charging current 0.2C
Max. charge current 0.5C
Charging cut-off current 0.03C
Charging time 5~6h

No.	Item	General Parameter	Remark
1	Discharge of Peak current	45A
2	Over-disCharge Voltage(cell)	2.8±0.05V
3	Over-disCharge Voltage Protection(Pack)	28V-30V
4	Over-Current Discharge Protection	55±10A
5	Short circuit protection	YES
6	Short circuit protection Release	YES
7	Cell Dimension	Length:390±2mm
		Wide:110±2mm
		Height:80±2mm
8	Weight	≈3.3Kg
9	Operation Temperature Range	Charge0~45°C	60±25%R.H. Bare Cell
9		Discharge10~60°C Temperature protection	60±25%R.H. Bare Cell

10	Storage Temperature Range	1 month -20°C ~ 45°C	60±25%R.H. at the shipment state
		3 month): -20°C ~ 45°C
		1 year -20°C ~ 20°C

No.	Item	General Parameter	Remark
11	Control lock	The total control power supply for the weak control.But the current power supply lock
12	Rated Capacity	(Typ.) 10Ah	0.2C charge and 0.5C discharge for cut-off voltage
12	Rated Capacity	(Min.) 9.8Ah	0.2C charge and 0.5C discharge for cut-off voltage
13	Nominal Voltage	36
14	End of Charge Voltage	42.5V
15	Charge mode	CC,CV
16	Charging current	0.2C
17	Max. charge current	0.5C
18	Charging cut-off current	0.03C
19	Charging time	≈5~6h
20	Over-Charge Voltage Protection(cell)	4.2±0.025V
21	Over-Charge Voltage Protection(Pack)	42.5V
22	Maximum Continuous Discharging Current	15A
