Home > Products > Modified Sine Wave Inverter > Full Power ce Voltage Converter 3000w

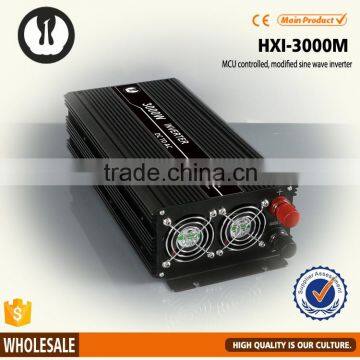

Full Power ce Voltage Converter 3000w

FOB Price

US$ 90 - 105.93 / Piece

1 Piece(Min. Order)

Port Ningbo / Shanghai / Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Huangxiang, or customized
Model Number	HXI-3000M	Output Power	Other, 3000W
Output Type	Single	Size	28216792mm(product size)
Weight	2.95 kg(net weight)	Input Voltage	12V DC / 24V DC / 48V DC / customized
Output Voltage	110V AC +/- 10V or 220V AC +/- 10V	Type	DC/AC Inverters
Output Frequency	50Hz / 60Hz	Output Current	27.27A/110VAC or 13.63A/220VAC

Product Description

full power ce voltage converter 3000w

Model	HXI-3K01-M1	HXI-3K02-M1	HXI-3K04-M1	HXI-3K01-M2	HXI-3K02-M2	HXI-3K04-M2
Nominal Input Voltage	13.2VDC	26.4VDC	52.6VDC	13.2VDC	26.4VDC	52.6VDC
AC Voltage Range	120±5VAC			230±10VAC
No Load Current	≤0.4A
AC Output Frequency	60±0.5Hz or 50±0.5Hz
Continuous Output Power	3000W
Peak Output Power	6000W
Output Voltage Waveform	Modified Sine Wave
USB Output Voltage	NO			NO
USB Output Current	NO			NO
Input Voltage Range	11-16VDC	22-32VDC	44-62VDC	11-16VDC	22-32VDC	44-62VDC
Low Voltage Cut Off	10.0±0.3VDC	20.0±0.5VDC	40.0±1VDC	10.0±0.3VDC	20.0±0.5VDC	40.0±1VDC
Low Voltage Restart	12.0±0.3VDC	24.0±0.5VDC	48.0±1VDC	12.0±0.3VDC	24.0±0.5VDC	48.0±1VDC
Low Voltage Alarm	10.5±0.3VDC	21.0±0.5VDC	42.0±1VDC	10.5±0.3VDC	21.0±0.5VDC	42.0±1VDC
High Voltage Cut Off	16.0±0.3VDC	32.0±0.5VDC	64.0±1VDC	16.0±0.3VDC	32.0±0.5VDC	64.0±1VDC
High Voltage Restart	15.0±0.3VDC	30.0±0.5VDC	60.0±1VDC	15.0±0.3VDC	30.0±0.5VDC	60.0±1VDC
Max Efficiency	≥92%
Overload Protection	3050—3300W
Input Reverse Protection	By fuse
Input Fuse	40A×8	20A×9	15A×9	40A×9	20A×9	15A×9
Output Short Circuit Protection	Yes
High Temperature Protection	≤65°C
Cooling Way	Force-air cooling

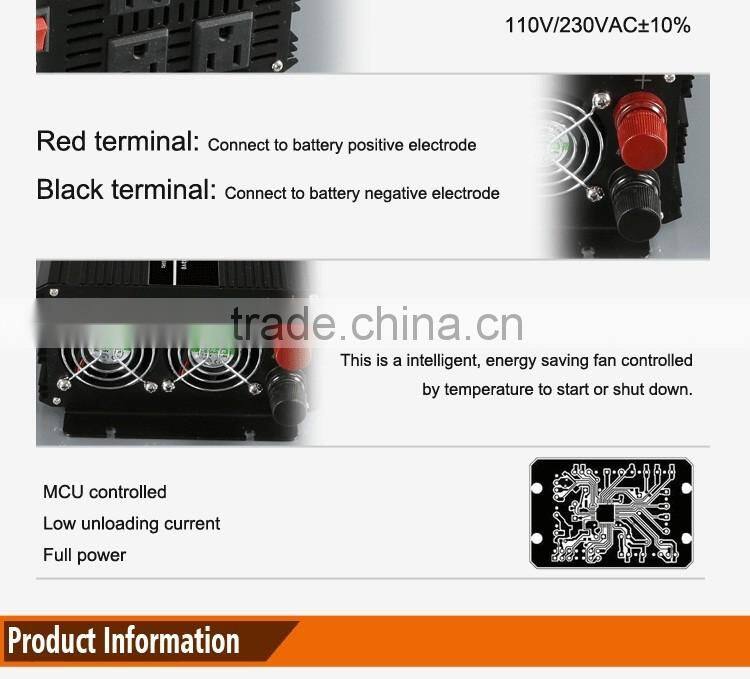

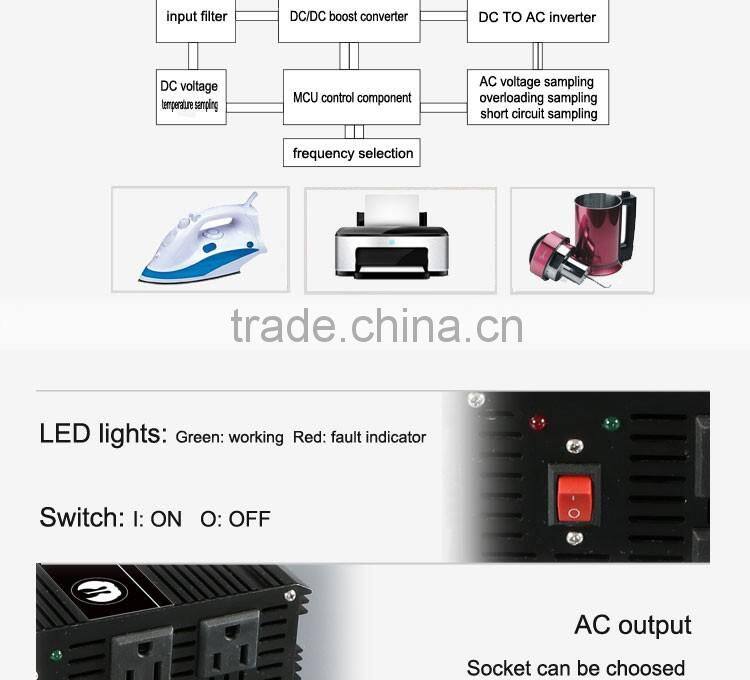

Indicate	Operating :Green LED
Indicate	Fault :Red LED and Alarm
Operating Temperature Range	-10--40°C
Storage Temperature Range	-20--55°C
Operating Relative Humidity	10---90%
Storage Relative Humidity	5---95%
Dimension(L×W×H)	28516792mm
Weight(N.W.)	2950g

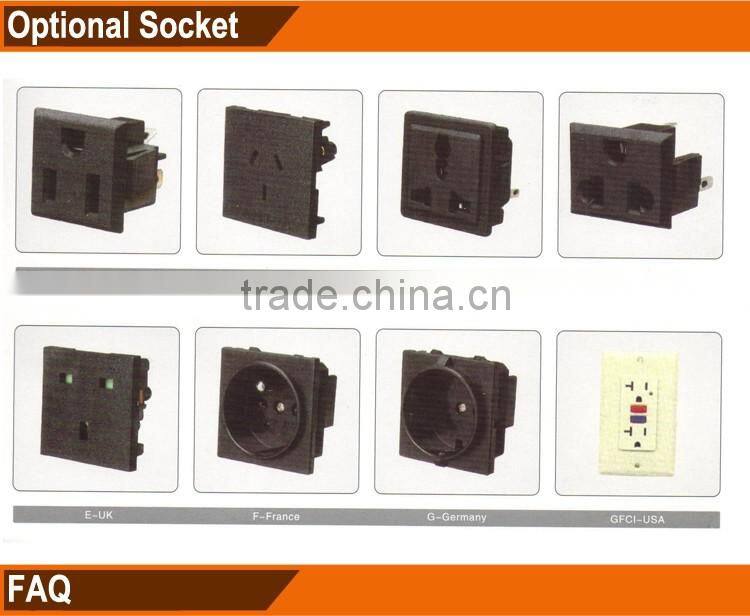

Out Socket	A-F

Q: How's the delivery time?

A: usually it will take about 15-21 workdays for production.

Q: Could you offer Form A or C/O?

A: It totally not a problem. We can prepare relative documents to forging affairs office or other office to apply for this certificate.

Q: Would you accept to use our logo?

A: If you have good quantity, it absolute no problem to do OEM.

Q: Where is your market?

A: Our products are popular in Egypt, American, and North Africa and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.

Q: Does the inverter use directly?

A: No. The inverter is a machine transfer DC voltage to AC voltage. It must connect a power source, like battery and solar panel, then transfer the energy to power the loading products.

Our Services

>Quality

RGD less than 2%(Good feedback from our online buyers, agent).

CE/EMC, ROHS for some items.

Update our MCU regularly to improve transfer efficiency.

Pre-sales technical support plan.

1 year warranty

>Price:

Update the production cost at irregular intervals to make sure our price is lower 5%-10% than most inverter factories, base on same quality of inverter.

>Accept ODM:

Own R&D department: one chief engineer and three maintenance engineers, one structural engineer.

>After-sale service:

If the goods are broken within 1 year, we will pay the shipment charge to ask you send back or send the free goods to you at next order, as the case may be.

Unscheduled visit customers and shared new products or marketing information.

Responding to complaints within 24 hours.

>Packaging:

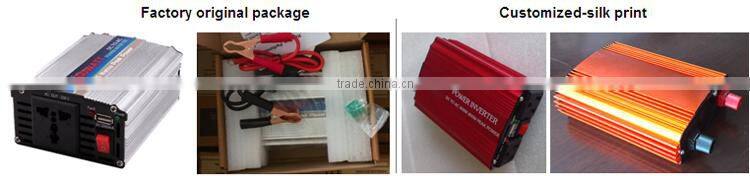

Factory original box, original design on product, orginal package for export carton.

If need change the label on thebuyer: MOQ 100pcs Free of Charge, base on buyer provide label artwork.

If need make any silk printing on products: MOQ:1500pcs of each item Free of Charge.

If need change package quantity in outer carton, or carton material or carton thickness, may cause price increase.

>Delivery time

Sample: 5-7 days after get your samples request and samples charge.

Mass production: 15-25 days after order confirmed and get buyer's deposit.

>Payment terms:

T/T, 30% deposit in advance, 70% upon shipment.

Inversor/inbertsore/Inversor/omvormer/inversigilo/invertteri/cruce/varyateur/Inverter/keitiklis/inversor/invertor/ inversor/gwrthdröydd

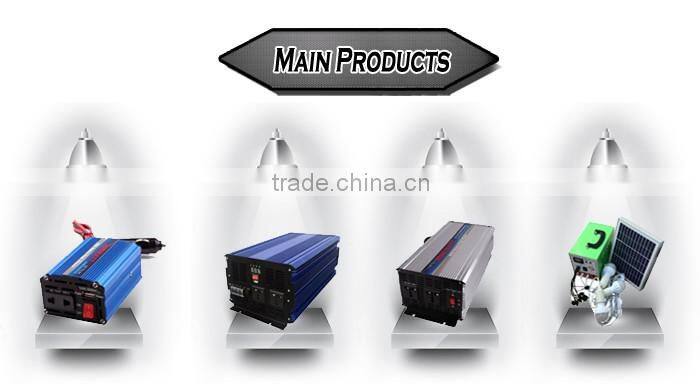

Main Product
