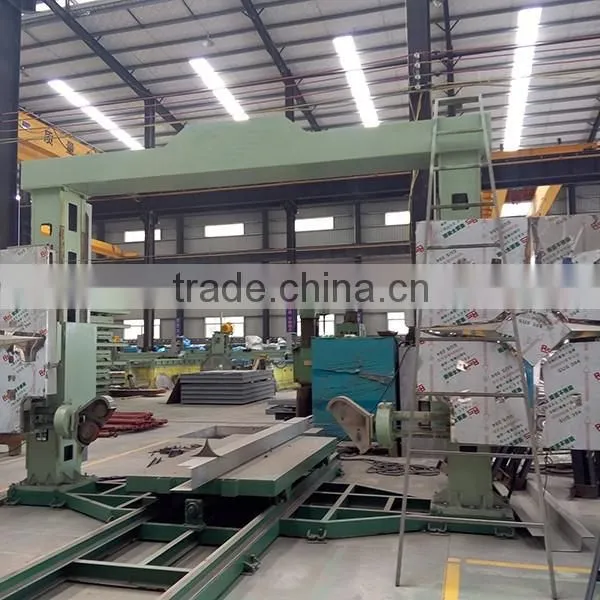

Diamond wire saw equipment for raw stone
1.There is one independent guide rail on each of the four stand columns.
2.Flywheel goes up and down along the the guide rails, performing stably, thus improving its service life.
3.Flywheel tension with a stable, constant strength mode to enhance cutting accuracy.
4.CNC control system makes it easy for man-machine interaction.
5.The machine quite suits for 2D processing & cutting.
| Product type | FRT2000 | FRT3000 |
| Cutting linear speed | 22-33mm | 28.5-33mm |
| General power | 13kw | 13kw |
| Water consumption | 5 m³/h | 5 m³/h |
| Diameter of diamond | 7.6-10.8mm | 7.6-10.8mm |
| Wire length | 14700mm | 17200mm |
| Max.cutting dimensions | 2500*2000*1500(mm) | 3000*2000*2000(mm) |
| Weight | 6500kg | 7500kg |
| Dimension(L×W×H) | 6700*5850*4100(mm) | 7500*6000*4100(mm) |

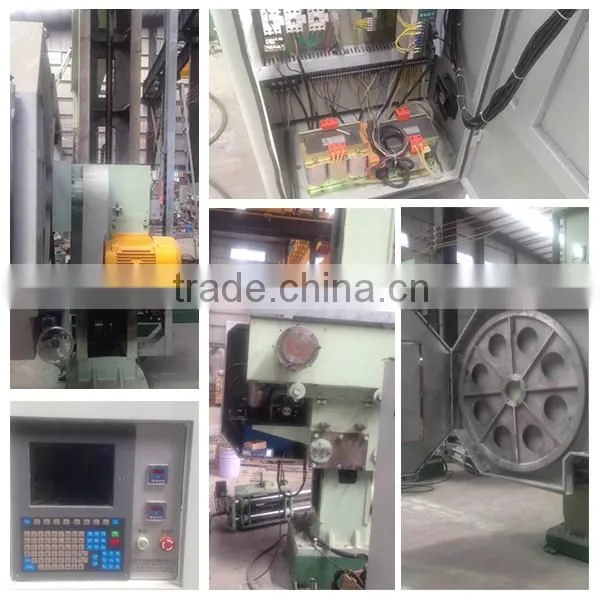

Product Figure
Shipping
The machine is shipped by 40 GP container.
Sales Team
If you want to know more details, please click the picture for more information.
Please contact us if you have any further questions. We are always at your ser-vice.
