Do what stone

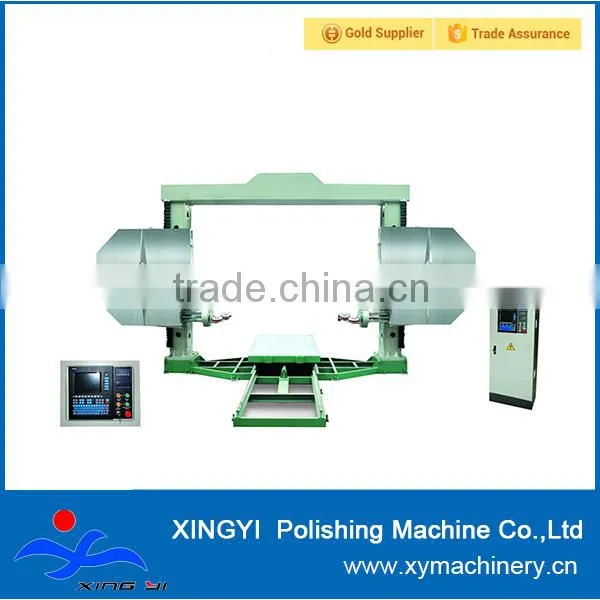

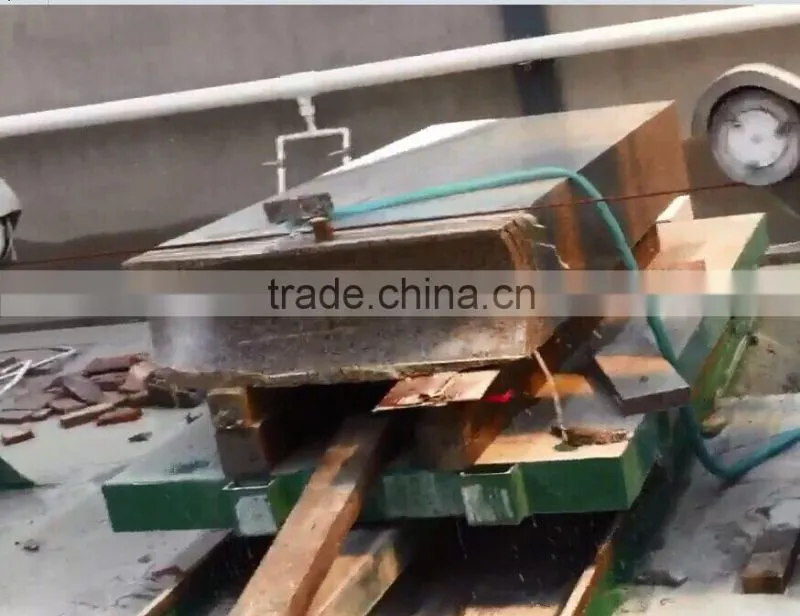

This diamond wire saw machine is an automatic, contouring machine, designed for carrying out complex architectural shapes such as profile, column slab, Roman column and words on granite, marble and every kind of natural stone.
What advantage we have

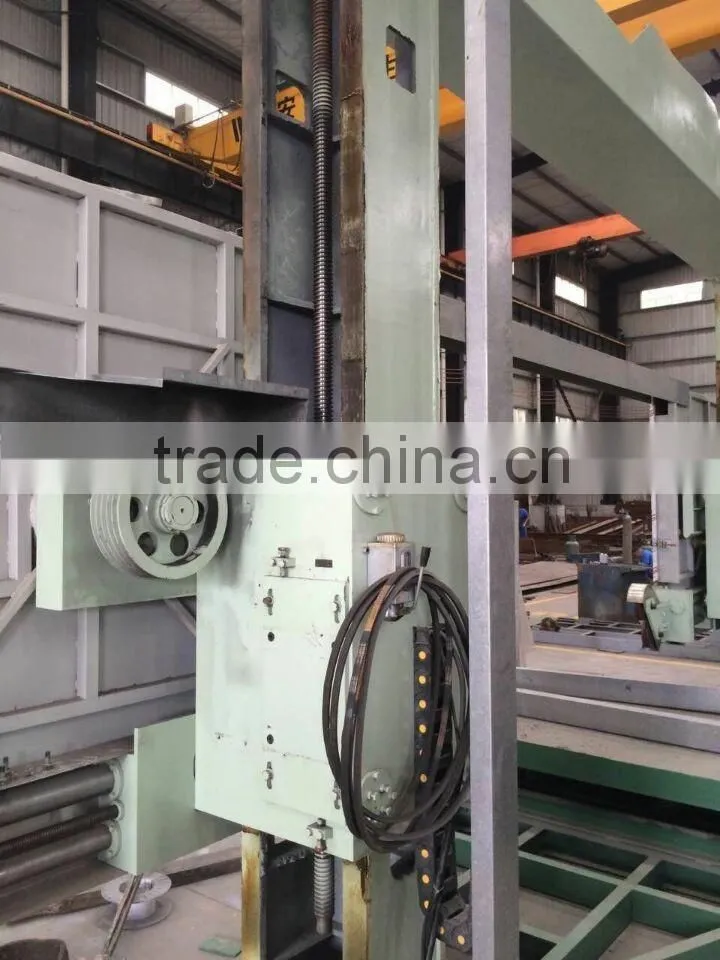

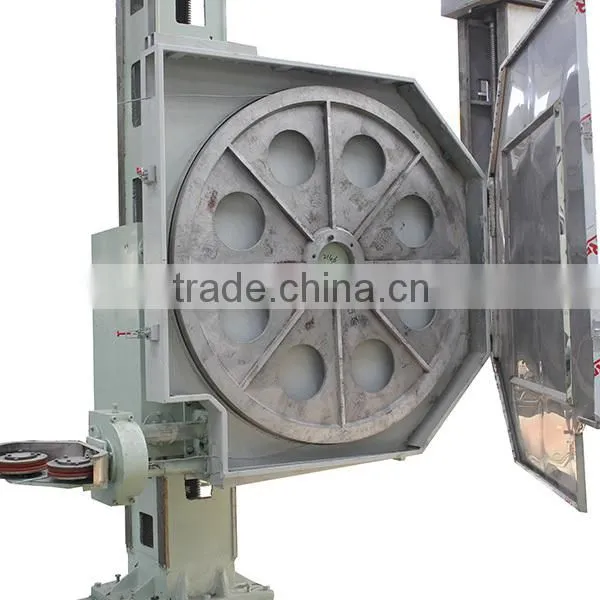

This machine has an independent guide rail on each of the four columns.The flywheel elevates and lowers along these guide rails.The flywheel works stably which improves the service life of the diamond wire saw.Flywheel tension has a stable,constant strength mode to enhance cutting accuracy.CNC system allows easy and flexible man-machine interface.Diverse,complex,2-dimensional surfaces can be processed.

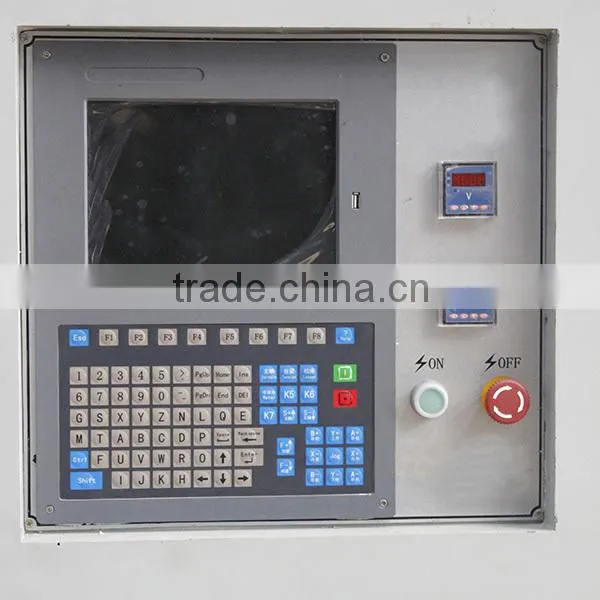

CNC control and XP interface make every preliminary and final operation simplified. It is able to be operated by telephone network in long range. The geometrical frame guarantees of absence of vibrations and an increasing of the wear resistance during time.
Specification:
| Product type | SJ2500C |
| Cutting linear speed | 22-33mm |
| Main power | 7.5kw |
| General power | 13kw |
| Water consumption | 5m³/h |
| Diameter of diamond | 7.6-10.8mm |
| Wire length | 14700mm |
| Max.cutting dimensions | 3000*2000*1500(mm) |
| Weight | 6500kg |
| Dimension(L*W*H) | 6700*5850*4100(mm) |
We can do any size according to your need.
| Diamond Wire Saw Machine | |||
| Product type | SJ2500A | SJ2500B | SJ2500C |
| Cutting linear speed | 22-33mm | 22-33mm | 22-33mm |
| Main power | 7.5kw | 7.5kw | 7.5kw |
| General power | 13kw | 13kw | 13kw |
| Water consumption | 5m³/h | 5m³/h | 5m³/h |
| Diameter of diamond | 7.6-10.8mm | 7.6-10.8mm | 7.6-10.8mm |
| Wire length | 14700mm | 14700mm | 14700mm |
| Max.cutting dimensions | 2000*2000*1500(mm) | 2500*2000*1500(mm) | 3000*2000*1500mm |
| Weight | 6500kg | 6500kg | 6500kg |
| Dimension(L*W*H) | 6700*5850*4100(mm) | 6700*5850*4100(mm) | 6700*5850*4100(mm) |
| Diamond Wire Saw Machine | |||
| Product type | SJ3000A | SJ3000B | SJ3000C |
| Cutting linear speed | 28.5-33mm | 28.5-33mm | 28.5-33mm |
| Main power | 7.5kw | 7.5kw | 7.5kw |
| General power | 13kw | 13kw | 13kw |
| Water consumption | 5m³/h | 5m³/h | 5m³/h |
| Diameter of diamond | 7.6-10.8mm | 7.6-10.8mm | 7.6-10.8mm |
| Wire length | 17200mm | 17200mm | 17200mm |
| Max.cutting dimensions | 2000*2000*2000(mm) | 2500*2000*2000(mm) | 3000*2000*2000(mm) |
| Weight | 7500kg | 7500kg | 7500kg |
| Dimension(L*W*H) | 7500*6000*4100(mm) | 7500*6000*4100(mm) | 7500*6000*4100(mm) |

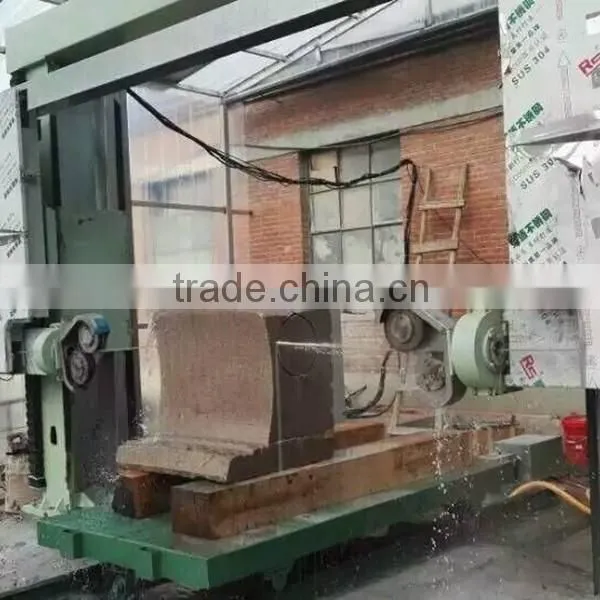

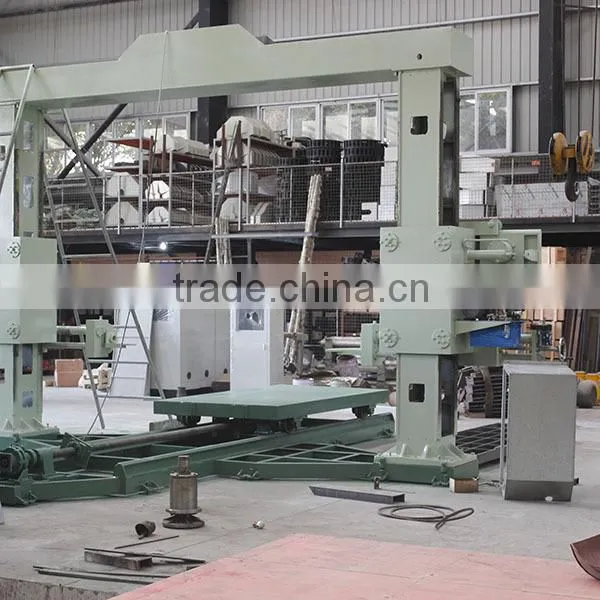

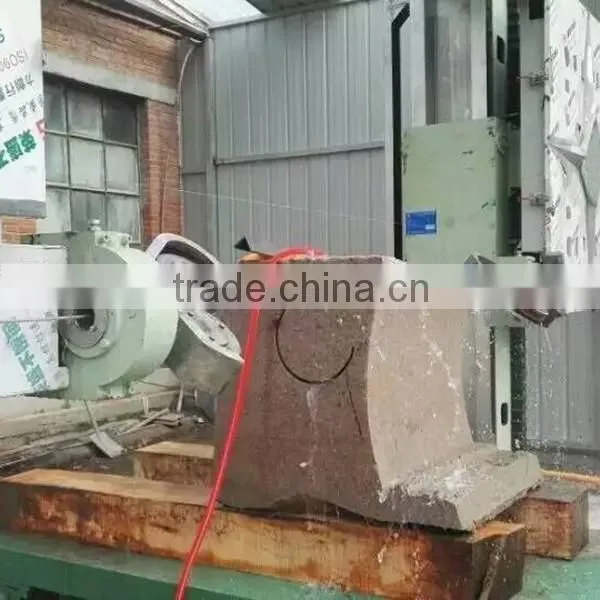

CNC Stone profiling machine

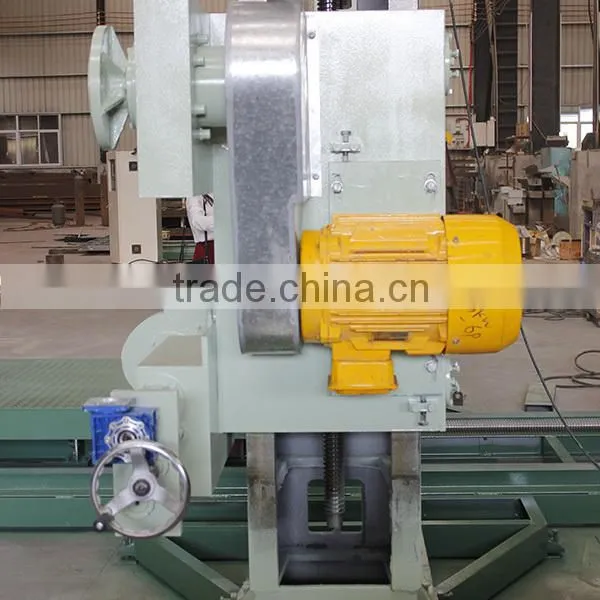

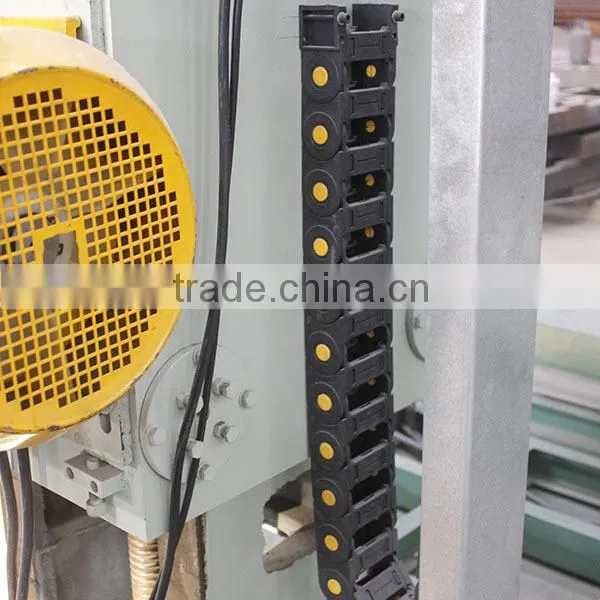

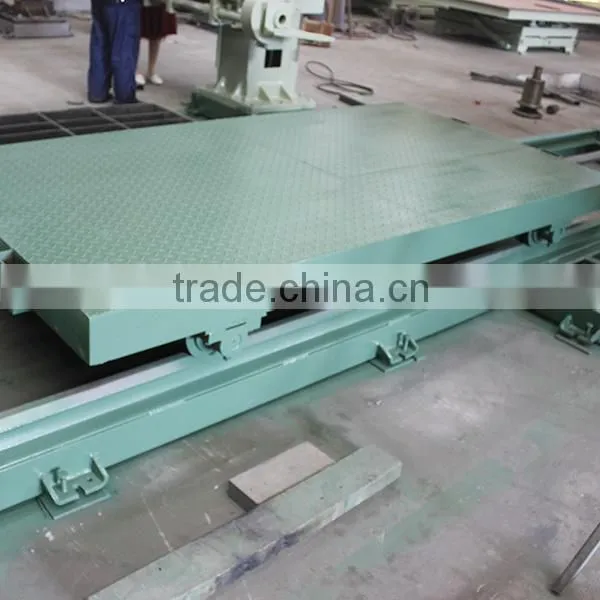

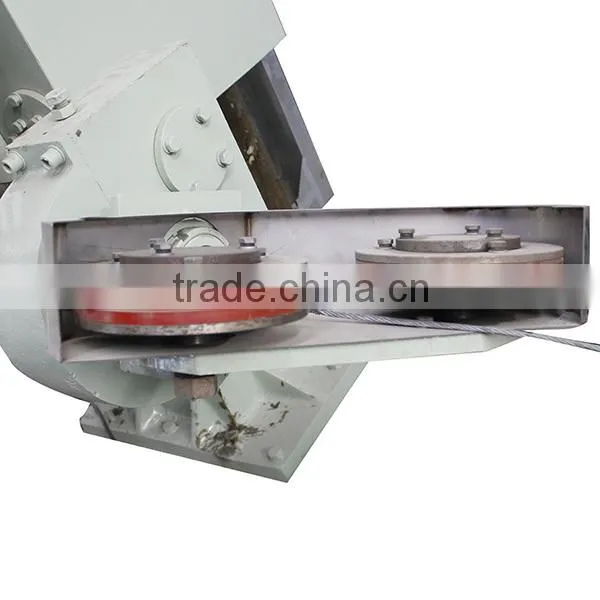

CNC Stone profiling machine parts display
Stone factory
