Help CenterHEXAD High Quality Light Transmittance Solar Panel Cover Glass Thickness 3.2mm With ISO Certificate
Related Products
-
High Light Transmittance 3.2 mm Low Iron Tempered Glass for Solor PanelUS$ 8.6 - 16.8MOQ: 25 Tons -
High Quality 3.2 mm Low Iron Tempered Glass for Solor PanelUS$ 8.6 - 16.8MOQ: 25 Tons
-
High Light Transmittance Solar Panel Glass Thickness 2.8mm,3.2mm,4mm With ISO CertificateUS$ 5.01 - 16.32MOQ: 25 Tons
-
High Quality Solar Panel Tempered GlassUS$ 8.6 - 16.8MOQ: 25 Tons
-
High Quality Ultra Clear Tempered Glass for Solar Panel GlassUS$ 8.6 - 16.8MOQ: 25 Tons
| Company Name | HEXAD Glass Co., Limited | ||
| Description | Solor Glass | ||
| Other Name | solar panel cover glass thickness 3.2mm | ||
| Thickness | 2.7mm | ||
| Size | 1900*980mm; 1600*980mm | ||
| Tempered Rate | »95% | ||
| Light Transmittance | »91.6% | ||
| Color | Ultra Claer |

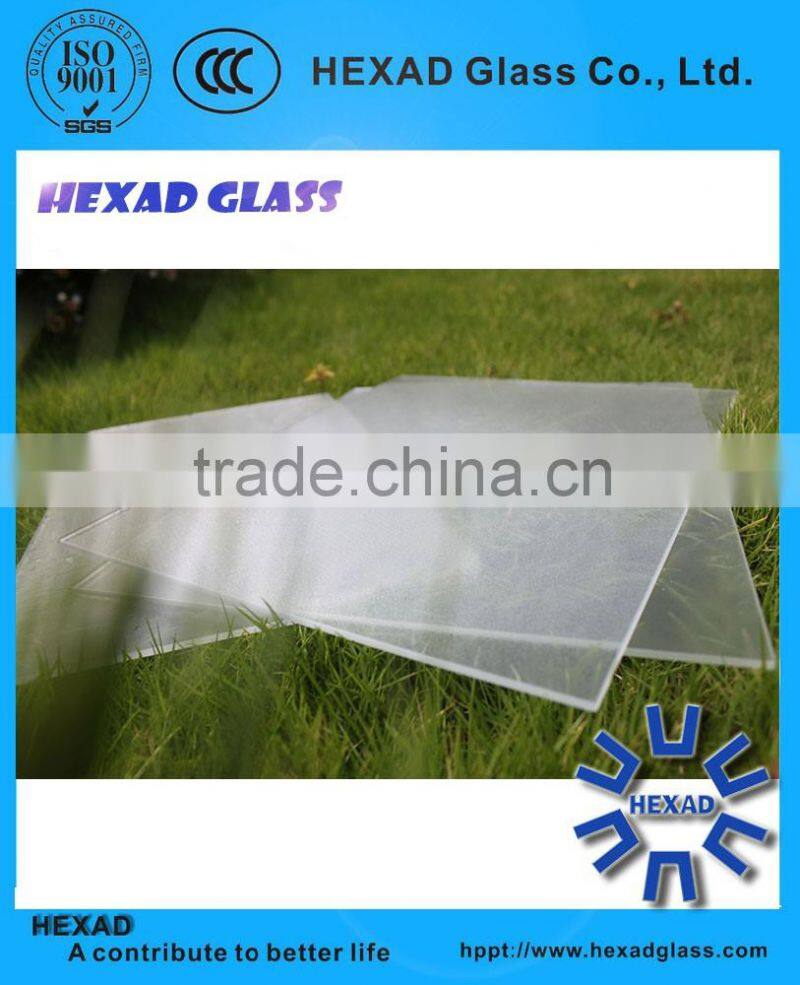

Solar panel glass is a high performance low iron pattern glass with very high solar energy transmittance. When toughened, its strength and durability make it the ideal choice for crystalline
silicon photovoltaic application as well as for solar thermal collectors.
HEXAD Solar glass is also called photovoltaic glass which mainly used on solar panel because of its super light transmittance rate. Solar panel is a thin layer of optoelectronic semiconductor which converting solar energy into electricity. By considering its efficiency, we are using High- transmittance and low reflection glass for its panel. This high strength glass maintains the best image quality by eliminating unwanted distortions with the advanced optical technology.
Antireflection Glass(AR glass) is also called high transmittance and low reflectivity glass, which is a manufactured through coating two to multiple transparent anti-relection layers on single or double sides of glass by advanced vaccum coaing technology .
Low Iron Glass is also named Super White Glass, Super clear glass, Extra clear glass, Normally it is a kind of plant glass with highly clear, highly transmissive,It is highly Smooth used in all kinds of construction and decoration and the counter and the Solar Tempered glass panel and display window exhiited by top-gradevaluable products.
The Low iron is mainly used for Solar Tempered glass panel , The Light Transmittance more than 91.5 %, if they were AR coated process, The Light Transmittance more than 95 % .
|
Solar glass Property |
Certificate owned |
SPF certificate, CE certificate |
Thickness(mm) |
3.2mm 4mm |
|
Max Dimension(mm) |
2250*3500mm(annealed),1830*2600mm(tempered) |
|
Dimension Tolerance(mm) |
±1.0 |
|
Surface Condition |
Structured in same way on both sides acc. To technical requirement |
|
Solar transmittance> |
91.6% |
|
Iron Content |
100ppm |
|
Poisson's ratio |
0.2 |
|
Density |
2.5g/cc |
|
Young's Modulus |
73GPa |
|
Tensile strength |
90N/mm2 |
|
Compressive Strength |
700-900N/mm2 |
|
Expansion coefficient |
9.03 x10-6/ |
|
Softening point(C) |
720 |
|
Annealing point(C) |
550 |
|
Strain point(C) |
500 |
And it is a new type of deeply processed glass, also it is a new type advanced structural glass with environment protection, economic on energy. The glass is a lower iron float glass and be made by a special process. It is not like the clear float glass to sight like green, it looks just like colorless crystal, highly transmissive and terrific.
The solar panle glass can be used by Low iron clear float glass and Low iron pattern glass(mistlite pattern glass or Woven pattern glass) and AR tempered glass and AR low iron pattern glass .
PAKCING & SHIPMENT
