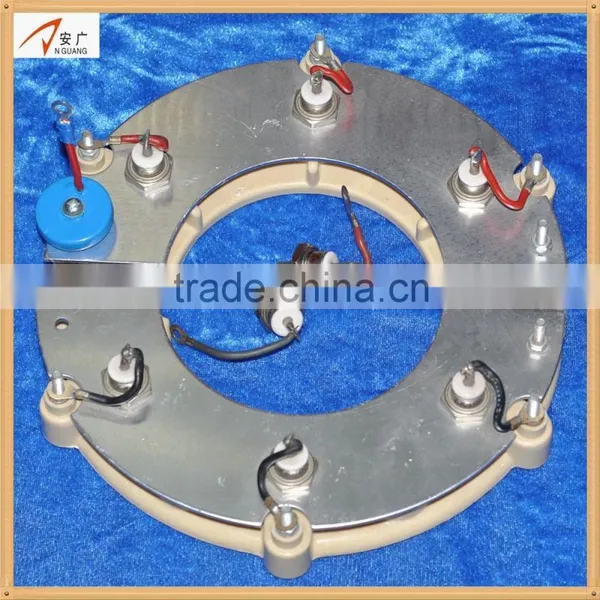

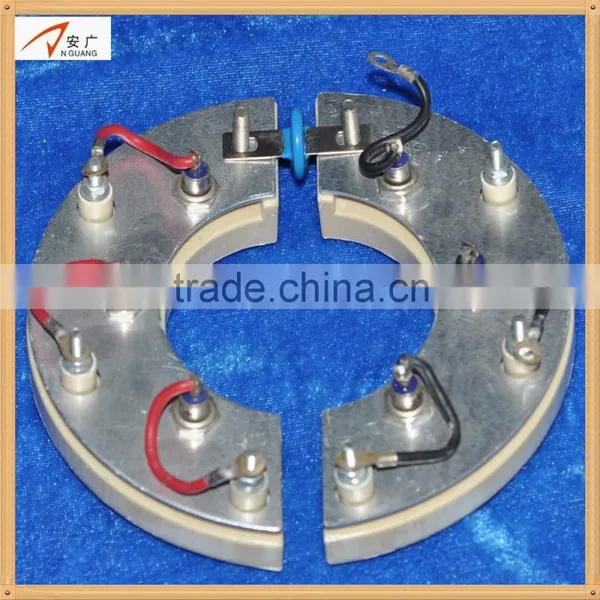

CE & IS9001 And Competitive Price Rectifier Assembly
ZX100A Rectifier Assembly
1)ISO9001 & CE
2)10 years professional technica
3)As manufacturer with high quality and low price
Thyristor Module Circuit Diagra
|
Type |
IT(AV) |
VRRM |
ITSM |
VTM |
IDRM |
RTH |
IF(AV) |
VDRM |
45℃10ms |
VFM |
@Tc |
||
A |
V |
A |
V |
mA |
℃/W |
|
ZX100A |
100 |
400-1800 |
1300 |
≤1.3 |
≤2 |
0.21 |
Features |
|
1.High reliability 2.low forward voltage drop 3.Types up to 1600V VRRM 4.High surge current capability 5.Installation is simple, easy maintenance 6. junction temperature up to 150℃ 7.Welded structure, excellent temperature characteristics and power -cycling capability |
Applications |
|
1.Generator excitation 2.Other Rectifier circuit 3.Battery charges 4.Converters 5.Machine tool controls 6.Power supplies 7.Welding |
Packaging: varies depending on the product size, but all ship with standard, secure packaging & customize for Rectifier Assembly.
Shipping: we will ship all your order within 15 days after receiving T/T payment for Rectifier Assembly.
|
|
|
|
|
|
TYPE |
IT(AV) |
VRRM |
ITSM |
VTM |
IDRM |
RTH |
IF(AV) |
VDRM |
45℃10ms |
VFM |
@Tc |
||
A |
V |
A |
V |
mA |
℃/W |
|
ZX50A |
50 |
400-1800 |
600 |
≤1.3 |
≤2 |
0.25 |
ZX70A |
70 |
400-1800 |
900 |
≤1.3 |
≤3 |
0.26 |
ZX25A |
25 |
400-1800 |
350 |
≤1.3 |
≤3 |
0.34 |
ZX40A |
40 |
400-1800 |
500 |
≤1.3 |
≤3 |
0.30 |
ZX70A |
70 |
400-1800 |
900 |
≤1.3 |
≤3 |
0.30 |
