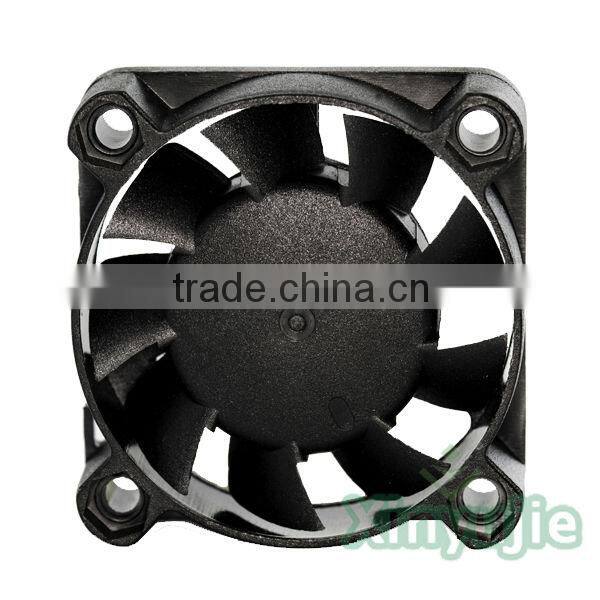

Xinyujie ball bearing 4010 laptop cooler built-in low rpm fan motor high quality cpu cooler
Dimension:40*40*10MM
Rated voltage:5V/12V/24V
Startup voltage:3.5V/6V/7V/12V
Current amp:0.05-0.30A
Speed:4500-7000RPM
Air flow:3.77-7.02CFM
Static Pressure:1.94-4.51mmH2O
Noise level:22-33dB-A
Weight:14.00g
Optional function:FG function/RD function/PWM function
Wire leading:2 wire(red wire:positive;black wire:negative)
3 wire(red wire:positive;black wire:negative;yellow wire:RD or FG)
4 wire(red:positive;black:negative;yellow:FG;green:temperature control)
We have our own produce department and engineer,so all the specification can be customized.
Lead time: samples within 4 days
mass production within 12 days
if do the waterproof fan need 1 week more
We have the fan dimension as below:
25*25*07MM 25*25*10MM 30*30*07MM 30*30*10MM 35*35*07MM 35*35*10MM 40*40*07MM 40*40*10MM 40*40*15MM 40*40*20MM 40*40*28MM 45*45*10MM 50*50*12MM 50*50*15MM 50*50*20MM
60*60*11MM 60*60*15MM 60*60*20MM 60*60*25MM 70*70*15MM
70*70*25MM 80*80*10MM 80*80*15MM 80*80*20MM 80*80*25MM
80*80*38MM 92*92*25MM 92*92*38MM 120*120*25MM 120*120*32MM
120*120*38MM 140*140*25MM 172*152*51.5MM
