XYJ7530 75mm high air flow customized industrial centrifugal fan
Main parameters:
Model |
Rated Voltage |
Start up Voltage |
Current Amp (A) |
Speed |
Air flow |
Static Pressure |
Noise Level |
Weight |
XJ12B7530H |
12 |
6 |
0.18 |
2500 |
9.80 |
7.88 |
34 |
77 |
XJ12B7530H |
12 |
6 |
0.30 |
3000 |
11.56 |
9.30 |
39 |
77 |
XJ12B7530H |
12 |
6 |
0.45 |
3500 |
12.35 |
11.00 |
44 |
77 |
XJ24B7530H |
24 |
12 |
0.10 |
2500 |
9.80 |
7.88 |
34 |
77 |
XJ24B7530H |
24 |
12 |
0.16 |
3000 |
10.56 |
9.30 |
39 |
77 |
XJ24B7530H |
24 |
12 |
0.23 |
3500 |
12.35 |
11.00 |
44 |
77 |

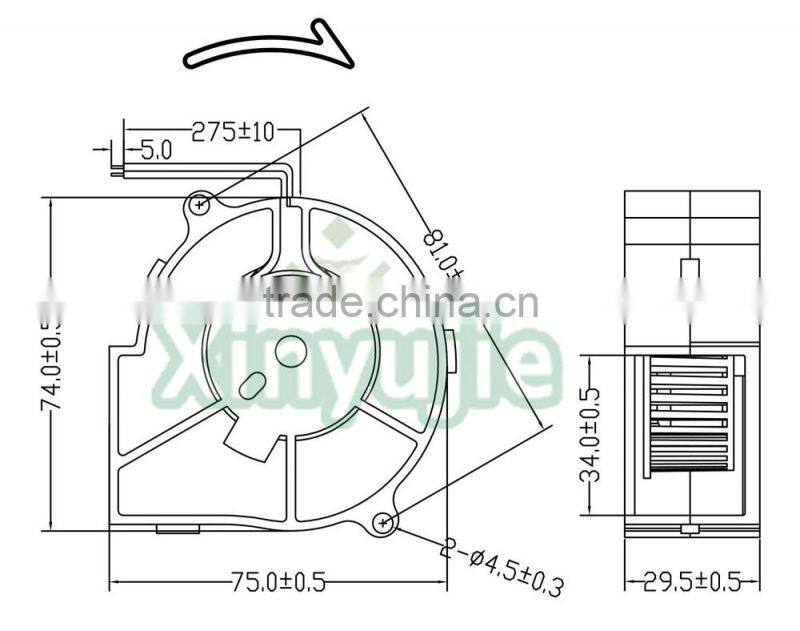

Dimension: 75mm*74mm*29.5mm
Use of the environment:
Operating voltage |
4.5v~5.5v/10.2v~13.8v/20.4v~27.6v |
Operating temperature/humidity |
-10℃~70℃ 35%~85%RH |
Storage temperature/humidity |
-40℃~80℃ 35%~85%RH |

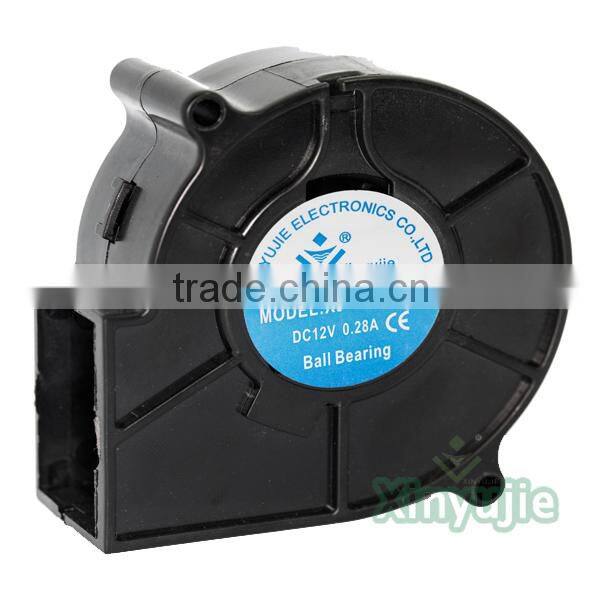

Main pictures:
Spare parts:
Optional:
1. Waterproof IP55 or IP67,you can test the fans in the water,can work in very wet environment. And also you can choose the salt-waterproof craft.
2. Wire leading:2 wire(red wire:positive;black wire:negative)
3 wire(red wire:positive;black wire:negative;yellow wire:RD or FG)
4 wire(red:positive;black:negative;yellow:FG;green:temperature control)
3. Optional function: auto-restart, temperature control speed, speed detection, stppage alarm, waterfroof etc.
4. Customized terminal and customized wire length.
5.
|
Optional sleeve and ball bearing:
| ||||||||||||||
|
1.Home appliance 2.Kitchen 3.Car industry 4.Telecom 5.Medical Equipment 6. UPS Power 7. LED Lighting 8.Computer 9.Safety Equipment 10.Office Electrics
Delivery time:
1. Samples 2-5 days
2. Mass production 7-10 days
3. If do the waterproof fan need 1 week more
Express:
Guarantee:
-3 years warranty for ball bearing fans
-1 year warranty for sleeve bearing fans
-20,000 hours warranty for hydraumatic bearing fans
Service:
-OEM service based on MOQ1000pcs;
-Ordinary material and waterproof material optional;
-Best quality cooling fans produced by ourselves;
-Best service by our sales and engineers;
-All can be customized.
We have our own produce department and engineer,so all the specification can be customized.
Certificate:
Our workshop:
Company profile:
-We are an enterprise specialized in developing and producing AC/DC/EC cooling fans.
It is applies to armamentarium, communication device, big server machine, security and protection monitoring, professional power amplifier, indoor air ventilation, instrument and equipment etc.
-We have owned professional R&D department, and we have dozens of patents of utility model and designs.
-We have full series dimension ranging from 25*25*7mm to 172*172*51mm, including sleeve bearing, ball bearing, hydraulic bearing, and the current amp, rated voltage. Speed, air flow can all be customized.
-Our Tenets: others without I have, people have my superior.
1. Who are we?
- Our Xinyujie is a professional manufacturer of AC & DC cooling fans.The fans dimension ranging from 25mm to 172mm,including sleeve/ball/hydraumatic bearing.
- All the sleeve and ball are import from Japan etc.We have our own engineer, the rated voltage,current amp can all be customized.
2. What we can do for you?
- 3 years warranty for ball bearing fans and 1 year warranty for sleeve bearing fans
- OEM service based on MOQ1000pcs
- Ordinary material and waterproof material optional
- Best quality cooling fans produced by ourselves
- Best service by our sales and engineers
- We have own engineer can design and do the fans customized
3. Payment terms
- Payment by T/T , Western Union or Paypal .
- 100% payment for sample orders .
- 30% deposit and 70% balance before shipment .
