1.3MP IP66 Network Mini Dome CCTV Camera

FOB Price

USD $1 - $1,000 / Piece

1 Piece(Min.Order)

Product Details

Place of Origin:	China	Brand Name:	GSM	Model Number:	GSM-NC3350113502
Type:	Other, Analog Camera, Network Camera	Style:	Mini Camera	Sensor:	CMOS
Technology:	NetWork	Special Features:	Vandal-proof

1, High Quality and good price
2, Small oder accepted
3, Do OEM as respected
4, Design as respected

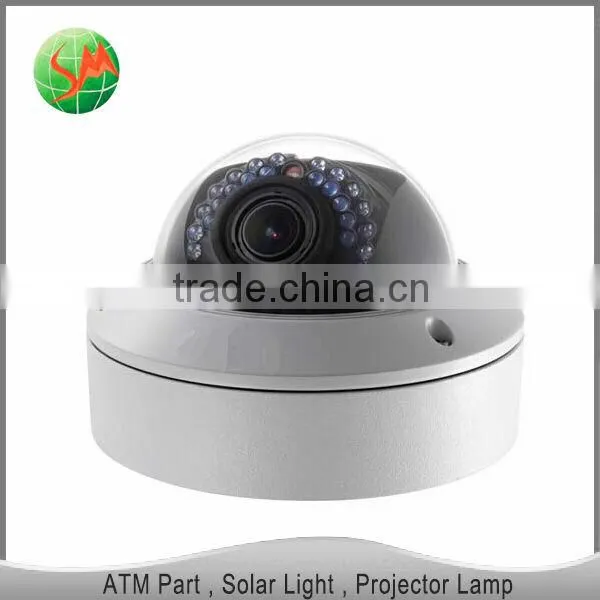

1.3MP IP66 Network Mini Dome Camera

Camera

Image Sensor:	1/3" Progressive Scan CMOS
Min. Illumination:	0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter time:	1/25(1/30) s to 1/100,000 s
Lens:	4mm@ F2.0 (2.8mm, 6mm optional) Angle of view: 92.5°(2.8mm), 73.1°(4mm), 46°(6mm)
Lens Mount:	M12
Adjustment Range:	Pan: -30°-30°, Tilt: 0~75°, Rotation: 0-360°
Day& Night:	IR cut filter with auto switch
Wide Dynamic Range:	Digital WDR
Digital noise reduction:	3D DNR

Compression Standard


Max. Image Resolution:	1280x960
Frame Rate:	50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480) 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480)
Image Settings:	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC:	Yes, zone configurable
ROI:	Yes, up to 4 configurable areas

Network

Network Storage:	NAS
Alarm Trigger:	Motion detection, Tampering alarm
Protocols:	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security:	User Authentication, Watermark, IP address filtering, anonymous access
System Compatibility:	ONVIF, PSIA, CGI, ISAPI

Interface

Communication Interface:	1 RJ45 10M / 100M ethernet interface
On-board storage:	Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
Reset Button:	Yes

General

Operating Conditions:	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:	12 VDC ± 10%, PoE (802.3af)
Power Consumption:	Max. 5 W
Impact Protection:	IEC60068-275Eh, 50J; EN50102, up to IK08
Weather Proof:	IP66
IR Range:	10 meters
Dimensions:	99.3×96.7×52.8
Weight:	600g (1.32 lbs)

Packaging & Shipping

1.Packing:With standard packing or according to customer's request.
