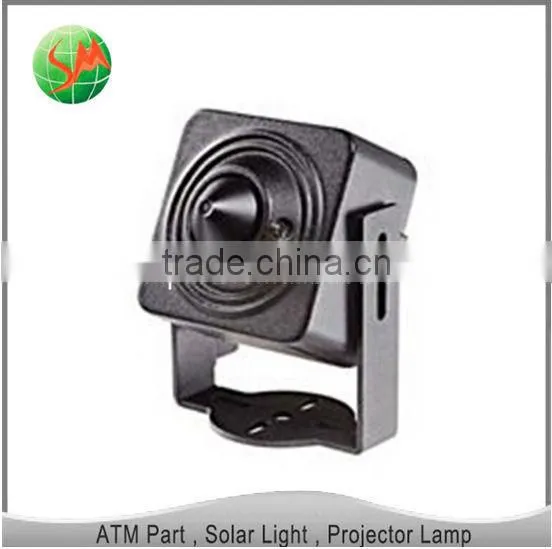

GSMAC03021 Security Equipment 700TVL WDR Mini Camera on Sale

US$ 1 - 800 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Model Number:

GSMAC03021

Type:

Analog Camera

Guangzhou SM International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Model Number GSMAC03021

Type Analog Camera

Style Mini Camera

Sensor CCD

Specifications

1.High quality
2.Competitive price
3.Prompt delivery
4..Accept small order

GSMAC03021 Security equipment 700TVL WDR Mini Camera on sale

Product Description

GSMAC03021

Camera

Image Sensor:	1/3" Super HAD CCD II
Signal System:	PAL/NTSC
Effective Pixels:	PAL: 976 (H) × 582 (V) NTSC: 976 (H) × 494 (V)
Min. Illumination:	0.002 Lux @ (F1.4, AGC ON), 0.00002 Lux @ (F1.4, AGC ON, sensitivity × 512) 0.006 Lux @ (F2.5, AGC ON), 0.00006 Lux @ (F2.5, AGC ON, sensitivity × 512)
Shutter Time:	1/50(1/60)s to 1/100,000s
Lens:	3.7 mm @ F2.5 (2.8 mm optional) Angle of view: 70° (3.7 mm)
Lens Mount:	M12
Day& Night:	Electronic
Horizontal Resolution:	700 TVL
Wide Dynamic Range:	75dB
Synchronization:	Internal Synchronization
Video Output:	1Vp-p Composite Output (75Ω/BNC)
S/N Ratio:	More than 62 dB

Menu

Camera ID:	On/Off(16 letters, position adjustable)
Auto Gain:	Low/Middle/High/Off
D/N Mode:	Auto/Day/Night
Auto White Balance:	Auto trace WB1/Auto trace WB2/Manual/Auto Control
Private Mask:	On / off, maximum 12 zones
Motion Detection:	ON/Off
BLC:	Area/Value/Off
WDR:	Value/Contrast/WD exposure compensation/Return
Anti-flicker:	On/ Off
Language:	English/Chinese
Dead Pixel Detect:	Yes
Function:	Eclipse, Digital Noise Reduction, Sharpness, Brightness, Saturation, Resolution, Electronic image stabilization, Digital Zoom, Mirror, Defect Pixel Correction
Scene:	Indoor Backlight , Outdoor Backlight

General

Operating Conditions:	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 90% or less (non-condensing)
Power Supply:	12 V DC±10%
Power Consumption:	Max. 2 W
Dimension:	32.1×32.1×29.3 mm (1.26” × 1.26” × 1.15”)
Weight:	300 g (0.66 lbs)
