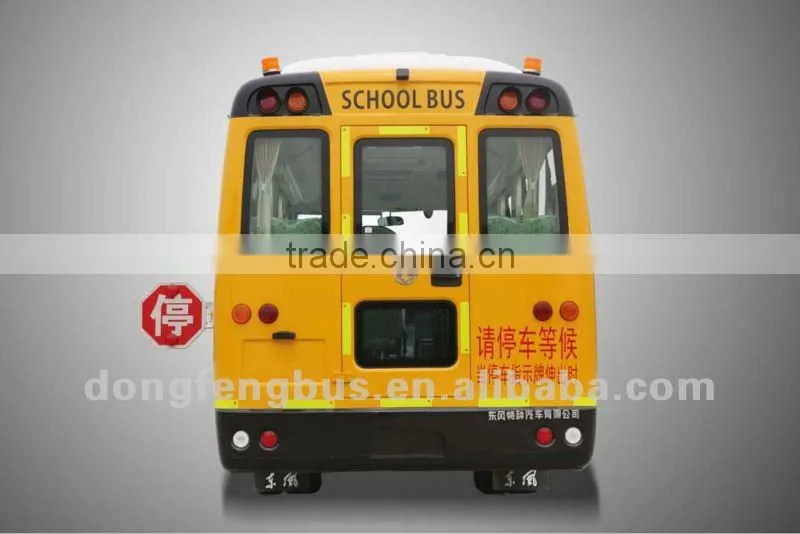

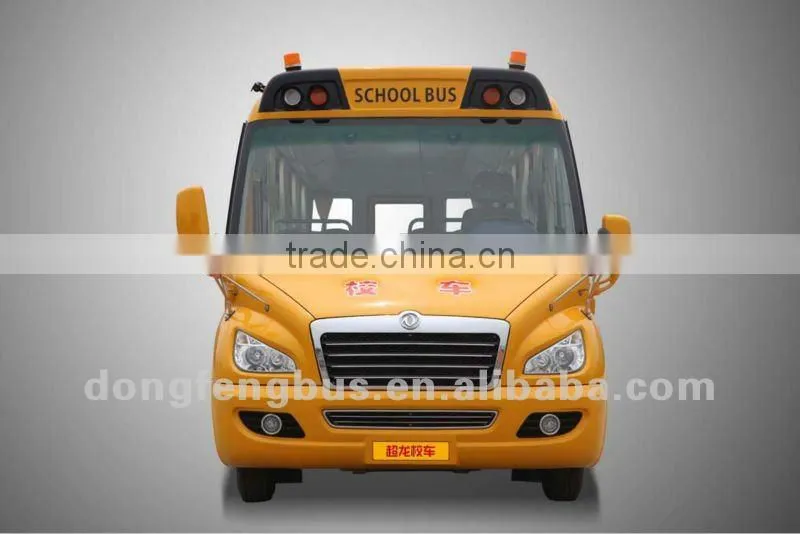

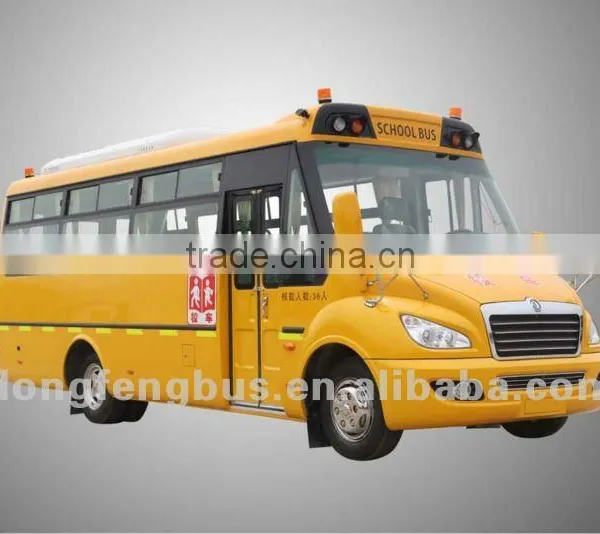

7-8m school bus 24-43 seats

VEHICLE

Length(mm)

7535

E

N

G

I

N

E

Mode

EQB125-20

Width mm)

2400

Height(mm)

2780,3020

(With A.C)

Manufacturer

Dongfeng Cummins Engine

Position/fuel

Front settled/ diesel

Wheel base(mm)

4200

Type

In-line four-cylinder, water-cooled, four-stroke,

turbocharger diesel engine

Front/Rear overhang(mm)

970/2365

Rated output(kw)

92

Approaching/Departure angle(º)

17/11

Max..torque (N.m)

410

Displacement(ml)

3.9

G.V.W(kg)

7500

Bore × stroke(mm)

---------------

Seat capacity

40+1+1+1

Emission standard

Euro-II

Max. speed(km/h)

85

Item

Standard allocation

optional

CHASS

I

S

Chassis model

EQ6720KS2T

Gearbox

DF5S470

By Dongfeng Motor Transmission Co., LTD

Clutch

50mm,single plate,dry,diaphragm spring

Front axle

Dongfeng Dana axle Co. (3T),disc brake

Rear axle

Dongfeng Dana axle Co. (5T),i=5.38

Suspension

Steel plate spring, front 3/rear 4

Steering

Power steering

Brake

Dual circuit air brake,spring brake,ABS,

Fuel tank

135L

Tires

215/75R17.5

Battery

6-QA-105

6-QA-120

Others

Copper water tank,air drier

BODY

Body structure

Semi-integral body construction

Interior trimming

Soft interior trimming

A.C interior trimming

Doors

Pneumatic out- swing door

Side windows

Push-pull window for the upper part, splice window for the bottom part, green glasses

Whole sealing or interior push-pull window

Windshield

Rear toughened glass

Rearview system

manual back mirror,interior mirror

Air conditioning

--

Dongfeng Pai’en top settled air conditioner

Defroster

24V, 130W

170w

Video system

mp3 Radio-cassette Player

MP4,MP5 video system, 15”/17” Color screen,USD,SD Card

Rain wiper

Electric rain wiper

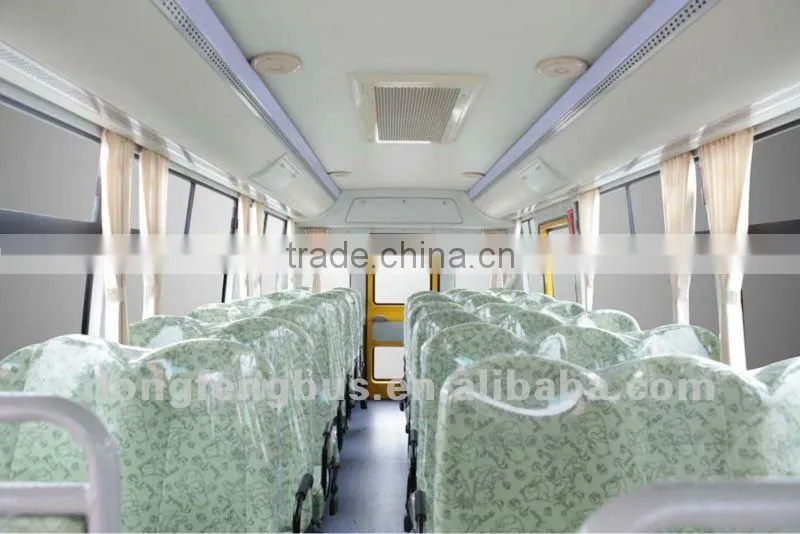

Seats

special seats for school children,3+2 layout

Shock absorption seat for driver

Paint

Domestic paint

Metallic paint

others

PVC floor,flat floor,electronic clock,curtain, driver fan,domestic paint, air horn, two safety hummers, fire extinguisher(2KG), scuttle, air horn,handle,guardrail.

Non-flat floor, aluminum or iron pattern floor, iron-wood floor, folding side window curtain (with A.C), monitor, coin-operated machine,

Tyres cover.
