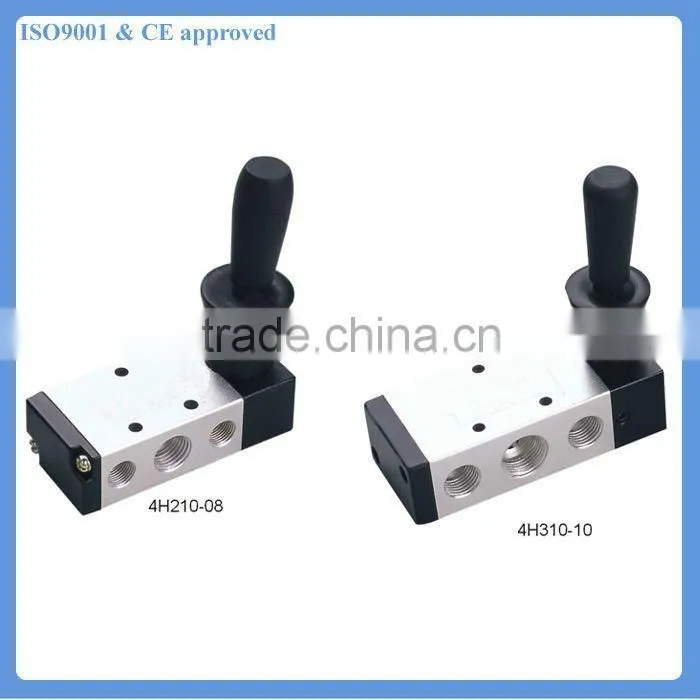

Help Center4H Series Pneumatic Hand Lever Valve 4H210/4H310
Related Products
-
Solenoid Valve Pneumatic Air Valve HERION SeriesUS$ 1 - 50MOQ: 10 Pieces -
Solenoid Valves With Herion ConstructionUS$ 1 - 50MOQ: 10 Pieces
-
VF/VZ Series5/2 or 5/3 Way SMCair Solenoid ValvesUS$ 1 - 50MOQ: 10 Pieces
-
VF/VZ Series Air Solenoid ValvesUS$ 1 - 50MOQ: 10 Pieces
-
4V400 Series Air Solenoid Valves 4v410-15US$ 1 - 50MOQ: 10 Pieces
Specifications
4H Series Hand Lever Valve1, 263:5/2 Way
2. 802:3/2 Way
3.2630:4/2 Way
Ordering Code
| 4H | 2 | 10 | - | 06 | - | L |
| Two(Three)-position Five-Way | Body Size | Motion Pattern | Port Size | Type Code | ||
| 2:200 Series | 10:Single-head Double-position | 06:G1/8" | Blank:Three-position Five-way Reset Type | |||
| 3:300 Series | 30:Single-head Three-position | 08:G1/4" | L:Three-position Five-way Locking Type | |||
| 4:400 Series | 10:G3/8" | |||||
| 15:G1/2" | ||||||
Specification
| Model | 4H210-06 | 4H210-08 | 4H230-08 | 4H310-08 | 4H310-10 | 4H410-15 |
| Working Medium | 40 Micron Filtered Air | |||||
| Action Type | Direct Acting Type | |||||
| Effective Setion Area(mm²) | 14 | 16 | 12 | 25 | 30 | 50 |
| CV Value | 0.78 | 0.89 | 0.67 | 1.4 | 1.68 | 2.79 |
| Port Size | Air-in=Air-out=Exhaust=G1/8" | Air-in=Air-out=G1/4";Exhaust=G1/8" | Air-in=Air-out=Exhaust=G1/4" | Air-in=Air-out=Exhaust=G3/8" | Air-in=Air-out=Exhaust=G1/2" | |
| Working Pressure | Air-in=Air-out=Exhaust=G1/8" | Air-in=Air-out=G1/4";Exhaust=G1/8" | Air-in=Air-out=Exhaust=G1/4" | Air-in=Air-out=Exhaust=G3/8" | Air-in=Air-out=Exhaust=G1/2" | |
| Working Pressure | 0~0.8MPa | |||||
| Medium Temperature | 0~60℃ | |||||
Fenghua Aiphonso Industrial Autaomation CO., LTD
is a professional manufacturer of pneumatic components,solenoid valves, cylinders,fittings and so on. It has more than 100 employees and covers an area of over 4,000 square meters.Technology-oriented, quality-based and continual quality improvement make it capable of passing ISO9001:2000 Quality System Certification .Our Products are well sold in Southeast Asia,the Middle East and other regions.
