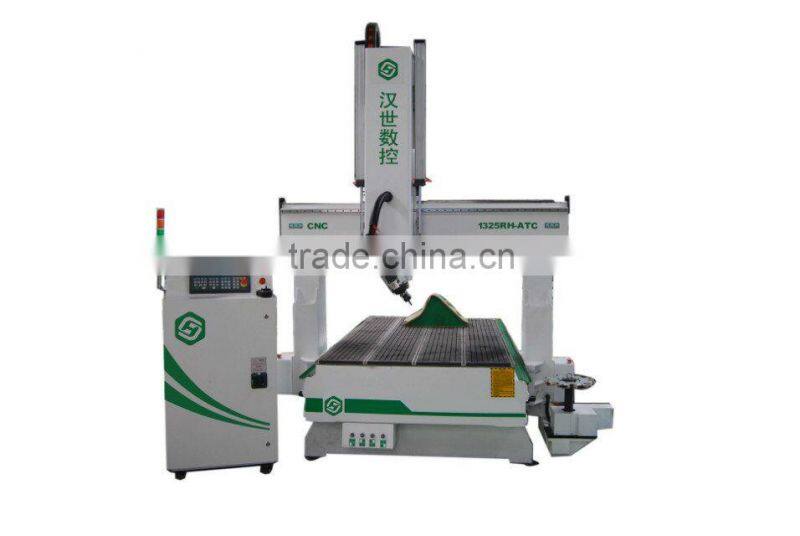

High speed 4 axis cnc kit with cheap price HS1325-ATC machine
1.Product introduction
Syntec Controller, Taiwan Hiwin Linear Rails, Yaskawa Servo Motor and Driver, Italian HSD Air cooling ATC spindle.

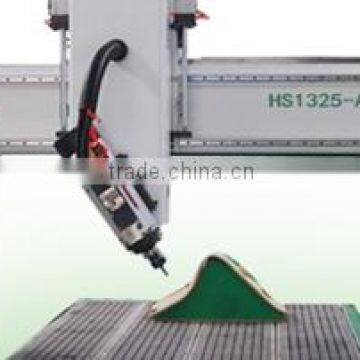

The spindle (B axis) can rotate +-90 degree, for side milling , drilling, cutting, lock slot, very suitable for processing of on different surface carving.
Considering to the customer different sizes required, we can provide HS1530-ATC, HS2030-ATC, HS2040-ATC, ect.
Woodworking: doors , cabinets, plate , office wood furniture, speakers, musical instruments, ect.
Cabinet processing: insulation , plastic and chemical, PCB, ABS, PP, PE and other carbon mixture.Decoration industry : Acrylic , PVC, MDF, plastic , copper ,aluminum and other soft metal flat engraving and milling.
2. Performance Parameter
Parameter |
HS1325-ATC |
X,Y,Z,B Travelling |
1300*2500*450mm*+-90 degree |
Table |
Vacuum and T-slot Table |
Frame |
Welded Structure |
X,Y,Z Drive System |
X,Y Helical rack and pinion, Z Ball screw |
Max Rapid |
35000mm/min |
Max Working Speed |
20000 mm/min |
Spindle Power |
9.0KW |
Spindle Speed |
0-24000RPM |
Driving System |
Yaskawa Servo Motors |
Working Voltage |
AC380V,50/60Hz, 3Ph |
Command Language |
G Code |
Operating System |
Syntec Control |
Software |
UG, Power Mill, Artcame, Type3 |
Gross Weight |
2850KG |
Options |
Vacuum Pump |

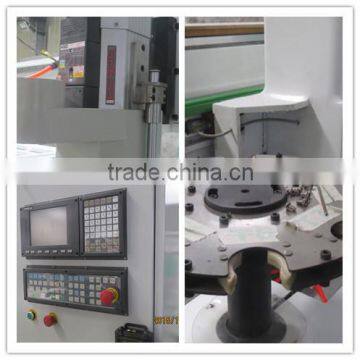

3.Component
4.Packaging and Shipping
5.Our services
- 12 months guarantee for our machines except HSD spindle with 6 months.
- 24 hours technical support by emails, fax or calling.
- Free training in our factory. Also we can dispatch our technician to customers' place if customer agrees to air ticket, food and hotel.
6.Company information
Jinan Hanshi CNC Technology Co., Ltd is a production enterprise which combines research & development, manufacturing and sales. The company specialized in Engraving Machine,Carpentry Engraving Machine,Furniture Engraving Machine,Advertising Engraving Machine,Laser Engraving Machine,Stone Engraving Machine,Glass Engraving Machine,Metal Engraving Machine etc. The team offers technical services computer,CNC machine and industrial automatic products relied on advanced technology and accumulated market experience.
- Our factory
- Exhibition
7.FAQ
- How to choose the best fit for your machine?If you have special request for the machine tool configuration, And the budget is limited, we are very glad to design a specific process solution for you and recommend you a proper cnc machine model.
- What kinds of payment terms are acceptable to you?We usually acceptT/T(30% in advance and 70% before shipment).
- This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e- mail / Skype/ phone
/trade manager online service.
8.Contact
Telephone: 86 531 55572515
Skype:wang.nick01
Jinan Hanshi CNC Technology CO.,Ltd
Address : Jiahui Huanqiu Square B-1107,Tiaoqiao District,Jinan,Shandong province,China.
