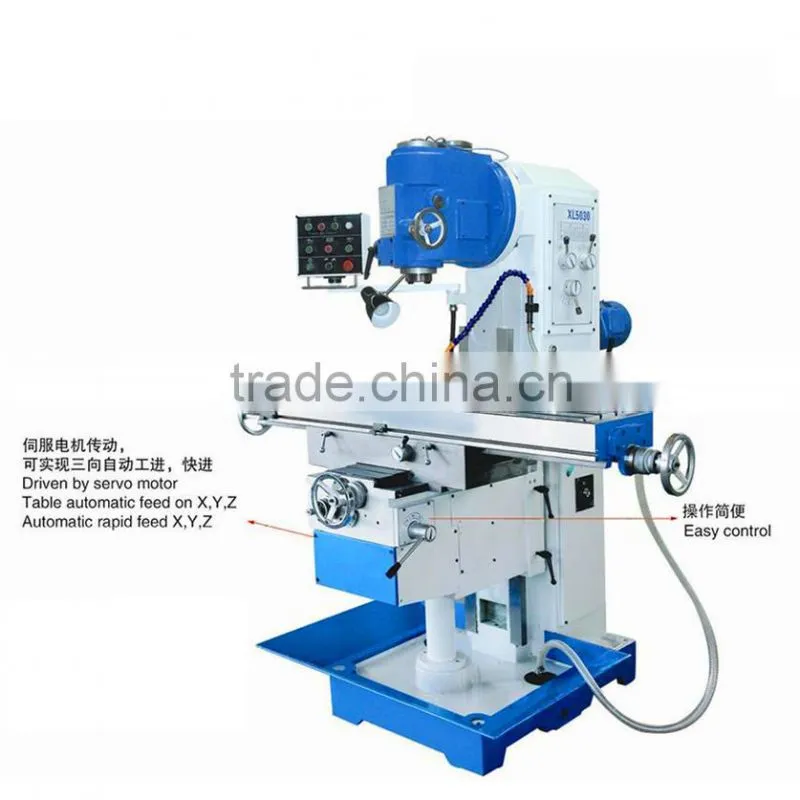

HIGH QUALITY VERTICAL MILLING MACHINE WITH MILLING SPINDLE TAPER ISO 40

Name: HIGH QUALITY VERTICAL MILLING MACHINE WITH MILLING SPINDLE TAPER ISO 40
Brand: TZHISING
SKU: 122086535

US$ 1 - 7,500 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

TZHISING

Tengzhou Hising Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT SHANGHAI PORT TIANJIN PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name TZHISING

Model Number XL5030A

Type Vertical

CNC or Not Normal

Voltage 380V/415V/220V

Power(W) 3KW

Dimension(L*W*H) 1820x1680x1810MM

Weight 1550KG

Certification ISO9001, CE

Warranty 12 MONTHS

After-sales Service Provided Engineers available to service machinery overseas

MAIN FEATURES OF XL5030A HIGH QUALITY VERTICAL MILLING MACHINE WITH MILLING SPINDLE TAPER ISO 40:

1. CAST IRON OF HIGH RIGIDITY.

2. GUIDEWAYS QUENCHED AND FINE GRINDED.

3. DIFFERENT VOLTAGES REQUESTS ACCEPTABLE.

4. DIFFERENT COLORS REQUESTS ACCEPTABLE.

5. OEM SERVICE PROVIDED

6. 3 AXIS AUTOMATIC FEEDING DRIVEN BY SERVO MOTOR

MAIN SPECIFICATION OF XL5030A HIGH QUALITY VERTICAL MILLING MACHINE WITH MILLING SPINDLE TAPER ISO 40:

Specification	Unit	XL5030	XL5030A
Table size	mm	1270X300	1370X300
Table Travel (X/Y/Z)	mm	720/300/400	820/300/400
Distance from spindle nose to work surface	mm	35-435
Spindle hole taper	---	7:24 ISO40
Rapid speed of table (X/Y/Z)	mm/min	1000/1000/750
Table feed (X/Y/Z)	mm/min	Variable
T-slots(NO./Width/Pitch)	mm	3/14/80
Spindle speed range	r/min	12 steps 35-1500
Stroke of spindle quill	mm	70
Distance between spindle axis and column guideway	mm	285
Swivel angle of Vertical milling head	---	±30°
Main motor power	kw	3
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1720X1680X1810	1820X1680X1810
Net weight	kg	1500	1550
