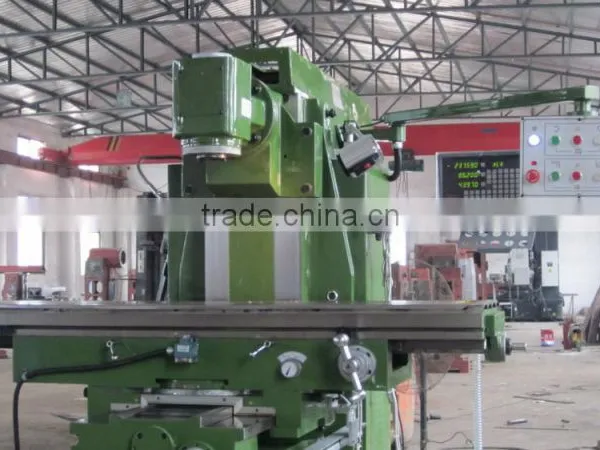

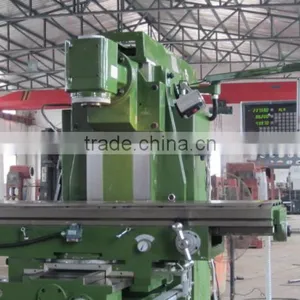

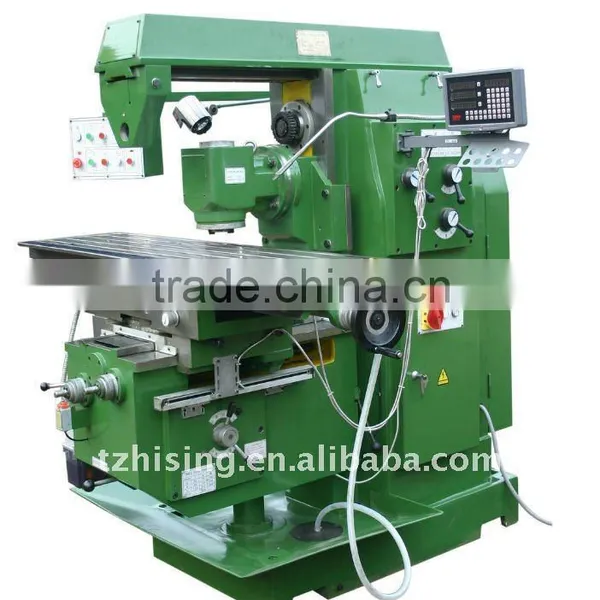

HM1668 Heavy Duty Milling Machine

Name: HM1668 Heavy Duty Milling Machine
Brand: HISING
Price: USD $8,700 - 10,000 / Set

FOB Price

USD $8,700 - $10,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	HISING
Model Number:	HM1668/HM1360	Type:	Vertical	CNC or Not:	Normal
Voltage:	Customer Requirement	Power(W):	5.5kw	Dimension(LWH):	1.9x2.0x2.25M
Weight:	2700kg	Certification:	ISO9001:2008	Warranty:	12 Months
After-sales Service Provided:	Engineers available to service machinery overseas

HM1668 Heavy Duty Milling Machine :

Specification of HM1668 Heavy Duty Milling Machine:

model	HM1668	HM1360
worktable size	400*1700	340*1500
worktable travel	1110400400mm	850330400mm
T-slot of table(number-width-length)	5-20-80mm	3-20-80mm
spindle taper	ISO40(vertical)	ISO40(vertical)
spindle taper	ISO50(horizontal)	ISO50(horizontal)
spindle speed(range/steps)	40-1200rpm	40-1300rpm 12steps
distance from spindle axis to column	0-415mm	430mm
range of worktable travel	30-400mm/min 10steps	30-400mm/min 10 steps
rapid feed of worktable	900mm/min	900mm/min
max.ratation angle of table	±45°	±45°
main motor power	5.5kw	3kw
motor for rapid device of table	1.1kw	0.75kw
N./W	2700kg	1700kg

Tengzhou Hising Machine Tools Co., Ltd.: Contact nameXueyao Pei; Phone86-632-5689986; AddressEast End Of Xingteng Road, Industrail Park
