Specifications

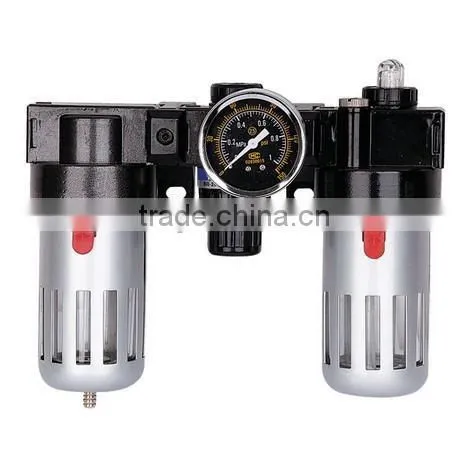

AC/BC Series Three-point Combination1.Air Filter
2.Aluminum Die-casting type
Ordering Code
| BC | 3000 | - | D |
| Model | Joint Pipe Bore | Drian Type | |
| AC:Small Size | 1500:G1/8" | Blank:Differential Drain | |
| BC:Middle Size | 2000:G1/4" | D:Automatic Drain | |
| 3000:G3/8" | |||
| 4000:G1/2" |
Specification
| Bore(mm) | AC2000 | BC2000 | BC3000 | BC4000 |
| Operating Fluid | Air | |||
| Joint Pipe Bore | G1/4" | G1/4" | G3/8" | G1/2" |
| Filtering Element Roughness | 40μ | |||
| Range of Adjustable Pressure | 0.05~0.85MPa | |||
| Max.Adjustable Pressure | 0.95MPa | |||
| Ensured Pressure Resistance | 1.5MPa | |||
| Operating Temperature Range | 5~60℃ | |||
| Capacity of Filter Cup | 15cc | 60cc | ||
| Capacity of Oil Feed Cup | 25cc | 90cc | ||
| Suggested Lubricating Oil | ISO VG 32 or same level oil | |||
| Weight | 0.7KG | 0.9KG | ||
| Body Material | Aluminum Die-casting Forming | |||
| Container Cup Material | PE | |||
| Protective Cup Material | - | Iron | ||
| Filter | AF2000 | BF2000 | BF3000 | BF4000 |
| Regulator | AR2000 | BR2000 | BR3000 | BR4000 |
| Lubricator | AL2000 | BL2000 | BL3000 | BL4000 |
Fenghua Aiphonso Industrial Autaomation CO., LTD
is a professional manufacturer of pneumatic components,solenoid valves, cylinders,fittings and so on. It has more than 100 employees and covers an area of over 4,000 square meters.Technology-oriented, quality-based and continual quality improvement make it capable of passing ISO9001:2000 Quality System Certification .Our Products are well sold in Southeast Asia,the Middle East and other regions.
