Home > Auto, Motorcycle Parts & Accessories > Auto Parts > Auto Compressor > Pneumatic Air Lubricator of AL 1000~5000 Series

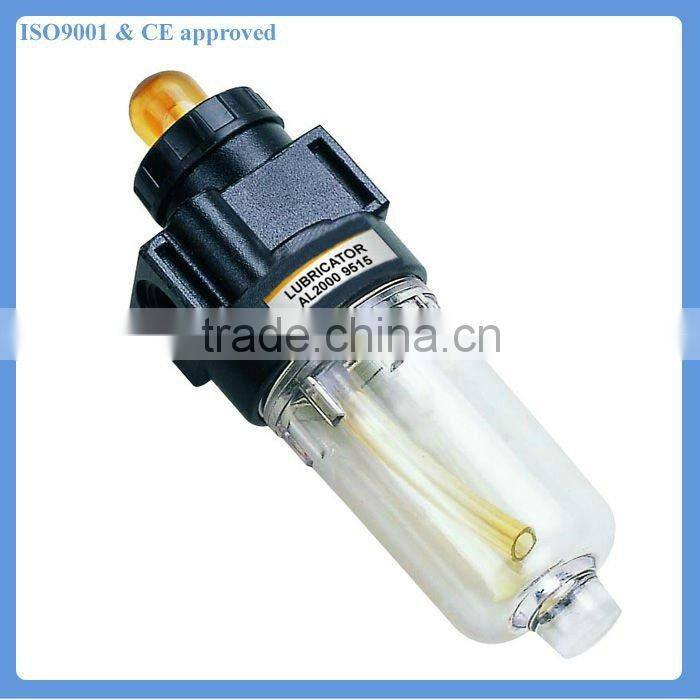

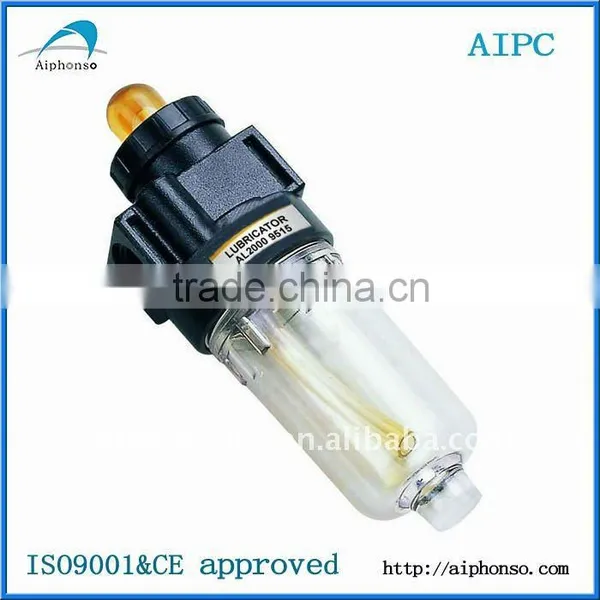

Pneumatic Air Lubricator of AL 1000~5000 Series
US$ 1 - 5
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Model Number:
AL
Brand Name:
Aiphonso
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Air Source Treatment High Pressure Regulator QTYH SeriesUS$ 5 - 100MOQ: 50 Pieces -
Pneumatic Hand Control Valve 4R SeriesUS$ 5 - 10MOQ: 50 Pieces
-
JMJ Series Mechanical Valve Model JMJ-03 With Lock Button TypeUS$ 1 - 10MOQ: 100 Pieces
-
JMJ Mechanical ValveUS$ 5 - 10MOQ: 100 Pieces
-
Three Combination Air Source Treatment Units AC3000-02US$ 7.48 - 11.22MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Model Number
AL
Brand Name
Aiphonso
Specifications
1)Pressure range: 0.05-0.85MPa2)Temperature: 5-60
3)Port size: 1/8", 1/4", 3/8", 1/2", 1"
4)suggested oil: ISO VG32
SMC series air lubricator
1)Pressure range: 0.05-0.85MPa
2)Temperature: 5-60oC
3)Port size: 1/8", 1/4", 3/8", 1/2", 1"
4)suggested oil: ISO VG32 or equivalent
AL - 1000
↓ ↓
Model Port size
AL: mini flow
BL:large flow with cover
Pneumatic Air Lubricator of AL 1000~5000 Series
Model |
AL1000 -M5 |
AL2000 -01 |
AL2000 -02 |
AL3000 -02 |
AL3000 -03 |
AL4000 -03 |
AL4000 -04 |
AL4000 -06 |
AL5000 -06 |
AL5000 -10 |
Rated flow |
95 |
800 |
800 |
1700 |
1700 |
5000 |
5000 |
6300 |
7000 |
7000 |
Jonit pipe bore |
M5 |
G1/8" |
G1/4" |
G1/4" |
G3/8" |
G3/8" |
G1/2" |
G3/4" |
G3/4" |
G1" |
|
Highest working pressure |
1.0MPa |
|||||||||
|
Ensured pressure resistance |
1.5MPa |
|||||||||
Opearting temperature |
5-60centigrade |
|||||||||
Suggested lube |
ISO VG 32 |
|||||||||
Container material |
polycarbonate |
|||||||||
Protective cover |
Not available |
available |
||||||||
