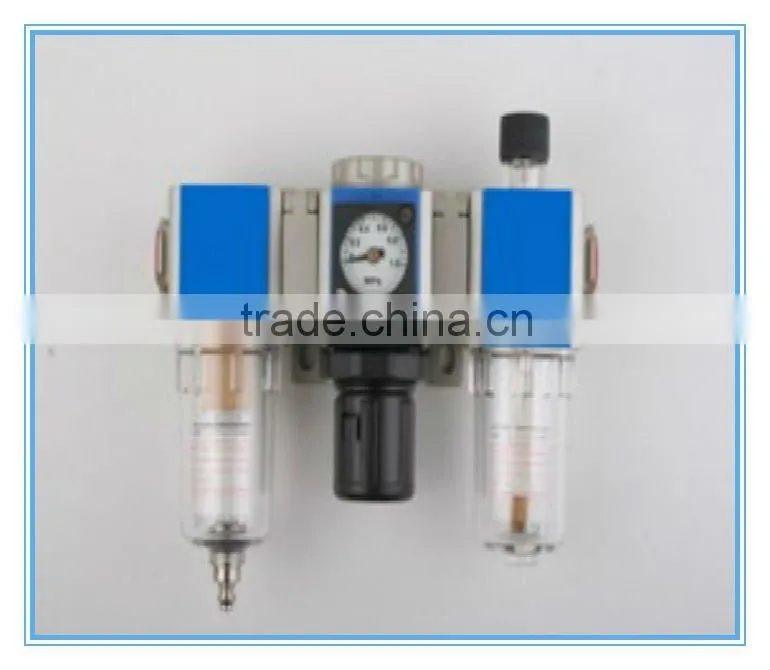

pneumatic filter regulator(air source treatment )GC series filter

Specifications

)Filering grade:40 um
2)pressure range:0.05-0.85MPa
3)Temperature:5-60oC
4)port size:1/8",1/4",3/8",1/2",1"

NEW Air source treatment unit

1)Filering grade:40μm

2)pressure range:0.05-0.85MPa

3)Temperature:5-60^oC

4)port size:1/8",1/4",3/8",1/2",1"

5)rated flow: 2000:500L/m

                  3000:2000L/m

                   4000-04:4000L/m

                   4000-06:4500L/m

                   5000:5000L/m



     GC-  2000      -       D

     ↓          ↓                ↓

Model Port size  blank:manual drain

                         D: Auto-drain



pneumatic filter regulator



Specification

Model	GC200-06	GC200-08	GC300-08	GC300-10	GC300-15	GC400-10	GC400-15
Work medium	Air
Piper caliber	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2	PT3/8	PT1/2
Filter element precision	40u/5u
Pressure regulating range	0.15-0.9Mpa (20-130Psi)
Extreme service pressure	1.0Mpa(145Psi)
Proof   pressure resistance	1.5Mpa(215(Psi)
Available  temperature	5-60
Water cup  capability	10cc		40cc			80cc
Oil  cup capability	25cc		75cc			160cc
Suggest   oil	ISO VG32
Weight	580g		1300g			2358g
