Specifications

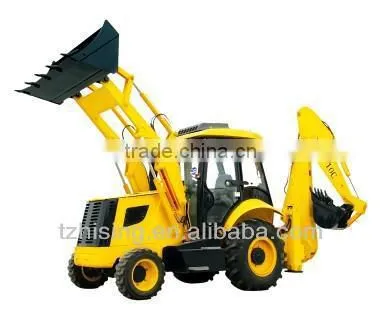

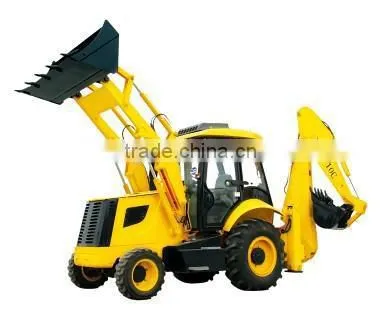

Backhoe Loader(HSZL25-10C):Floating rear axle,the tire has good adhesion,the maachine has good off-road performance.The Specification of Backhoe Loader(HSZL25-10C):
Model |
HSZL25-10C |
Weight(kg) |
6800 |
Engine power KW/speed rpm |
LS4105ZG96 65/2200 |
Anti-bucket capacity(m3) |
0.24 |
Transport dimensions(L×W×H)(mm) |
5100×2200×3470 |
Max.digging radius(mm) |
4900 |
Max.digging depth(mm) |
3350 |
Max.digging height(mm) |
5160 |
Max.unloading height(mm) |
3720 |
Travel speed(Km/h) |
30 |
Hydraulic system pressure(Mpa) |
20 |
Wheel tread(mm) |
Front:1700 Back:1725 |
Wheel base(mm) |
2245 |
Tire models |
Front:10-16.5 Back:14.9-24 |
Maximum loading height(mm) |
4000 |
The largest after discharge height(mm) |
2600 |
Product Fetures:
l Dongfanghong engine,low noise,energy saving,low-carbon environment,high
powerful;
l Control mechanism adopt humanized design,along with continuously variable
transmission,the steering wheel and instrument panel can be up and down and back forth to
adjust,the seat can be adjusted up and down,around a different damping effect can be
selected according to the different weight;
l Excavation device with lateral feature,,may welt digging;
l Floating rear axle,the tire has good adhesion,the machine has good off-road
performance;
l Prevent material sifted,unloading position with bucket automatic set level function,
reduce labor intensity,grater scope of work,the job force more powerful and smooth,the
working efficiency is higher;
l Unique centrally-mounted mining device and e vertical legs,when broken rocks and
the depth of excavation,having a greater stability than the other forms of apparatus for
digging;
l According to the human machine principle design of luxury overall cab,wide vision,seal
shock,the environment is comfortable and safe operation;
l The choice of more than ten kinds of machine tool,hydraulic hammer,vibratory plate
compactor,4 in 1 bucket,clamp and other features more complete;
l Optional Cummins,Deutz engine.
