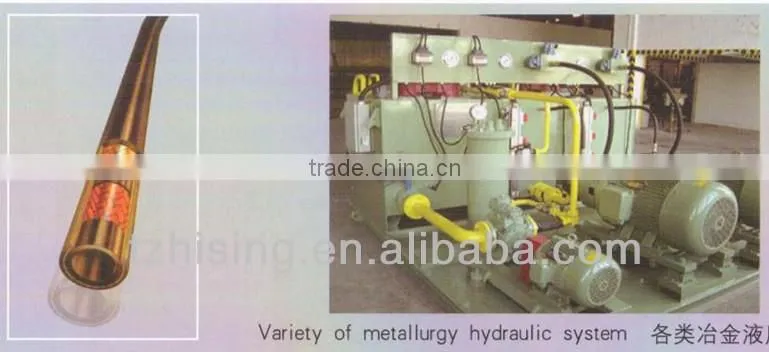

Help CenterType II Steel Wire Braided Hose
Related Products
-
3-type Steel Wire Braided HoseUS$ 5 - 12MOQ: 100 Pieces -
GB 1-type Steel Wire Braided HoseNegotiableMOQ: 100 Pieces
-
GB-II High-pressure Steel Wire Braided HoseUS$ 1.5 - 15MOQ: 100 Pieces
-
SAE Type II Steel Wire Braided HoseUS$ 1.5 - 15MOQ: 100 Pieces
-
Two-story or Four-Wire Spirally-would High Pressure HoseNegotiableMOQ: 100 Pieces
The specification of Type-II Steel Wire Braided Hose:
Specifications for (ply-ram-work pressure MPa) |
Ram mm |
Reinforced Layer Dia mm |
OD mm |
Work pressure |
Test pressure |
Burst pressure |
Min.bending Radius(mm) |
||||||
Min |
Max |
Min |
Max |
Min |
Max |
MPa |
Psi |
MPa |
Psi |
MPa |
Psi |
mm |
|
2-5-60 |
4.5 |
5.5 |
10.6 |
11.8 |
14.2 |
15.6 |
60 |
8694 |
90 |
13041 |
150 |
21735 |
90 |
2-6-60 |
5.5 |
6.5 |
12.7 |
13.7 |
17.5 |
18.5 |
60 |
8694 |
90 |
13041 |
150 |
21735 |
100 |
2-8-50 |
7.5 |
8.5 |
14.9 |
15.9 |
19.5 |
20.5 |
50 |
7245 |
75 |
10868 |
125 |
18113 |
115 |
2-10-40 |
9.5 |
10.5 |
16.9 |
17.9 |
21.5 |
22.5 |
40 |
5796 |
60 |
8694 |
100 |
14490 |
130 |
2-13-30 |
12.5 |
13.5 |
20.7 |
21.7 |
25.5 |
26.5 |
30 |
4347 |
45 |
6521 |
90 |
13041 |
180 |
2-16-21 |
15.5 |
16.5 |
23.7 |
24.7 |
28.8 |
29.5 |
21 |
3043 |
31.5 |
4564 |
63 |
9129 |
205 |
2-19-18 |
18.5 |
19.5 |
26.9 |
27.9 |
31.5 |
32.5 |
18 |
2608 |
27 |
3912 |
54 |
7825 |
240 |
2-22-16 |
21.5 |
22.5 |
29.9 |
30.9 |
34.5 |
35.5 |
16 |
2318 |
24 |
3478 |
48 |
6955 |
280 |
2-25-14 |
24.5 |
25.5 |
33.1 |
34.3 |
38.4 |
39.6 |
14 |
2029 |
21 |
3043 |
42 |
6086 |
300 |
2-32-11 |
31.8 |
32.3 |
40.4 |
41.6 |
45.0 |
45.5 |
11 |
1594 |
16.5 |
2391 |
33 |
4782 |
420 |
2-38-10 |
37.8 |
38.3 |
46.4 |
47.6 |
51.0 |
52.5 |
10 |
1449 |
15 |
2174 |
30 |
4347 |
500 |
2-51-8 |
50.8 |
51.3 |
59.4 |
60.6 |
63.4 |
64.5 |
8 |
1159 |
12 |
1789 |
24 |
3478 |
630 |
2-64-5 |
63.8 |
65.3 |
73.4 |
73.6 |
76.2 |
77.5 |
5 |
725 |
7.5 |
1087 |
15 |
2174 |
790 |
2-76-4 |
75.8 |
77.5 |
85.4 |
86.6 |
89.2 |
90.5 |
4 |
580 |
6 |
895 |
12 |
1789 |
920 |
2-89-3 |
89.7 |
90.6 |
98.4 |
99.6 |
104.0 |
105.5 |
3.5 |
507 |
5.25 |
761 |
10.5 |
1521 |
1060 |
2-102-3 |
101.6 |
103.8 |
111.0 |
112.6 |
116.0 |
117.5 |
3 |
435 |
4.5 |
652 |
9 |
1304 |
1200 |
Structure:Rubber hose use synthetic cement which good in oil-proof and waterproof as hose
lining;two layer of high-strength steel wire braided layer as the reinforcing layer.Let synthetic cement which good in oil-proof and resistance to weather aging as outer layer.
Application:
Suitable for coal industry integrated mining machinery and machinery Industrial Hydraulic Equipment.It can
transport a certain pressure hydraulic fluid,such as alcohol,hydraulic oil,fuel oil,lubricating oil,emulsion,
hydrocarbons.
Operating temperature range according to different working media are divided into:
Hydraulic oil,fuel oil,lubricating oil -40~50°C.
Water,emulsion below 80°C
Carried standard:Q/Z FDO1---2008 2 model.
