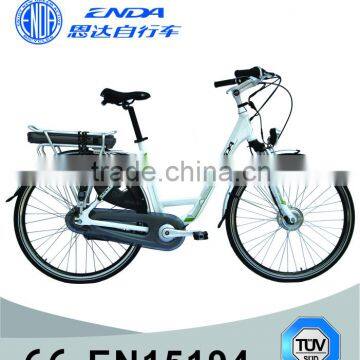

28 inch URBAN Electric Bike - TDB28S

28 inch URBAN Electric Bike - TDB28S

Electric Assist System

Sensor 1:1 intelligent Speed Sensor, with waterproof plug..

Display Kingmeter, LCD, with waterproof plug.

Motor Motor, Front, 8-Fun, Brushless, black,with waterproof plug..

Controller 36V/250W, with waterproof plug.

Battery Lithium 36V/10Ah, with Intelligent Protection System and anti-theft lock

Charger: Li-ion battery charger, GS approval

Performance

Max Speed: 25 km/h.

Range: >40 kms.

Climbing Degree: ≤8 degrees..

Run Mode: Pedalling Assist Mode..

Recharging Time: 6-8 hours..

Charge Cycle Times: >500 times..

Load Capacity: 100 kg.

Specification

Frame Set

Frame 700C L type E-bike, outer-8 speeds, Aluminium frame, TIG welded W/battery bracket and Pivots

Fork Suntour, Aluminium, for oil pressure disc brake, 700c Susp fork, lockout

Cockpit

Handlebar Aluminium, Black

Stem Aluminium, adjustable, Black

Headset SATORI, Aluminium cover, Integrated, CP

Grips Velo, Grey/Blk

Saddle SR, Comfort, Black

Seatpost PROMAX, Aluminium, black, W/clamp.

Seat clamp QR Alloy clamp w/ QR, Black

Brakes

Brakes F/R: Zoom, oil pressure disc brake

Brake lever Zoom, oil pressure disc brake lever

Brake cable and Casing 2P Black

Wheels

Front Motor Motor, 8-Fun, 13G*36H, 36V/250W, Brushless, black,with waterproof plug

Rear Hub Access, bearing type disc brake hub

Spokes 13G, Stainless, w/Brass nipple

Rims Aluminum, 700C, Black

Tires Kenda, 700C*38C Black, with reflective stripe, A/V

Transmission

Shifter Shimano, M310, Right side, thumb shift for outer-8 speeds

Front Derailleur Nil

Rear Derailleur Shimano, Index, for 8-speed,blk

Crankset Prowheel, 1/2*3/32*42T*170mm Steel black chainring,alloy crank

Chaincover Half chaincover, transparent

Bottom bracket One-piece axis

Chain KMC, 1/2 *3/32*112L, CP

Pedals Alloy, non slip, with BS reflector

Extras

Kickstand Black, adjustable, Center mounted

Fenders SKS, F/R, plastic/alloy, W/stays

Carrier 700C, Alloy, Fixed with Phylion battery case

Lock AXA lock

Bell Alloy cover, black

Strap Black/White

Decals ENDA logo / Customer's logo

Manuals Standard Owners Manual (Need to be ordered if needs customer's own user manual)

Carton and packing 5 layer

Paint Single basic color, to be ordered

Light Front Light: High power LED Headlight(36v),silver color, CE approval, with waterproof plug

Tools Screw driver, Fixed mutil functional wrench for 8-10; 9-11; 13-15. Allen-key for 2.5mm/3mm/4mm/6mm
