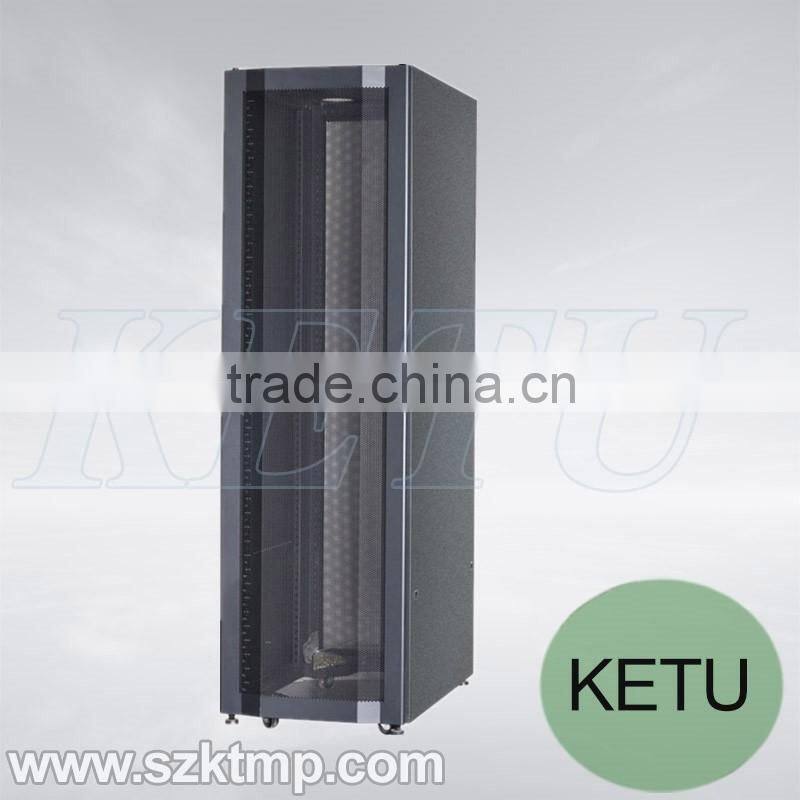

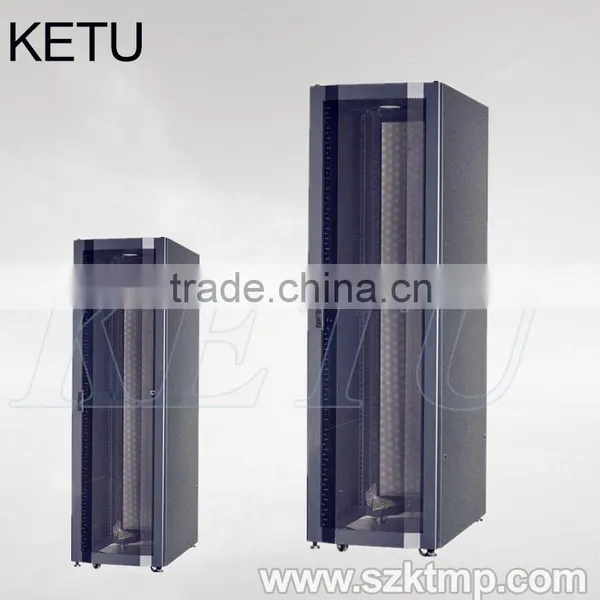

mesh door black web server cabinet
Model: KTMP-SF-17
Specification :
Model |
800 x 1000 47u |
Capacity |
47u |
Standard |
Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92 standard, compatible with 19 inch international standard, metric system and ETSI standard. |
IP grade |
IP20 |
Color |
RAL 9004 (Black) or RAL 7035(Gray) |
Thickness: |
Mounting profile: 2.0mm, others: 1.2mm to 1.5mm |
Material: |
High quality SPCC (cold rolled steel) |
Static Loading Capacity: |
1000Kgs |
Packing |
assembled: plastic bag, then covering corrugated case,wooden case for optional |
Surface finish: |
Degreasing, Pickling, Phosphating, Cleaning, Drying, Powder coating |
Door |
Mesh door |
Features :
1. Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92 standard, compatible with 19 inch international standard, metric system and ETSI standard.
2. The frame is made of nine folds profile and welded by special 3-Tees .The whole structure is stable and the static loading is 1000Kgs
3. Excellent ventilation & heat dissipation. High density perforated single front door & double open steel rear doors make the vented area no less than 70% of the door area. The front door is optional.
4. Side panels adopt quick open latches designing, which makes the disassembly & assembly process conveniently.
5. Support feet (M12) and castors can be installed at the bottom simultaneously, ensuring convenient movement and stable placement.
6. Door hinges are interchangeable; cable entries on top panel are equipped with rubber covers. Fan unit is optional for active cooling solution.
7. The inner installation depth is adjustable (take 25MM as unit); the height of the capacity is adjustable (take 1U as unit).
8. Customizations based on customer requirements are welcomed; various kinds of specifications and structure adjustment are available.

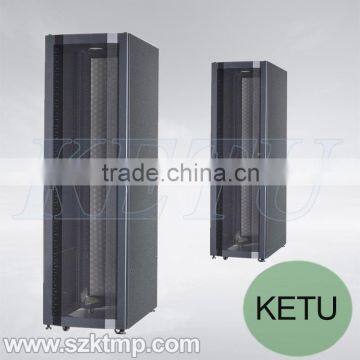

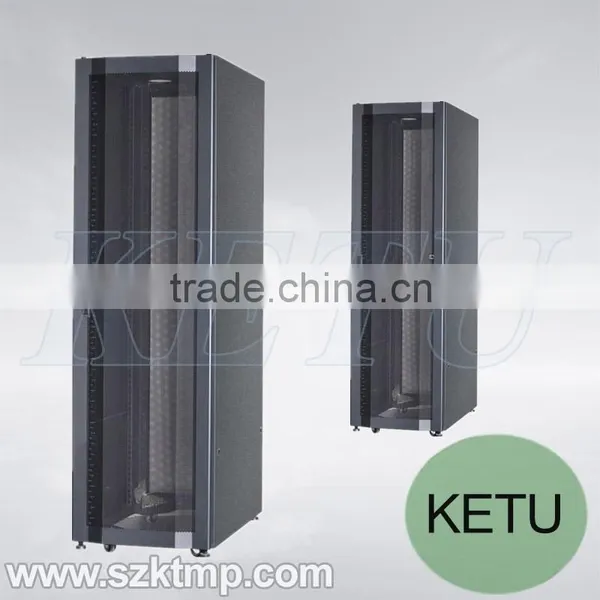

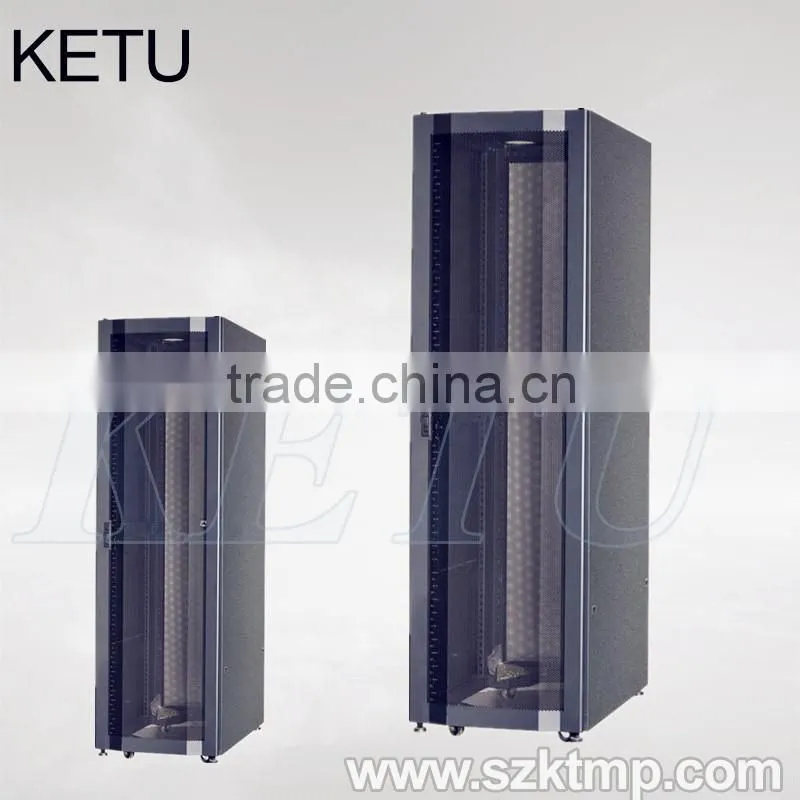

Details Show :

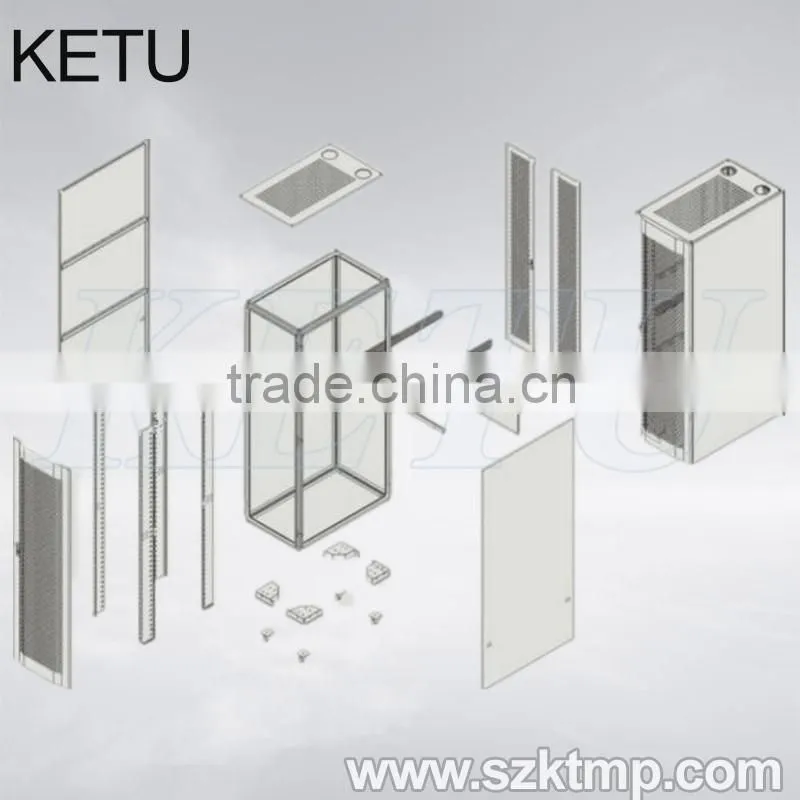

Main Parts :
No. |
Name |
QTY |
Material |
Remarks |
|
600w |
800w |
||||
1 |
Frame |
1 |
1 |
SPCCT=1.5 |
9 folds profiled bracket |
2 |
Front door |
1 |
1 |
SPCCT=1.2 |
Flat door with vented holes , optional |
3 |
Front door lock |
1 |
1 |
—— |
MS831/optional |
4 |
Left rear door |
1 |
1 |
SPCCT=1.2 |
Flat door with vented holes , optional |
5 |
Rear door lock |
1 |
1 |
—— |
M818/optional |
6 |
Right rear door |
1 |
1 |
SPCCT=1.2 |
Flat door with vented holes , optional |
7 |
Top cover |
1 |
1 |
SPCCT=1.2 |
Fan tray is available |
8 |
Side Panel |
2 |
2 |
SPCCT=1.2 |
|
9 |
Castor setup panel |
2 |
2 |
SPCCT=2.0 |
|
10 |
Castor |
4 |
4 |
—— |
|
11 |
Support feet |
4 |
4 |
—— |
M12 |
12 |
Mounting beam |
4/2 |
12/8 |
SPCCT=1.5 |
Below 27U(include 27U):2pcs, 800w cabinet:12pcs |
13 |
Mounting profile |
4 |
4 |
SPCCT=2.0 |
|
14 |
Spacer |
no |
12/8 |
SPCCT=2.0 |
Only for 800W cabinet / Below 27U(include 27U):8pcs |
15 |
Cable management holder with cover |
no |
2 |
SPCCT=1.2 |
Only for 800W cabinets |
16 |
Bottom panel |
1 |
1 |
—— |
Optional accessories |
Advantage :
1.Secure,firm and reliable
2. Easy to maintain equipment
3. Two Packing Ways:
1).Assembly packing to save labour cost, ready to resell or use
2).Disassembly packing to save space and transport cost, easy to assemble
4.Certification: ISO 9001:2000
5. OEM/ODM service available
Other Series :

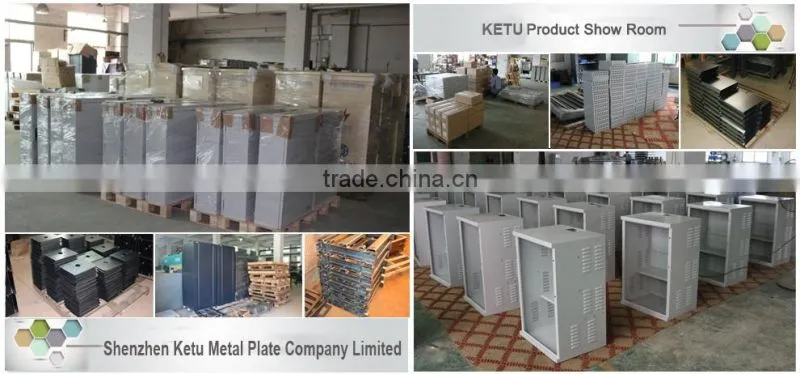

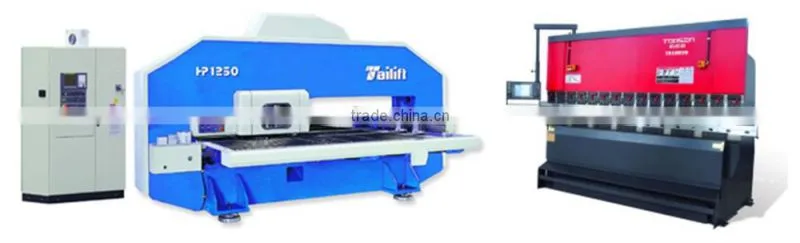

Company Introduction :
Shenzhen KTMP Technology Company Limited is a professional sheet metal products
manufacturer . As a skilled manufacturer in sheet metal processing industry for 12 years , KTMP is a
company with the whole line of designing , producing , selling and trading a standard series of
products while continually making strides in new product development . Welcome to OEM all kinds of
network/ server cabinets .
Certification :
FAQ :
Your satisfaction is our greatest feedback.
Q1:If OEM available?
A:Yes, we provide all of our products OEM.
Q2:What are your company normal payment?
A:We accept L/C; T/T; D/P; D/A; Western Union;
Q3: What are your company normal export terms?
A:We normally export with DHL EMS FedEX UPS and so on.
Q4:Is sample available?
A:Sample is available.
