Help CenterFree Standing 37u Metal Network Cabinet
Related Products
free standing 37u metal network cabinet
Model: KTMP-NF-5
Features :
-Mounting profile 2.0mm,others 1.20mm-1.50mm
-High-Density holes front door with 180 Over Turing Degree
-High-Density Vented square holes Rear Door (Ventilation Rate Above 75%) with revolving handle lock
-Single back door or double back door (saving space) with mesh is available
-Side Panel: Removable Side Panel, easy to Install and Maintain (Lock Optional)
-Vented front and sides for cooling
-SPCC cold-rolled steel frame structure to built well and sturdy
-Zinc Plated mounting profile with U and figure for easily equipment setting-up
-Adjustable feet and heavy duty castors are supplied
-Cable entry on the top cover and bottom panel with adjustable sizes
-Optional installation of plinth for extra ventilation and ease of cabling
-Efficient and reliable cabinet connection with use of baying kit
-Key locks and accessory are available
-Secure, firm and reliable
-water proof,thief-proof,dust-proof with high good ventilation and heat dissipation

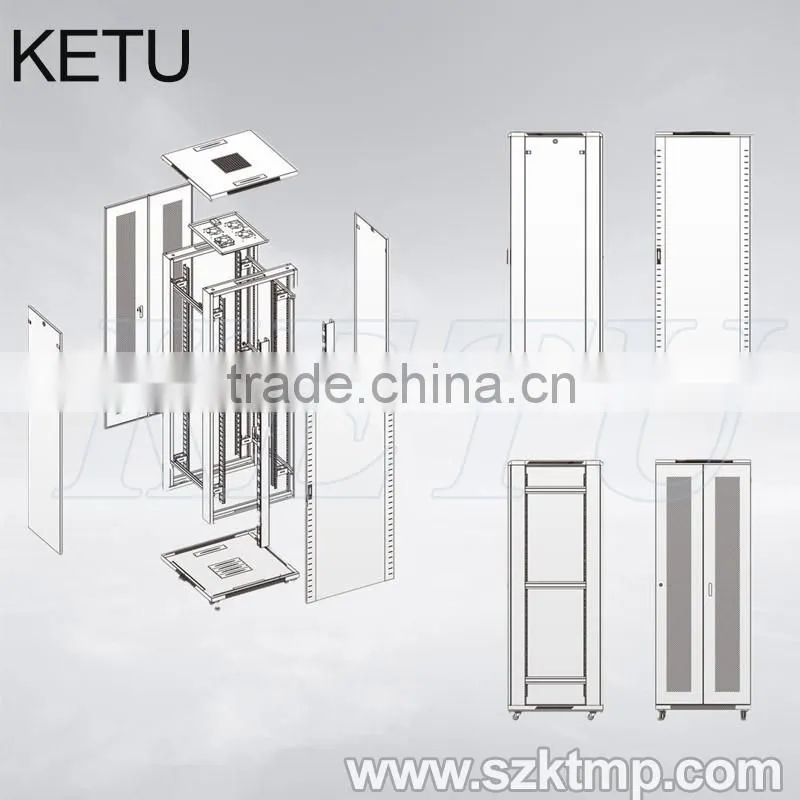

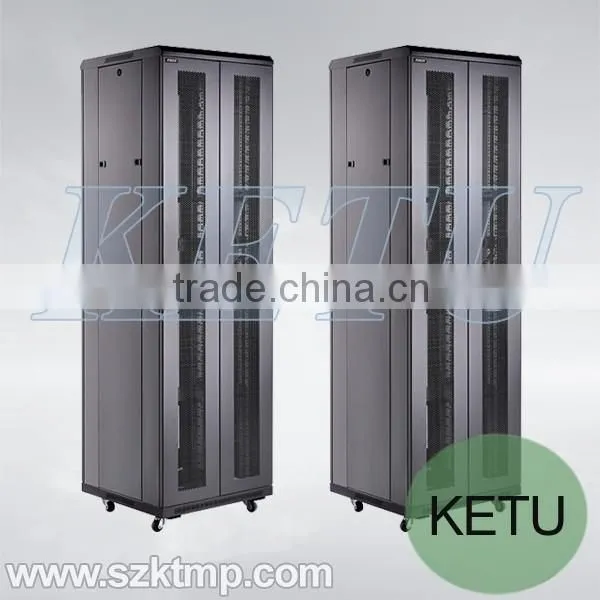

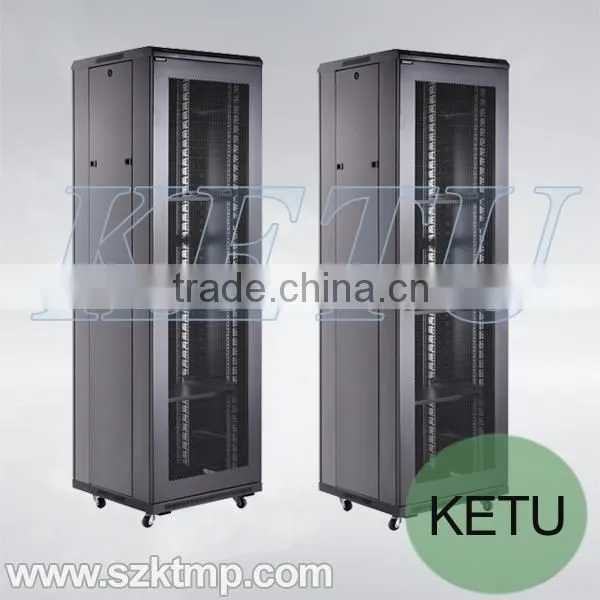

Picture Show :
Main Parts :
No. |
Component name |
Quantity |
Unit |
Material |
Remark |
1 |
Top Cover |
1 |
pc |
SPCC cold rolled steel T1.2 |
|
2 |
Fan Unit |
1 |
pcs |
SPCC cold rolled steel T1.2 |
With 2/4 fans |
3 |
Mounting Profile |
4 |
pcs |
Zinc plated T2.0 |
|
4 |
Mounting rails |
6 |
pcs |
SPCC T1.5 |
4pcs for lower 32U |
5 |
Frame |
2 |
pcs |
SPCC T1.2 |
|
6 |
Lock |
2 |
pcs |
|
handle lock |
7 |
Front Door |
1 |
pc |
SPCC T1.2 |
vented mesh |
8 |
Rear Door |
1 |
pc |
SPCC T1.2 |
vented mesh |
9 |
Side Panel |
2 |
pcs |
SPCC T1.2 |
Removable |
10 |
Bottom Panel |
1 |
pcs |
SPCC T1.2 |
|
11 |
Screw |
20 |
pcs |
--- |
40pcs for over 32U |
12 |
Square Nut |
20 |
pcs |
--- |
40pcs for over 32U |
13 |
Castor |
4 |
pcs |
Steel |
|
14 |
Adjustable leveling feet |
4 |
pcs |
Steel |
|
15 |
Other components are available according to request |
||||
Remark: we mainly produce the customized sheet metal parts, all the products display here are to show our business scope only. Thanks!
Advantage :
1. Rich experience on manufacture sheet metal industry
2. High quality material , exquisite design in every details
3. Secure , firm and reliable , Easy to maintain equipment
4. Two packing ways :
(1) Assembly packing to save labour cost , ready to resell or use
(2) Disassembly packing to save space and transport cost , easy to assemble
5. OEM/ODM service available
Company Introduction :
Shenzhen KTMP Technology Company Limited is a professional sheet metal products
manufacturer . As a skilled manufacturer in sheet metal processing industry for 12 years , KTMP is a
company with the whole line of designing , producing , selling and trading a standard series of
products while continually making strides in new product development . Welcome to OEM all kinds of
network/ server cabinets .
